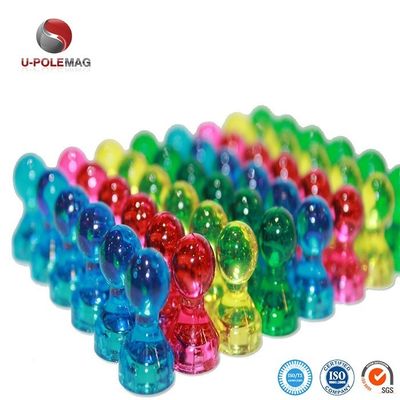

Neodymium Magnet Push Pin Magnets for Fridge Heavy Duty Moulding Processing Service

Large Image : Neodymium Magnet Push Pin Magnets for Fridge Heavy Duty Moulding Processing Service

Product Details:

Place of Origin:	Fujian, China
Brand Name:	U-POLEMAG

Payment & Shipping Terms:

Minimum Order Quantity:	500 pieces
Price:	$0.12/pieces 500-1999 pieces
Packaging Details:	35x25x15cm standard exporting cartons package for magnet for N52 D32x2mm Disc Magnets
Supply Ability:	2000 Ton/Tons per Year Customized Ferrite magnet disc used for industrial field

Contact Now

Neodymium Magnet Push Pin Magnets for Fridge Heavy Duty Moulding Processing Service

Description

Type:	Permanent	Composite:	Neodymium Magnet
Shape:	Pot / Cup Shape, Cylindrical	Application:	Industrial Magnet
Tolerance:	±0.05mm	Processing Service:	Cutting, Punching, Moulding
Grade:	NdFeB	Delivery Time:	8-14 Days
Color:	8 Assorted Colors	Material:	Plastic+NdFeB
Packaging:	Custom	Usage:	School Home Office
Each Set:	Custom	MOQ:	100 Boxes
Port:	Shanghai/xiamen Port

Products Description

We are a professional manufacturer of magnets, committed to producing high-quality neodymium magnets.

Our products have the following characteristics:

1. Strong magnetic force - can support and attract large weight loads.

2. High temperature stability - can maintain stable magnetic properties even in high-temperature environments.

3. Long service life -can be used continuously in different environments for many years without failure.

4. Ultra-fine processing accuracy - can be processed into various shapes and sizes through advanced production technology and equipment with high precision.

Our neodymium magnet products include square, arc, cylindrical, ring, fan-shaped, ball-shaped, and other shapes, covering all possible application areas such as motors, generators, compressors, sensors, and medical equipment. We can provide customized production according to the actual needs of customers, meeting international quality standards and providing perfect after-sales service.

We have 20 years of production experience and reputation, and we welcome you to contact us for more information.

Table of Magnet Properties

Grade	Residual magnetism			Coercive field strength							Energy product	Max. operational temp.
		Br			bHc			iHc			(BxH)max	Max. operational temp.
		Gauss (G)	Tesla (T)	kOe	kA/m	kOe	kA/m	MGOe	kJ/m³	°C
N30	10800-11200	1.08-1.12	9.8-10.5	780-836	≥12	≥955	28-30	223-239	≤80
N33	11400-11700	1.14-1.17	10.3-11	820-876	≥12	≥955	31-33	247-263	≤80
N35	11700-12100	1.17-1.21	10.8-11.5	860-915	≥12	≥955	33-35	263-279	≤80
N38	12200-12600	1.22-1.26	10.8-11.5	860-915	≥12	≥955	36-38	287-303	≤80
N40	12600-12900	1.26-1.29	10.5-12.0	860-955	≥12	≥955	38-40	303-318	≤80
N42	12900-13200	1.29-1.32	10.8-12.0	860-955	≥12	≥955	40-42	318-334	≤80
N45	13200-13700	1.32-1.37	10.8-12.5	860-995	≥12	≥955	43-45	342-358	≤80
N48	13700-14200	1.37-1.42	10.8-12.5	860-995	≥12	≥955	45-48	358-382	≤80
N50	14000-14600	1.40-1.46	10.8-12.5	860-995	≥12	≥955	47-51	374-406	≤80
N52	14200-14700	1.42-1.47	10.8-12.5	860-995	≥12	≥955	48-53	380-422	≤65

Magnet Plating and Coating Options

The following is a list and description of common plating options for custom magnets.Why do magnets need to be plated?

★ Oxidization (Rust)
NdFeB magnets will oxidize(rust) if left exposed. When a plating wears down or cracks, the exposed area will oxidize. An oxidized area will not result in complete degradation of the magnet, only the oxidized area will lose its strength. However the magnet will lose some structural integrity and become more susceptible to breakage.

★ Durability
Depending on shape, permanent magnet substrate is brittle. A multilayered metal plating like nickel or zinc improves the magnets resistance to chipping and wear, particularly around corners.

★ Harsh Environments
Platings vary in their tolerance of different harsh chemicals and abrasion. Salt and humidity in regions near the ocean are
commonly overlooked when selecting a plating. Be sure to consider the magnets environment when selecting a plating.

The most common type of plating for neodymium magnets Nickel (Ni-Cu-Ni) Intended for indoor use. It has proven to be very resilient when subjected to normal wear and tear. However it will corrode oudoors in prolonged exposure to salt water, salty air,or harsh chemicals.

Magnetization Direction

A Magnetic field is an invisible flux moving from one end of the magnet to the other. Shown in Figure1. The flux consists of
moving or spinning electrically charged particles invisible to the eye. If the max working temperature meet the requirement ,permanent magnets can retain the magnetic field for very long time even forever. Magnets have potential energy which means that they have the ability to conserve energy. The magnet will display or release some of its conserved energy when pulling towards or attaching to something then conserve or store the energy that the user exerts when pulling it off.

Every magnet has a north seeking and a south seeking face on opposite ends.

Application Fields

Neodymium magnets are known for their exceptionally high magnetic properties and are widely used in various industries due to their strength, durability, and versatility. Here are some of the application areas where neodymium magnets are commonly used:

Electronics industry - neodymium magnets can be found in almost all electronic devices including headphones, microphones,speakers, sensors, hard drives, and computer printers. These magnets help amplify sound and store data.

Automotive industry - neodymium magnets are used in various motor and machinery components including starters, alternators, and electric power steering systems. They provide a high level of power in a small, lightweight package.

Medical equipment - neodymium magnets can be found in devices such as MRI machines, which use the magnets to create a magnetic field to create detailed images inside the body.

Industrial applications - neodymium magnets are used in various industrial applications such as conveyor systems, lifting
equipment, and metal detectors.

Renewable energy - neodymium magnets play an essential role in wind turbines and other renewable energy generators, where they convert mechanical energy into electrical energy.

Household appliances - neodymium magnets are also used in various household appliances, including refrigerators, vacuum cleaners, and washing machines.

Aerospace industry - neodymium magnets are used in satellites, airplanes, and other aerospace vehicles due to their strength and light weight.

Why Choose Us

About U-POLEMAG

U-Polemag Industry Ltd founded in 2004, is a high technology company engaged in reaching, developing, manufacturing and marketing magnets and their application devices with ISO9001,ISO14001,ISO18001 and ISO/TS16949 certificates.

As a supplier of magnetic material and devices, by taking markets as the orientation and customers’ demands as criterion,
U-polemag continuously improves technologies and products, and insists in providing customers with first-class goods and services.

With years of development and accumulation, we can supply high quality neodymium magnets ,samarium cobalt magnets, ceramic magnets and various of customized magnetic application products such as magnetic holders magnetic coupling, motor parts, speaker divers and so on

FAQ

Q: May we get a sample of the product? How to ship and how to pay ?

A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.

Q: What magnet materials are available?

A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.

Q:Can you supply custom magnets?

A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .

Q:Do you have a minimum purchase order?

A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .

Q: How many days does it take to ship my order?

A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .

Q:What elements affect the magnet price ?

A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
