92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter

92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter

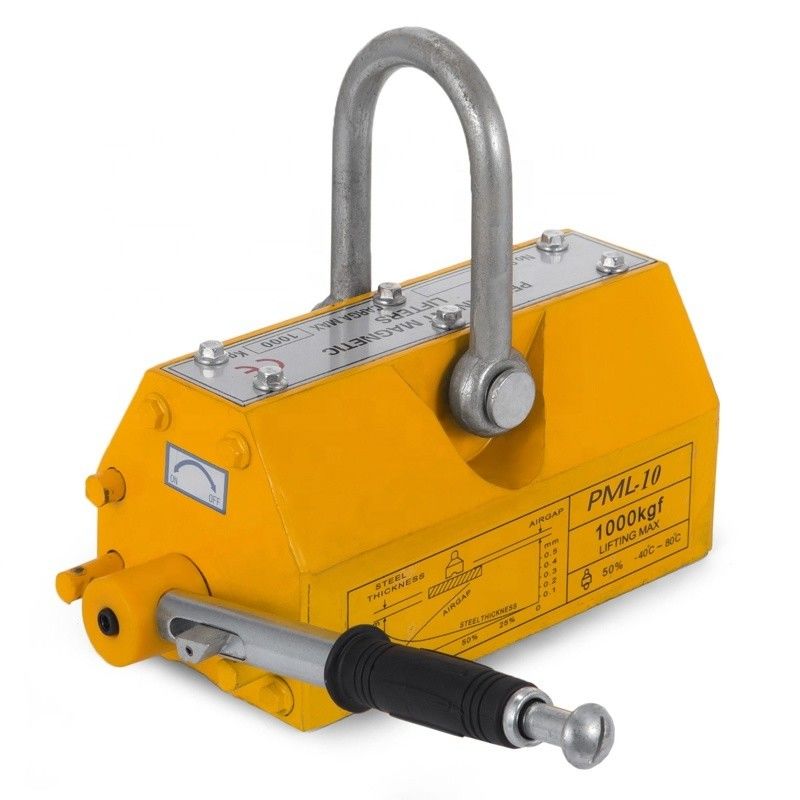

Large Image :  92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: $99.00/sets 5-49 sets
Packaging Details: 35x25x15cm standard exporting cartons package for magnet for N52 D32x2mm Disc Magnets
Supply Ability: 2000 Ton/Tons per Year Customized Ferrite magnet disc used for industrial field
Contact Now

92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter

Description
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company Showroom Location: United States, Germany
Video Outgoing-inspection: Provided Machinery Test Report: Not Available
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Bearing Condition: New
Dimension(L*W*H): 92X67mm Warranty: 1 Year
Weight (KG): 3 Kg Product Name: Magnetic Lifter Lifting Magnet
Application: Lifting Metal Material: Permanent Neodymium Magnets
Feature: Safety Lift OEM: Accept
Keyword: Permanent Lifting Magnets MOQ: 1 Set
Port: Shanghai/xiamen Port

92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 0
Products Description
Product Name:
Magnetic Lifter Lifting Magnet
Material：
Steel, Rubber, Neodyimum magnet, Aluminium
Size：
Contact customer service
Advantage:
CE certificated, No electric power, long lift, 3.5 times safety ratio. 100% pull test
Application:
Warehouse, Factory plant, Wharf
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 1
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 2


Model
Rated Lifting Strength
(kgf)
Cylindrical lifting strength
(kgf)
Max.pull-off strength
(kgf)


L


B


H


R
Operation Temperature
(℃)
Dead weight
(kg)
PML-100A
100
50
350
64
92
67
147
<80℃
3
PML-300A
300
150
1050
92
162
118
225
<80℃
7.5
PML-600A
600
300
2100
122
233
118
230
<80℃
23
PML-1000A
1000
500
3500
176
272
163
321
<80℃
55.5
PML-2000A
2000
1000
7000
231
391
212
445
<80℃
125
PML-3000A
3000
1500
10500
312
499
252
505
<80℃
220
PML-6000A
6000
3000
21000
442
621
210
548
<80℃
440
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 3
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 4
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 5

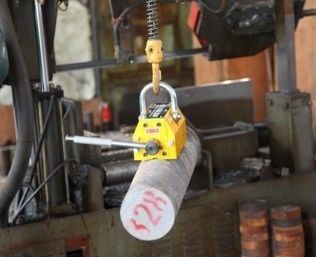

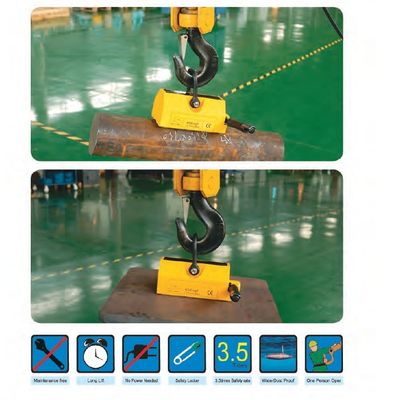

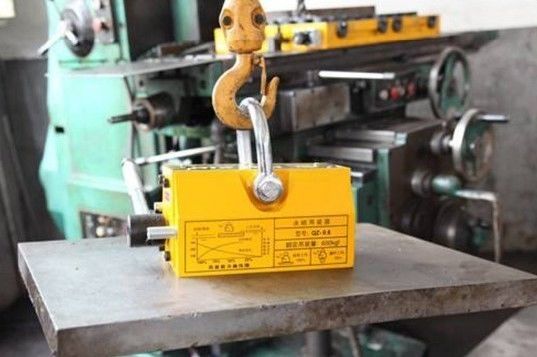

Application
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 6
Packaging
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 7
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 8
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 9
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 10
Certification
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 11
About U-POLEMAG
VR
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 12
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 13
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 14
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 15
U-Polemag Industry Ltd founded in 2004, is a high technology company engaged in reaching, developing, manufacturing and marketing magnets and their application devices with ISO9001，ISO14001，ISO18001 and ISO/TS16949 certificates.

As a supplier of magnetic material and devices, by taking markets as the orientation and customers’ demands as criterion,
U-polemag continuously improves technologies and products, and insists in providing customers with first-class goods and services.

With years of development and accumulation, we can supply high quality neodymium magnets ,samarium cobalt magnets, ceramic magnets and various of customized magnetic application products such as magnetic holders magnetic coupling, motor parts, speaker divers and so on
92X67mm Lifting Magnets 100kg 600kg 1000kg 3000kg Manual Permanent Magnetic Lifter 16
FAQ

Q: May we get a sample of the product? How to ship and how to pay ?

A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.

Q: What magnet materials are available?

A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.

Q:Can you supply custom magnets?

A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .

Q:Do you have a minimum purchase order?

A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .

Q: How many days does it take to ship my order?

A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .

Q:What elements affect the magnet price ?

A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
