Product Details:
|
| Customized Support: | OEM, ODM | Power: | Electric |
|---|---|---|---|
| Number Of Jaws: | Other, 6 | Material: | Stainless Steel |
| Product Name: | Permanent Magnetic Chuck | Size: | 300x600mm Or Custom |
| Magnet Material: | ALNICO | Each Pole Size: | 50x50mm |
| Each Pole Magnetic Force: | More Than 380kgf | Poles Number: | Customized |
| Power Cable Length:: | 3M | Control Unit: | Electro |
| Application: | CNC Machine, Surface Grinder | Port: | Xiamen |

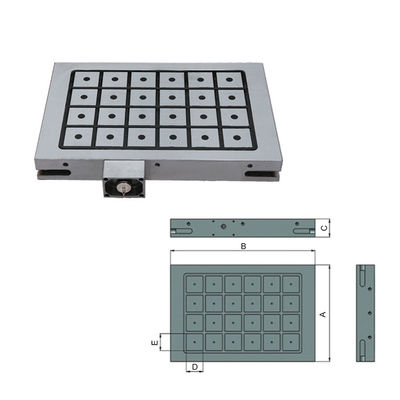

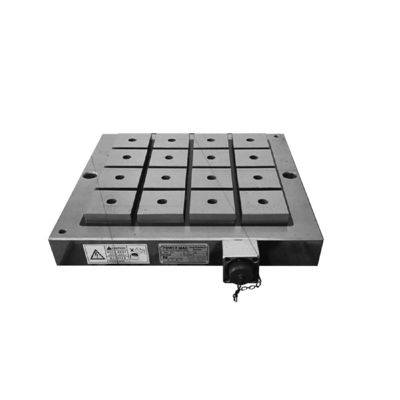

Permanent Magnetic Chuck is a square body, which is composed of base, magnet assembly, movable frame assembly, eccentric shaft and other parts. The groove between the magnets is sealed by epoxy resin. Rare earth magnet is matrix distributed around the conducting magnet and movable frame assembly. By rotating the eccentric shaft and moving the movable pole core frame assembly, the magnetic circuit is connected or disconnected between the suction cup and the work, so as to achieve the purpose of holding or releasing work.
Product Name | Permanent Magnetic Chuck |
Magnet type | Permanent Alnico magnet |
Size | 300x600mm or custom |
Each pole size | 50x50mm |
Each pole magnetic force | More than 380kgf |
Assembly | Power cable, controller |

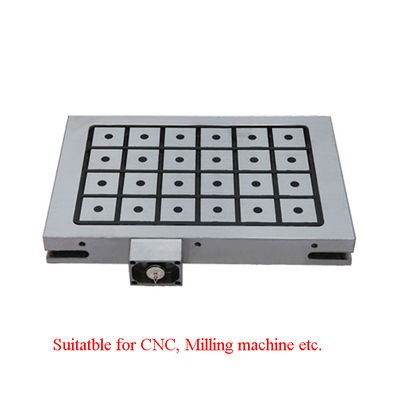

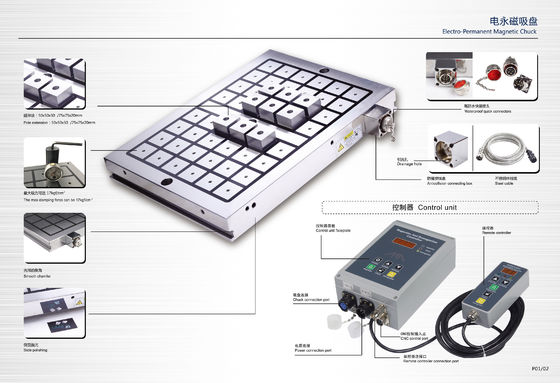

Used | Metal cutting, CNC machining center and Milling machine |
Model | 50 Series | 75 Series | ||
Pole size | 50x50mm | 75X75mm | ||
Magnetic force of each pole | 380kgs | 750kgs | ||
Thickness of each plate | 53mm※ | 53mm※ | ||
Max.working temperature (mold contact face) | 70°C※ | 70°C※ | ||
Depth of magnetic flux | 12mm | 18mm | ||
Standard voltages | 220V 380V 50/60Hz | 220V 380V 50/60Hz | ||
Electrical input | ≤60A | ≤60A | ||
※※Higher working temperature can be fixed according to requirements ※※Thickness can be fixed according to requirements | ||||
1 | Two Magnetic plates:used for fixed mould and moving mould |

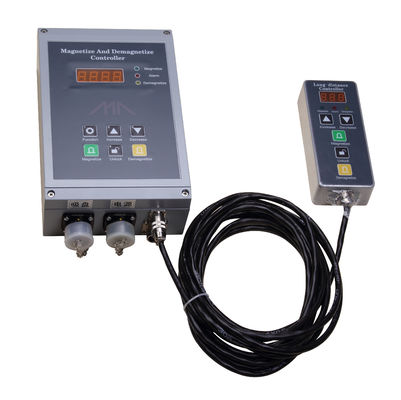

2 | Electrical controlling block:with PLC joint and safe joint,remote controller |
3 | Power supply voltage: 380V, 50Hz, 2 phase(other customization) |
4 | Keys with magnetic and demagnetization buttons,indicator lamp and safe keys |

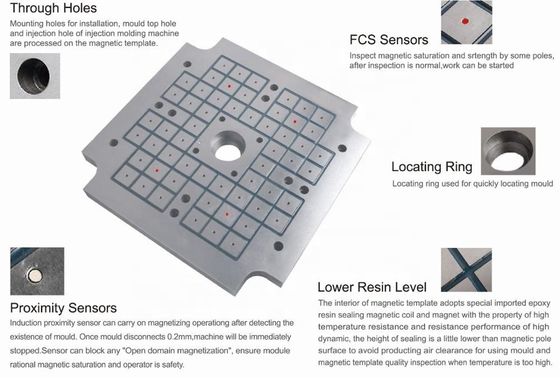

5 | Proximity sensors are installed on each sucker |
6 | one set of fixed bolt |
7 | One piece of power cables(without joint)with 3 meter 2pcs of 3-meter cables from controller to sucker |
8 | user is guide |
Content of comparison | powerful magnetic chuck | common type |
Strength | strong; magnetic force can be superimposed and increased along with the increase of contact area | low; cann't be superimposed and increased along with the increase of contact area; used for grinding and electric machining machine tools |
Precision | good stability; precision machining | poor stability; prone to deformation |
Magnetic force | unique rectangular technology; magnetic force is stability in different shapes, sizes, quantities and positions | magnetic force could change irregularly in different shapes, sizes, quantities and positions |
Stress direction of workpiece | work in the horizontal XY direction; suitable for milling | single direction machining |
Magnetic structure | rectangular array of magnetic poles and the magnetic flux evenly penetrates into the bottom of the workpiece; the part above 1cm is not magnetism | magnetic flux changes greatly and may make the machining magnetize, affecting the machining accuracy |
Packing Details : Wood carton package for magnetic chuck
Delivery Details : 20-25 days after order of magnetic chuck
