Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial

Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial

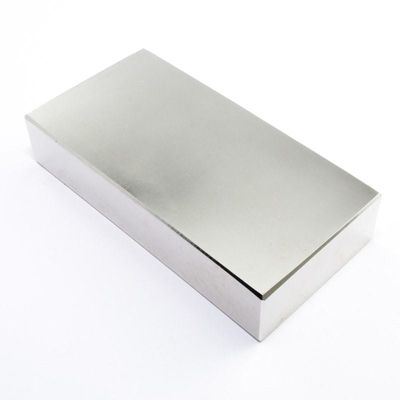

Large Image :  Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: N52
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $1.49/pieces 100-499 pieces
Packaging Details: 35x25x15cm standard exporting cartons package for magnet for N52 D32x2mm Disc Magnets
Supply Ability: 2000 Ton/Tons per Year Customized Ferrite magnet disc used for industrial field
Contact Now

Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial

Description
Type: Permanent Composite: Rare Earth Magnet
Shape: Block, Block Application: Industrial Magnet
Tolerance: ±1%, +/- 0,1 Mm Processing Service: Cutting, Punching, Moulding
Grade: NdFeb Delivery Time: 8-14 Days
Size: 60 X 30 X 15 Mm Or Customized Direction Of Magnetisation: Axis 15 Mm
Coating: Nickel-plated (Ni-Cu-Ni) Magnetisation: N25-N52
Strength: Approx. 56 Kg (approx. 549 N) Displacement Force: Approx. 11 Kg (approx. 110 N)
Max. Working Temperature: 80°C Weight: 210 G
Port: Shanghai/xiamen Port

Product Description
Product Name
Super Strong NdFeb Rare Earth Magnet Manufacturer Industrial Magnetic Materials
Material
Rare Earth Magnet
Grade
N52 or as per client's request
Size of magnet
F60x30x15mm or Custom
Magnetization direction
Thru 25mm
Coating
NiCuNi
Certifications
ISO9001, CE, TS16949, ROHS, SGS, etc
MOQ
100 pieces
Products Show
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 0
Description of industrial magnetic materials
The magnet is made of ndfeb, the most magnetic material in the world. The material is 10 times stronger than traditional ferrite
magnets.

The table above shows the strength of the magnet. This force is required to tear the magnet off a thick steel surface under ideal
conditions:

The surface is made of pure steel and is at least half the thickness of a magnet.
The magnet touches the surface.
The magnet is pulled perpendicular to (away from) the surface.
There is no clearance between the magnet and the metal surface (eg paint).
Rare earth magnet surface treatment
Despite their metallic appearance, neodymium magnets are actually fragile and can break on impact:
If the magnet is impacted, we recommend using our magnet in the housing. The steel case protects the magnet from impact.
The magnet has three protective layers: nickel, copper and nickel. After the surface treatment is damaged, the magnet will begin
to oxidize and gradually lose strength. If the magnet is impacted or may be severely scratched, we recommend using our magnet in
the housing. The steel case protects the magnet from shock and scratches.
Nickel-copper nickel-surface treatment is not moisture-proof, not suitable for outdoor use. We recommend our waterproof magnets
for outdoor or wet environments.

Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 1
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 2
Neodymium Magnet Industrial Magnetic Material
Neodymium magnets are fragile, sensitive to high temperatures and easily oxidized. When drilling or cutting with the wrong tool,
the magnet may be damaged. Over time, magnets with impaired surface finish may lose some of their strength. Therefore, mechanical
processing of magnets is not recommended. We can meet the special requirements of magnet shape. More information on custom magnet
production page.
Conventional neodymium magnets lose some strength when heated above 80°C, sometimes at lower temperatures. If you need high
temperature resistant magnets, please check the high temperature resistant magnet category. Magnets don't mind low temperatures.

More information, click here

Grades of Neodymium Magnet

Neodymium magnets are all graded by the material they are made of. As a very general rule, the higher the grade (the number
following the 'N'), the stronger the magnet. The highest grade of neodymium magnet currently available is N52. Any letter
following the grade refers to the temperature rating of the magnet. If there are no letters following the grade, then the magnet
is standard temperature neodymium. The temperature ratings are standard (no designation) - M - H - SH - UH - EH.
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 3

Platings/Coatings

Neodymium magnets are a composition of mostly Neodymium, Iron and Boron. If left exposed to the elements, the iron in the magnet
will rust. To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the
magnet to be coated. There are a variety of options for coatings, but nickel is the most common and usually preferred. Our nickel
plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes our magnets
much more durable than the more common single nickel plated magnets. Some other options for coating are zinc, tin, copper, epoxy,
silver and gold. Our gold plated magnets are actually quadruple plated with nickel, copper, nickel and a top coating of gold.
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 4

Magnetization Orientation
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 5
Recommend Products
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 6
Different Types Magnets are Available
Custom Neodymium Block Magnets – We can also custom manufacturer neodymium block magnets to your exact specifications, just send us a special request and we'll help you determine the most cost effective solution for your project. U-POLEMAG has over 20 years of experience in manufacturing complex magnetic assemblies for more technical applications
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 7

More information, click here

Application
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 8
Packing & Delivery
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 9

Strong packaging inside

* With foam inside for protect magnets
* With iron plate around for air shipment
* Suitable for air / sea / express shipping

Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 10

Out side packing

* WIth poly-bag for water-proof
* With clear label for detail of magnets
* With Packing strip for protect carton

More information, click here

Customer feedback
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 11
Our Company
VR
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 12
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 13

Factory

Our Factory 60000M²
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 14

Workshop

Our Workshop

Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 15

Warehouse

Our Warehouse

Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 16

Team

Our Team

Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 17
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 18
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 19
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 20
Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 21
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Composite Rare Earth Magnet Tolerance /- 0 Industrial Magnetic Materials for Industrial 22
