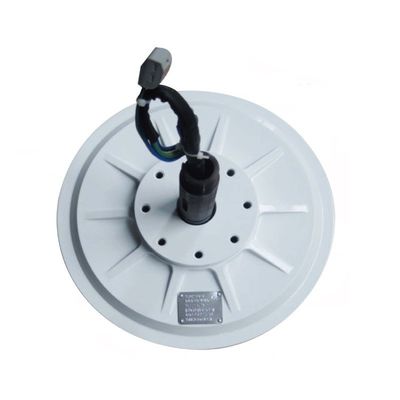

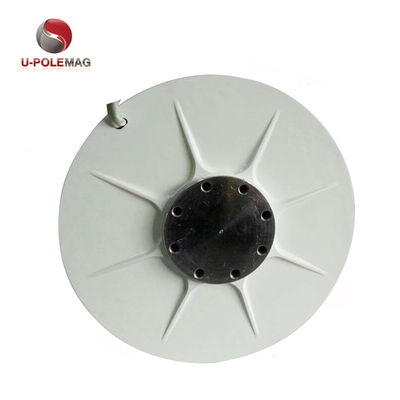

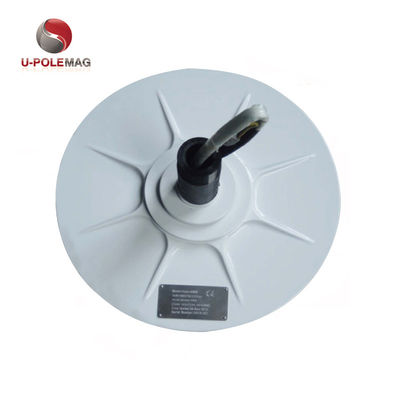

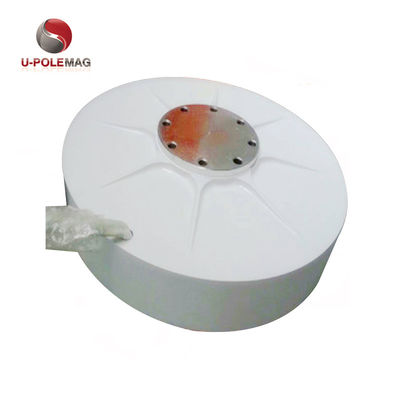

Rare Earth Magnet for Customized AFPMG520-1.0KW/90RPM Inner Rotor Wind Generator

Rare Earth Magnet for Customized AFPMG520-1.0KW/90RPM Inner Rotor Wind Generator
Rare Earth Magnet for Customized AFPMG520-1.0KW/90RPM Inner Rotor Wind Generator Rare Earth Magnet for Customized AFPMG520-1.0KW/90RPM Inner Rotor Wind Generator Rare Earth Magnet for Customized AFPMG520-1.0KW/90RPM Inner Rotor Wind Generator Rare Earth Magnet for Customized AFPMG520-1.0KW/90RPM Inner Rotor Wind Generator

Large Image :  Rare Earth Magnet for Customized AFPMG520-1.0KW/90RPM Inner Rotor Wind Generator

Product Details:
Place of Origin: Zhejiang, China
Brand Name: UPM
Model Number: AFPMG
Payment & Shipping Terms:
Price: $1,000.00 - $10,000.00/pieces
Packaging Details: Standard export packing. PCS/CTN, CTNS/PLT, CTNS/Wooden carton . PLTS/Container
Supply Ability: 2000 Piece/Pieces per Month
Contact Now

Rare Earth Magnet for Customized AFPMG520-1.0KW/90RPM Inner Rotor Wind Generator

Description
Environment Management Systerm: ISO14001:2004 Management Systerm: ISO9001:2000
Packing: Woodencase HS Code: 85030030
Application: Industrial Magnet Composite: Rare Earth Magnet
Type: Permanent Shape: Customized
Port: Xiamen Or Shanghai




AFPMG520-1.0KW/90RPM Inner Rotor for Wind Generator
Product Desciption
U-POLEMAG  has developed a series of new energy high-efficient, disc-shaped, inner (outer) rotor, three-phase, Axial Flux Permanent Magnet Generator (AFPMG) with a coreless (ironless) stator.
AFPMG with high specific power and coreless stator is characterized by the following

Rare Earth Magnet for Customized AFPMG520-1.0KW/90RPM Inner Rotor Wind Generator 0
Rare Earth Magnet for Customized AFPMG520-1.0KW/90RPM Inner Rotor Wind Generator 1
Advantageous features
1. High efficiency: No mechanical drive losses, no rotor copper losses due to the permanent magnet excitation and no stator eddy current losses in the ironless(coreless) stator
2. Small size, small weight: Plastic or epoxy resin stator core
3. No cogging torque, low starting torque,
4. Low noise, less vibration, long life
5. Direct drive, no gearbox, oil-free system, smooth operation
6. High cooling effect, low temperature rise

Main applications
1. Small electrical generators driven by gasoline or diesel engines,
2. Small wind generators,
3. Electric vehicle drive machines, as motor and generator.
Application of AFPMG offers an alternative solution in the sphere of electrical generators or electrical machines in general. Their disc-shaped construction and advantageous electromechanical characteristics represent the main features in alternative electrical energy production and in high efficient electric drive systems.
U-POLEMAG  has made the next significant step in the research and development field of new concepts of electrical machines. The new developed AFPMG has placed the guidelines in a field of research of axial-flux electrical machines, especially in the area of alternative drives for electric vehicles.

Our AFPMG range
Rated power: 100W-10KW
Rated speed: 60-1200RPM
Rated voltage: 14VDC-400VAC
Generator outer diameter: 110-770mm

Checklist Category
1. Dimension and tolerances
2. Output power, Voltage and RPM
3. Insulation resistance examination
4. Starting torque
5. Output wire (Red, white, black, green/earth)


  Rare Earth Magnet for Customized AFPMG520-1.0KW/90RPM Inner Rotor Wind Generator 2Rare Earth Magnet for Customized AFPMG520-1.0KW/90RPM Inner Rotor Wind Generator 3Rare Earth Magnet for Customized AFPMG520-1.0KW/90RPM Inner Rotor Wind Generator 4
