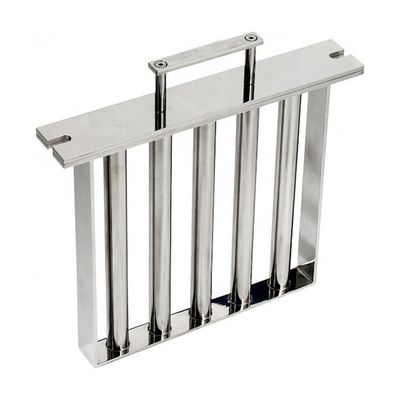

Cutting-Grade Magnetic Grate Separators for Food Industry Easy Clean Square Magnet

Large Image : Cutting-Grade Magnetic Grate Separators for Food Industry Easy Clean Square Magnet

Product Details:

Place of Origin:	Fujian, China
Brand Name:	U-POLEMAG
Certification:	ISO9001:2000
Model Number:	Magnet Filter

Payment & Shipping Terms:

Minimum Order Quantity:	2 pieces
Price:	$200.00/pieces 2-49 pieces
Packaging Details:	Safety in carton for magnetic separators
Supply Ability:	50 Set/Sets per Month square magnetic grid

Contact Now

Cutting-Grade Magnetic Grate Separators for Food Industry Easy Clean Square Magnet

Description

Type:	Permanent	Composite:	Neodymium Magnet
Shape:	Bar	Application:	Industrial Magnet, Gold/Copper/Alluvial Gold Washing/Ore/Mining/Tungsten/Iron
Tolerance:	±3%	Processing Service:	Welding, Cutting, Punching
Grade:	Ndfeb+stainless Steel	Delivery Time:	22-30 Days
Product Name:	Food Industry Grade Easy Clean Square Magnetic Grid	Outer Material:	SS304 Or SS316
Sizes:	Customized Magnetic Grate	Before Tube:	12000 Gauss
After Tube:	9000 Gauss	Cleaning Style:	Self-cleaning
Working Temperature:	80 Degree Celcius	ODM/OEM:	Accepetable
Port:	XIAMEN

Product Description

Food industry grade easy clean square magnetic grid, magnetic grate separators, crate magnet for filter, neodymium magnet trap

Magnetic Grates also known as Magnetic grids are extremely efficient at removing fine ferrous contamination from free flowing products They offer superior removal of ferrous contamination like nails, spikes, nuts, bolts, cans, and wire from material conveyor with maintenance-free operation. Whatever your application is, a magnet is a low-cost way to remove that unwanted ferrous metal from your waste stream. They require very little maintenance and can last for years with proper care.

Advantages:

1. Improves product purity

2. Automatic separation of magnetic and non-magnetic material 3. Prevents damage to expensive downstream machinery 4. Easy installation

5. High surface gauss

How the magnetic grid work?

Over 10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator

Magnetic grids filter very fine magnetic and weakly magnetic ferromagnetic contamination from free-flowing powders and granulates. Often used for control purposes. They are used for applications in the plastics, food, pharmaceutical, ceramics and other industries. In the hopper of your injection molding machine, for protection of your installation or as final inspection of your product, e.g. just prior to bagging. Magnetic grids consist of several very powerful neodymium magnetic bars with over 12000 surface gauss. These are located in the middle of your product flow and therefore even capture the smallest ferrous particles, down to 30 microns. Even stainless steel scrapings are captured. These particles are so small that they cannot even be detected by a metal detector. An effective use is to place two magnetic grids in a cascade configuration, so the product flowing past them must contact the magnetic bars or at least pass extremely close to them.

Custom made

We are able to custom made the size and the surface gauss according your device.

Over 10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator

Wide Range Application
Over 10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator

The magnetic roller can be used in Waste stream feed & grain, mining, recycling applications, cement, coal handling plant salt processing industries, glass, paper, refractory, minerals (e.g. Bauxite) ect.

Recommend Products

More information, click here

Packing & Delivery

Safety in Wooden Case

The actual shipment shall prevail

Standard package

The actual shipment shall prevail

Delivery choice10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator

We usually ship by DHL, UPS or Fedex. It usually takes 3-7 workdays to arrive.Airline and sea shipping also optional.

Our Company

Customer Photos

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time of magnetic grid separator?

A: About 20 days, it is according to quantity.

Q: Do you have any MOQ limit for magnetic grid separator?

A: No. But different request and quantity would affect the price.

Q: Do you test all your goods before delivery?

A: We have 100% test before delivery

Q: How can I get the quotation IN TIME?

A: For a timely and responsible quotation, please inform us more details as following:
1. What is outer Material of stainless steel? 304 grade or 316 grade.
2. What is the Size of magnetic grid separator?

3. How many pieces of magnetic bar? And the Surface Gauss?

We would make drawing for your confirmation again before production.
