Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe

Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe

Large Image :  Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: N42SH
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $0.69/pieces 50-199 pieces
Packaging Details: 35x25x15cm standard exporting cartons package for magnet for N52 D32x2mm Disc Magnets
Supply Ability: 2000 Ton/Tons per Year Customized Ferrite magnet disc used for industrial field
Contact Now

Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe

Description
Type: Permanent Composite: NdFeB Magnet
Shape: Arc Application: Industrial Magnet, Motor, Generator, And Magnetic Bearing
Tolerance: ±0.05mm Processing Service: Cutting, Punching, Moulding
Grade: NdFeB Delivery Time: 8-14 Days
Product Name: Neodymium Magnet Ac Generator Magnet Material: NeFeB Magnet
Coating: Nickel-plated (Ni-Cu-Ni-Au) Magnetism Direction: Customzied Specific Requirements
Gauss: 13200 Gauss Hcb: 13.24 KOe
Hcj: 13.42 KOe (BH)max: 39.5MGOe
Working Temperature: 80~350C Degree Max Port: Shanghai/xiamen Port

Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 0
Product Description
Product Name
neodymium magnet ac generator Magnet
Material
Neodymium-Iron-Boron
Grade
N42SH
Gauss
13,200 gauss
Hcb
13.24 KOe
Hcj
13.42 KOe
(BH)max
39.5MGOe
Products Show
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 1

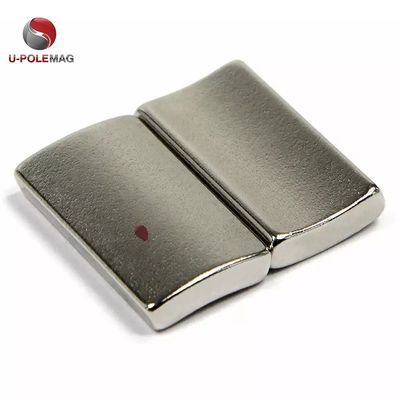

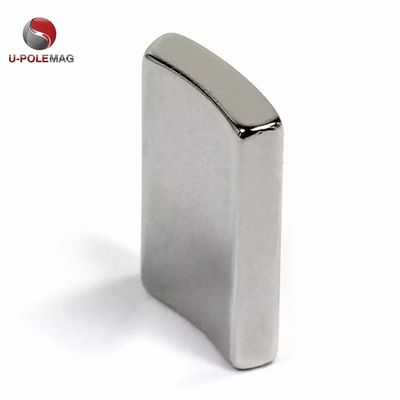

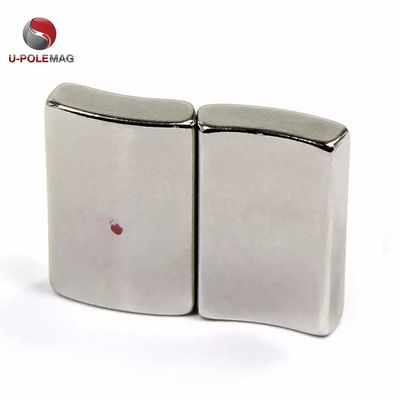

N42SH Neodymium Magnet
N42SH with working temperature of 302 degree Fahrenheit or 150 degree celsius . It is magnetized through the thickness with the
north pole on the inner diameter. The 8 pieces of this arc magnets can form a circle with OD=1.5", ID=1.25" and height =0.75".

* Gauss Rating: 13,200 gauss
* Hcb: 13.24 KOe
* Hcj: 13.42 KOe
* (BH)max: 39.5MGOe
* Working Temperature: 150 degree Centigrade or 302 Fahrenheit
* Magnetization: through thickness. North pole is on the inner arc.
* Coating: Ni+Cu+Ni plated. the best coating available.
* Application: motor, generator, and magnetic bearing

More information, click here

Grades of Neodymium Magnet

Neodymium magnets are all graded by the material they are made of. As a very general rule, the higher the grade (the number
following the 'N'), the stronger the magnet. The highest grade of neodymium magnet currently available is N52. Any letter
following the grade refers to the temperature rating of the magnet. If there are no letters following the grade, then the magnet
is standard temperature neodymium. The temperature ratings are standard (no designation) - M - H - SH - UH - EH.
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 2

Platings/Coatings

Neodymium magnets are a composition of mostly Neodymium, Iron and Boron. If left exposed to the elements, the iron in the magnet
will rust. To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the
magnet to be coated. There are a variety of options for coatings, but nickel is the most common and usually preferred. Our nickel
plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes our magnets
much more durable than the more common single nickel plated magnets. Some other options for coating are zinc, tin, copper, epoxy,
silver and gold. Our gold plated magnets are actually quadruple plated with nickel, copper, nickel and a top coating of gold.
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 3

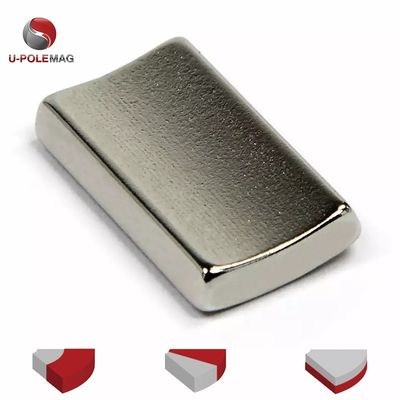

Magnetization Orientation
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 4
Recommend Products
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 5
Different Types Magnets are Available
Custom Neodymium Block Magnets – We can also custom manufacturer neodymium block magnets to your exact specifications, just send us a special request and we'll help you determine the most cost effective solution for your project. U-POLEMAG has over 20 years of experience in manufacturing complex magnetic assemblies for more technical applications
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 6

More information, click here

Application
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 7
Packing & Delivery
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 8

Strong packaging inside

* With foam inside for protect magnets
* With iron plate around for air shipment
* Suitable for air / sea / express shipping

Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 9

Out side packing

* WIth poly-bag for water-proof
* With clear label for detail of magnets
* With Packing strip for protect carton

More information, click here

Customer feedback
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 10
Our Company
VR
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 11
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 12

Factory

Our Factory 60000M²
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 13

Workshop

Our Workshop

Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 14

Warehouse

Our Warehouse

Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 15

Team

Our Team

Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 16
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 17
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 18
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 19
Permanent Rare Earth Neodymium Magnet for 220 v ac Generator Hcj 13.42 KOe Hcb 13.24 KOe 20
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
