Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days

Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days

Large Image :  Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: HTN01-88
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $0.15 - $4.90/pieces
Packaging Details: 45kg Pull Force Diameter 88mm Rubber Coated Magnet Base With Outer Thread
Contact Now

Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days

Description
Type: Permanent Composite: Neodymium Magnet
Shape: Round Application: Industrial Magnet
Tolerance: ±1% Processing Service: Cutting, Punching, Moulding
Grade: NdFeb+rubber Delivery Time: 8-14 Days
Product Name: Rubber Coated Magnet Base Magnet: Neodymium Magnet
Size: Customized Pull Force: 45KG
Outside Treadment: Rubber Coated Thread: M8
Poles: 12 Poles Quality System: ISO9001:2000
Max Working Temperature: 80 Centigrade Sample Lead Time: 15-20 Days
Port: XIAMEN



Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 0
Products Description
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 1
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 2
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 3
Rubber coated Pot Magnet They can be used in a variety of ways, for example, as gripper magnets for vehicle wrapping. The handles also make it easier to remove strong magnets from ferromagnetic surfaces. The rubber coating of the magnet system protects delicate surfaces from scratches and increases the load capacity in shear direction.
Table of Magnet Properties
Rubber coated POT manget give great durability and high friction to keep them from slipping on surfaces. The rubber coating can also protect against the liguids and chipping.
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 4
Item Code
D (mm)
H (mm)
L (mm)
M (mm)
Pull Force (kg)
Working Temperature (°C)

HTN01-22
22
6
12.5
M4
4.5
80

HTN01-22B
22
5.5
15.5
M4
4.3
80

HTN01-42C
44
9
19.6
M8
20
80

HTN01-43
43
6
21
M6
9.5
80

HTN01-43C
43
6
30.8
1/4-20
9.5
80

HTN01-66B
66
8
23
M6
20
80

HTN01-88
88
8.2
20
M8
45
80

HTN01-89.3
89.3
8.5
33.6
1/4-20
47
80

Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 5
Item Code
D (mm)
H (mm)
d (mm)
Pull Force (kg)

Working Temperature (°C)

HVN01-02
45
6
5.5
9

80

HVN01-10
22
6
8.2
3.5

80

HVN01-54
30
9
5.5
3

80

HVN01-54A
30
9
6
3

80

HVN01-54B
30
6
5.5
1.5

80

HVN01-87
60
7.5
5.5
22

80

Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 6
Item Code
D (mm)
H (mm)
M (mm)
Pull Force (kg)

Working Temperature (°C)

HTN08-22C
22
6
M4
4.5

80

HTN08-31
31
7
M5
8.5

80

HTN08-31A
31
6
M5
8

80

HTN08-36C
36
7
M4
15

80

HTN08-43C
43
6
M4
8.5

80

HTN08-66A
66
8
M4
18

80

HTN08-66B
66
8
#1/4-20
18

80

HTN08-66C
66
8.5
M6
18

80

HTN08-66D
66
8
M6
18

80

HTN08-66F
66
8
M4
18

80

HTN08-88A
88
8.2
M8
42

80

HTN08-88B
88
8.2
M6
42

80

HTN08-88C
88
8.5
M6
42

80

HTN08-89.3C
89.3
8.5
M6
42

80

HTN08-89.3D
89.3
8.5
M5
42

80

Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 7
Item Code
D (mm)
H (mm)
d (mm)
L (mm)
M (mm)
Pull Force (kg)
Working Temperatur (°C)
HTN08-22
22
6
8
11.5
M4
4.5
80
HTN08-43A
43
6
8
10.5
M4
8.5
80
HTN08-66
66
8.5
10
15
M5
18
80
HTN08-88
88
8.2
12
17
M6
42
80
HTN08-89.3
89.3
8.5
12
8.5
1/4-20
49
80

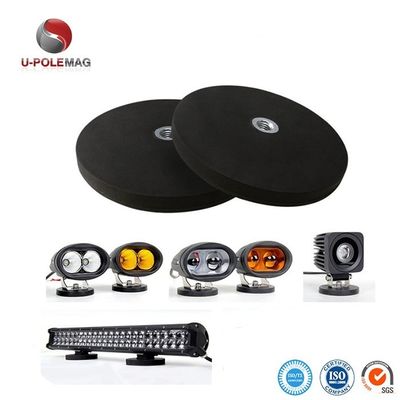

Application Fields
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 8
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 9
Why Choose Us
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 10
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 11
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 12
About U-POLEMAG
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 13
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 14
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 15
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 16
U-Polemag Industry Ltd founded in 2004, is a high technology company engaged in reaching, developing, manufacturing and marketing magnets and their application devices with ISO9001,ISO14001,ISO18001 and ISO/TS16949 certificates.

As a supplier of magnetic material and devices, by taking markets as the orientation and customers’ demands as criterion,
U-polemag continuously improves technologies and products, and insists in providing customers with first-class goods and services.

With years of development and accumulation, we can supply high quality neodymium magnets ,samarium cobalt magnets, ceramic magnets and various of customized magnetic application products such as magnetic holders magnetic coupling, motor parts, speaker divers and so on

VR
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 17
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 18
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 19
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 20
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 21
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 22
Lead Time For Rubber Coated Neodymium Pot Magnet D88mm D66mm D43mm D36mm 15-20 Days 23
FAQ

Q: May we get a sample of the product? How to ship and how to pay ?

A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.

Q: What magnet materials are available?

A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.

Q:Can you supply custom magnets?

A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .

Q:Do you have a minimum purchase order?

A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .

Q: How many days does it take to ship my order?

A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .

Q:What elements affect the magnet price ?

A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
