13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor

13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor

Large Image :  13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: N42SH
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $0.69/pieces 50-199 pieces
Packaging Details: 35x25x15cm standard exporting cartons package for magnet for N52 D32x2mm Disc Magnets
Supply Ability: 2000 Ton/Tons per Year Customized Ferrite magnet disc used for industrial field
Contact Now

13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor

Description
Type: Permanent Composite: NdFeB Magnet
Shape: Arc Application: Industrial Magnet, Motor, Generator, And Magnetic Bearing
Tolerance: ±1% Processing Service: Cutting, Punching, Moulding
Grade: Neodymium Delivery Time: 31-45 Days
Product Name: Neodymium Magnet Ac Generator Magnet Material: NeFeB Magnet
Coating: Nickel-plated (Ni-Cu-Ni-Au) Magnetism Direction: Customzied Specific Requirements
Gauss: 13200 Gauss Hcb: 13.24 KOe
Hcj: 13.42 KOe (BH)max: 39.5MGOe
Working Temperature: 80~350C Degree Max Port: Shanghai/xiamen Port

Product Description
Product Name
Neodymium Magnet Rotor
Material
Neodymium-Iron-Boron
Grade
N42SH
Gauss
13,200 gauss
Hcb
13.24 KOe
Hcj
13.42 KOe
(BH)max
39.5MGOe
Products Show
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 0
N42SH Neodymium Magnet

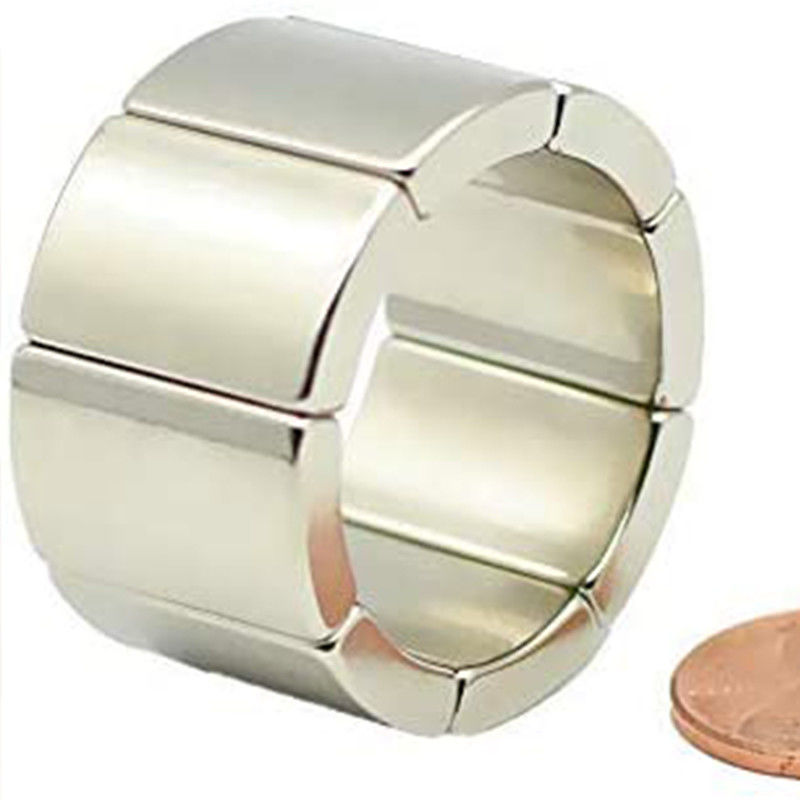

N42SH with working temperature of 302 degree Fahrenheit or 150 degree celsius . It is magnetized through the thickness with the

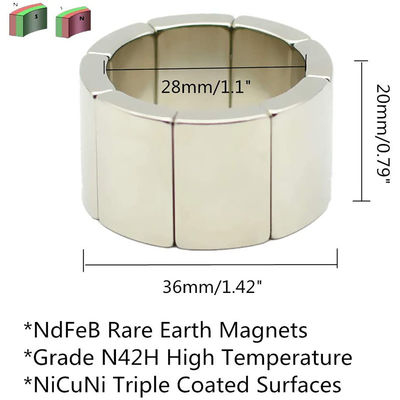

north pole on the inner diameter. The 8 pieces of this arc magnets can form a circle with OD=1.5", ID=1.25" and height =0.75".

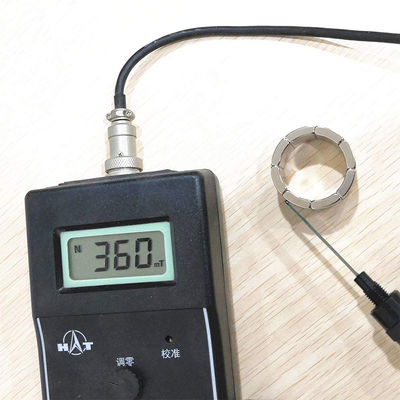

* Gauss Rating: 13,200 gauss
* Hcb: 13.24 KOe
* Hcj: 13.42 KOe
* (BH)max: 39.5MGOe
* Working Temperature: 150 degree Centigrade or 302 Fahrenheit
* Magnetization: through thickness. North pole is on the inner arc.
* Coating: Ni+Cu+Ni plated. the best coating available.
* Application: motor, generator, and magnetic bearing

More information, click here

Grades of Neodymium Magnet

Neodymium magnets are all graded by the material they are made of. As a very general rule, the higher the grade (the number
following the 'N'), the stronger the magnet. The highest grade of neodymium magnet currently available is N52. Any letter
following the grade refers to the temperature rating of the magnet. If there are no letters following the grade, then the magnet
is standard temperature neodymium. The temperature ratings are standard (no designation) - M - H - SH - UH - EH.
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 1

Platings/Coatings

Neodymium magnets are a composition of mostly Neodymium, Iron and Boron. If left exposed to the elements, the iron in the magnet
will rust. To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the
magnet to be coated. There are a variety of options for coatings, but nickel is the most common and usually preferred. Our nickel
plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes our magnets
much more durable than the more common single nickel plated magnets. Some other options for coating are zinc, tin, copper, epoxy,
silver and gold. Our gold plated magnets are actually quadruple plated with nickel, copper, nickel and a top coating of gold.
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 2

Magnetization Orientation
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 3
Recommend Products
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 4
Different Types Magnets are Available
Custom Neodymium Block Magnets – We can also custom manufacturer neodymium block magnets to your exact specifications, just send us a special request and we'll help you determine the most cost effective solution for your project. U-POLEMAG has over 20 years of experience in manufacturing complex magnetic assemblies for more technical applications
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 5

More information, click here

Application
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 6
Packing & Delivery
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 7

Strong packaging inside

* With foam inside for protect magnets
* With iron plate around for air shipment
* Suitable for air / sea / express shipping

13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 8

Out side packing

* WIth poly-bag for water-proof
* With clear label for detail of magnets
* With Packing strip for protect carton

More information, click here

Customer feedback
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 9
Our Company
VR
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 10
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 11

Factory

Our Factory 60000M²
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 12

Workshop

Our Workshop

13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 13

Warehouse

Our Warehouse

13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 14

Team

Our Team

13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 15
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 16
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 17
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 18
13200 Gauss Customized Design Permanent Neodymium Magnet Rotor for Motor 19
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
