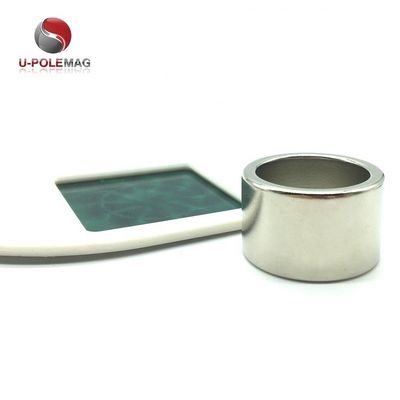

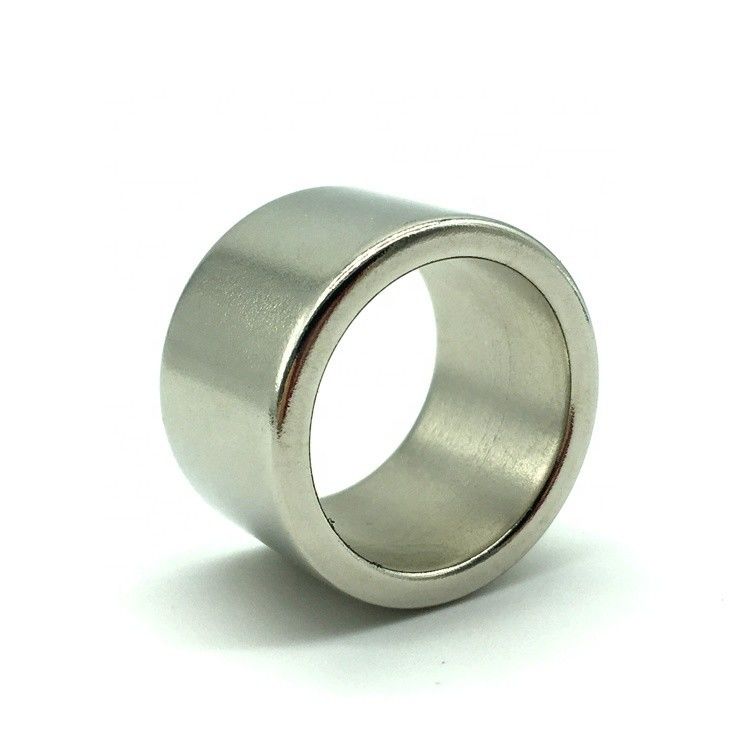

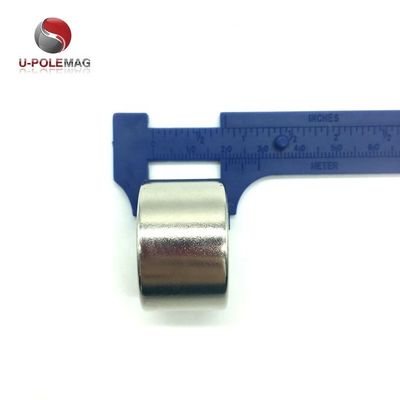

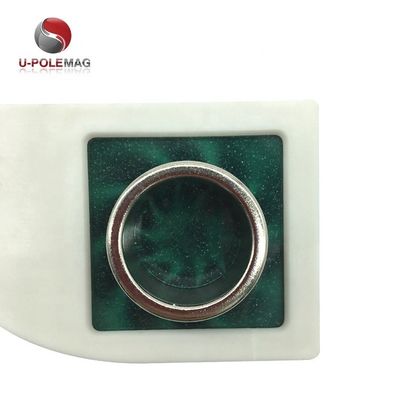

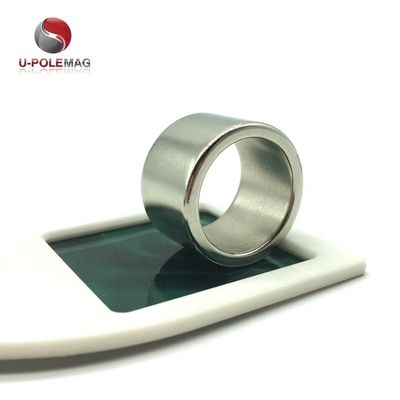

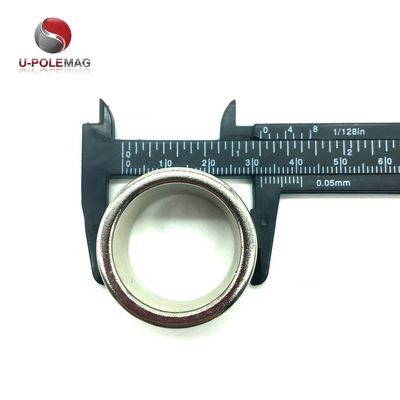

Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors

Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors

Large Image :  Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Certification: ISO900, TS16949, CE, SGS, ROHS, etc
Model Number: N38H
Payment & Shipping Terms:
Price: $50.00/pieces 1-499 pieces
Packaging Details: N38H Neodymium Radial Ring Magnet
Contact Now

Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors

Description
Type: Permanent Composite: Neodymium Magnet
Shape: Ring Application: Industrial Magnet
Tolerance: ±1% Grade: NdFeb, N38H Radial Ring Magnet
Product Name: N38H Neodymium Radial Ring Magnet Size: OD32xID25x20mm Or Customized
Precise Tolerance: +/-0.05mm Coating: NiCuNi
Magnetism Direction: Radial Max Working Temperature: 120 Centigrade
Lead Time: 18-20 Working Days Sample: Avaliable

Product Description
Product Name
N38H permanent Neodymium radial magnetization ring magnet
Grade
N38H or as per client's request
Size
OD32xID25x20mm or Customized
Precise Tolerance
+/-0.05mm
Coating
NiCuNi
Magnetism direction
Radial
Max Working Temperature
120 Centigrade
Certification
ISO900, TS16949, CE, SGS, ROHS, etc
Lead time
18-20 working days
Sample
Avaliable
Specification
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 0
Sintered Neodymium Radial Magnetization Ring Magnet
* These sintered radial ring magnet are widely used in Servo motor, Synchroneus motor, Magnetic bearings, Magnetic clutch, Actuators, etc.

* Multi-pole radial ring magnet, only one piece can be easier to motor assembly and installation.

* More uniform magnetic field distribution

* Tolerance can be more accurate than segment magnets

* Motor performance can be more precision
Radial Magnetization Ring Magnet
* The magnetization belongs to type 1 as below, skewed magnetization

* Available dimension: OD ≤ 70mm, ID ≥ 12mm, 2 ≤ T ≤ 7mm
Radially oriented magnetization(Type 3): H ≤ 15mm
Multi-pole (Type 1 & 2 ): H < half of OD
(Note: it should be double check with grade )

*More information, click here to contact us

Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 1
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 2
Recommend Products
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 3
Arc magnets with epoxy
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 5
Arc magnet
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 7
ring magnets
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 9
Custom magnets
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 11
Block magnets
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 13
Trapezoid magnet
More info, click here
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 15
Neodymium Magnet
U-POLEMAG stock basic geometric shapes in various thicknesses and premium grades ranging from N30 to N52. Finishing options include uncoated or with a triple-coated (Ni-Cu-Ni) shiny nickel finish for optimal protection against corrosion. Not all of our magnets are shown on this website so please contact us today if you don't see what you are looking for.
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 16
More info, click here
Customer feedback
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 17
Packing & Delivery
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 18
Company Profie
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 19
Our Factory 60000M²
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 20
Our Workshop
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 21
Our Warehouse
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 22
Our Sale Team
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 23
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 24
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 25
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 26
Customized N38H Neodymium Radial Magnetization Ring Magnet OD32xID25x20mm for Sensors 27
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
