Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive

Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive

Large Image :  Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: N52
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $0.58/pieces 100-999 pieces
Packaging Details: Customized Super Strong Sintered N52 Neodymium Magnet Standard Carton or Customized
Contact Now

Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive

Description
Type: Permanent Composite: Neodymium Magnet
Shape: Disc/round Application: Industrial Magnet
Tolerance: +/-0.05mm Processing Service: Cutting, Moulding
Grade: Ndfeb, N52 Neodymium Magnet Delivery Time: Within 7 Days
Product Name: Neodymium Magnet Coating: Nickel
Precise Tolerance: +/-0.05mm Main Materials: NdFeB
Size: D32X2mm Or Customized Quality System: ISO9001:2000
Brand: U-Polemag Neodymium Magnet Max Working Temperature: 80 Centigrade
Sample Lead Time: 15-20 Days Port: XIAMEN,SHANGHAI

Product Description
Product Name
Neodymium Magnets, Rare Earth Magnets with Self-adhesive, D32 X 2mm Round & Disc Magnet & Extra Strong N52 Magnets for Sale
Material
Neodymium-Iron-Boron
Grade
N52or as per client's request
Size of magnet
D32 x 2mm or Custom
Magnetization direction
Axial
Coating
NiCuNi
Certifications
ISO9001, CE, TS16949, ROHS, SGS, etc
MOQ
1 set
Products Show
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 0
Rare Earth Neodymium Disc & Round Magnets
* Neodymium disc and round magnets are incredibly powerful according to their size,.

* Neodymium magnets are the strongest permanent. Rare-Earth magnets commercially available today with magnetic properties that far exceed other permanent magnet materials.

* Their high magnetic strength, resistance to demagnetization, low cost and versatility
make them the ideal choice for applications ranging from industrial and technical use to personal projects.

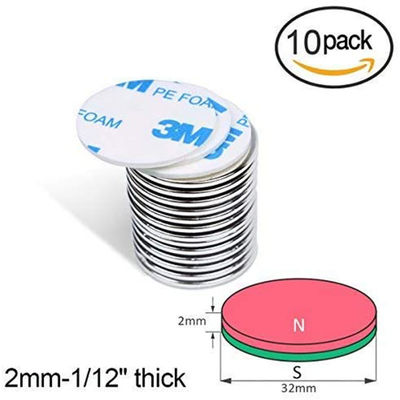

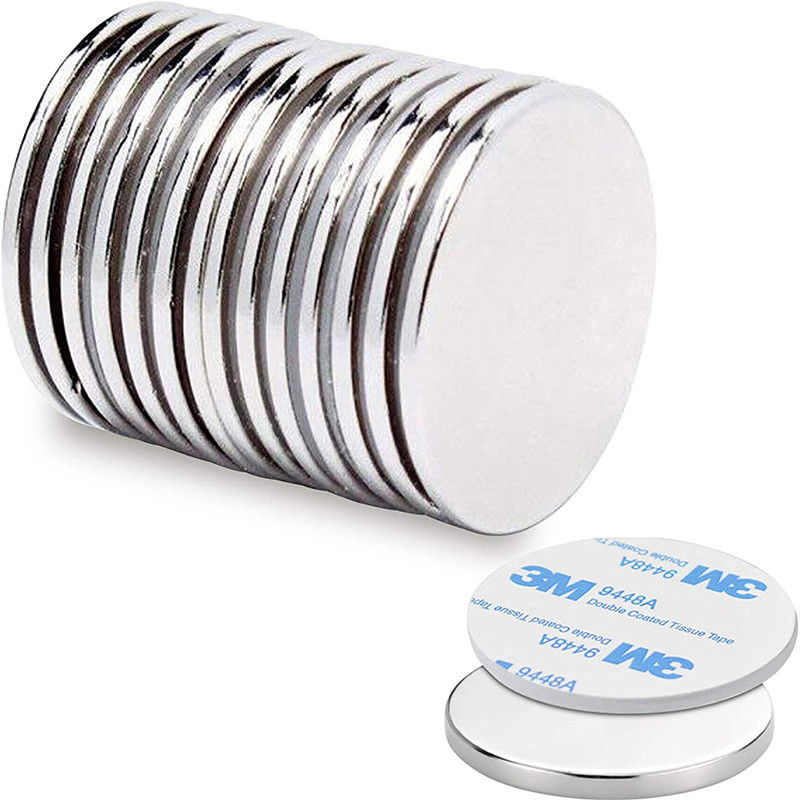

Disc Magnet
* Standard N52 grade
*Diameter&Thickness=32x2mm
Pull Force=11.37lb
* Max. Woking Temperature = 80 centigrade
* Applications – Neodymium disc & round magnets are useful for multiple applications. From creative crafting & DIY projects to exhibition displays, furniture making, packaging, school classroom décor, home and office organizing, medical, science equipment and much more. They are also used for various design & engineering and manufacturing applications where small sized, maximum strength magnets are required. Visit our applications page to learn more.
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 1
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 2
 Neodymium Magnet

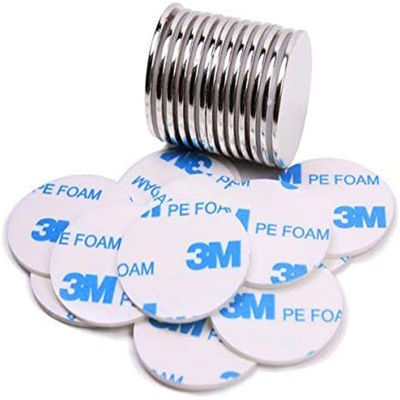

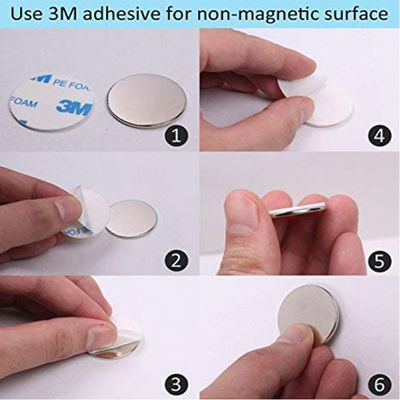

1. Affixed quality adhesive strips: self-adhesive, strong neodymium round magnets with a one-sided branded adhesive film (peel-off film)! 2. Good magnet coating: 3-fold coating of the magnets with nickel-copper-nickel (NiCuNi) thus the adhesive magnets have a smooth surface for high load capacity and relative insensitivity to external influences! 3. High quality material: This neodymium magnet is made of NdFeB, extra strong adhesive force. Please avoid sharp collisions. 4. Versatile use: kitchen, office, model making, workshop, assembly, bathroom, handicrafts and much more - These so-called "rare earth magnets" have a very strong, high tensile force or adhesive force
* Custom is available
U-POLEMAG stock basic geometric shapes in various thicknesses and premium grades ranging from N30 to N52. Finishing options
include uncoated or with a triple-coated (Ni-Cu-Ni) shiny nickel finish for optimal protection against corrosion. Not all of our
magnets are shown on this website so please CONTACT US today if you don't see what you are looking for.

Grades of Neodymium Magnet

Neodymium magnets are all graded by the material they are made of. As a very general rule, the higher the grade (the number
following the 'N'), the stronger the magnet. The highest grade of neodymium magnet currently available is N52. Any letter
following the grade refers to the temperature rating of the magnet. If there are no letters following the grade, then the magnet
is standard temperature neodymium. The temperature ratings are standard (no designation) - M - H - SH - UH - EH.
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 3

Platings/Coatings

Neodymium magnets are a composition of mostly Neodymium, Iron and Boron. If left exposed to the elements, the iron in the magnet
will rust. To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the
magnet to be coated. There are a variety of options for coatings, but nickel is the most common and usually preferred. Our nickel
plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes our magnets
much more durable than the more common single nickel plated magnets. Some other options for coating are zinc, tin, copper, epoxy,
silver and gold. Our gold plated magnets are actually quadruple plated with nickel, copper, nickel and a top coating of gold.
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 4

Magnetization Orientation
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 5
Recommend Products
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 6
Different Types Magnets are Available
Custom Neodymium Block Magnets – We can also custom manufacturer neodymium block magnets to your exact specifications, just send us a special request and we'll help you determine the most cost effective solution for your project. U-POLEMAG has over 20 years of experience in manufacturing complex magnetic assemblies for more technical applications
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 7
Application
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 8
Packing & Delivery
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 9

Strong packaging inside

* With foam inside for protect magnets
* With iron plate around for air shipment
* Suitable for air / sea / express shipping

Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 10

Out side packing

* WIth poly-bag for water-proof
* With clear label for detail of magnets
* With Packing strip for protect carton

Customer feedback
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 11
Our Company
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 12

Factory

Our Factory 60000M²
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 13

Workshop

Our Workshop

Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 14

Warehouse

Our Warehouse

Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 15

Team

Our Team

Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 16
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 17
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 18
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 19
Permanent NdFeB Material Super Strong Round Disc N52 Neodymium Magnet with 3M Adhesive 20
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
