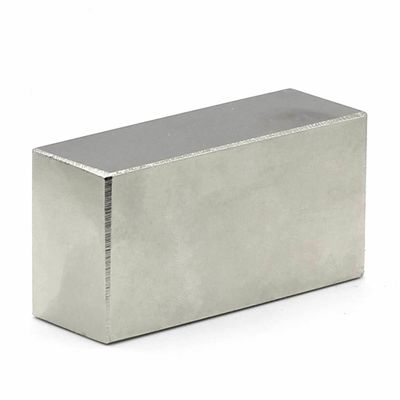

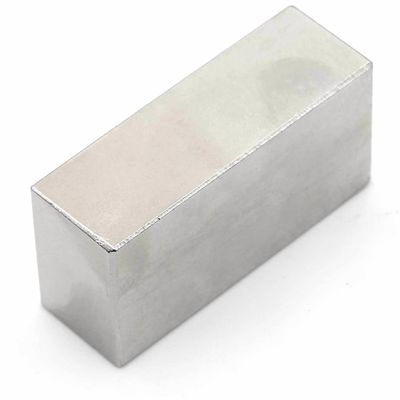

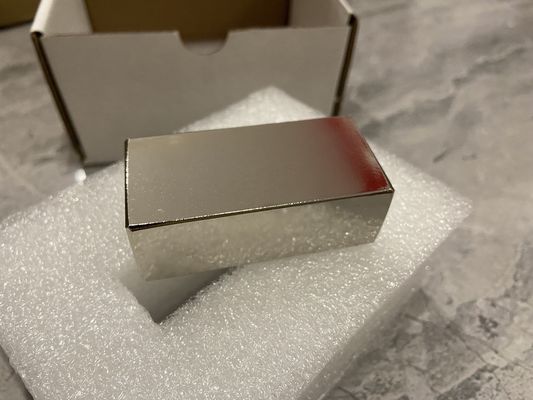

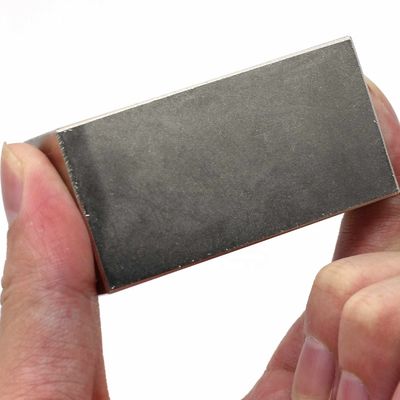

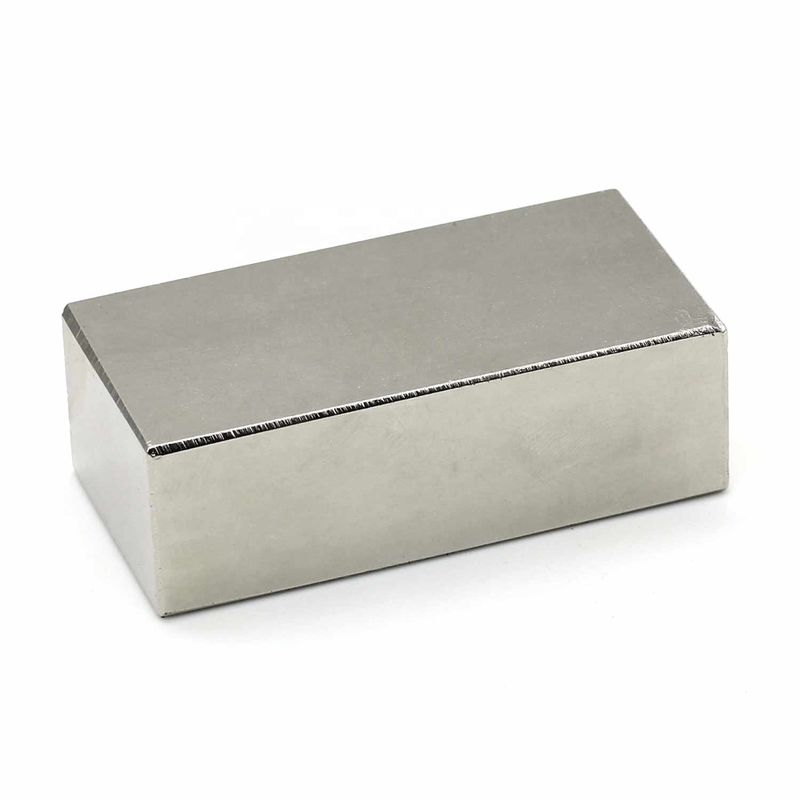

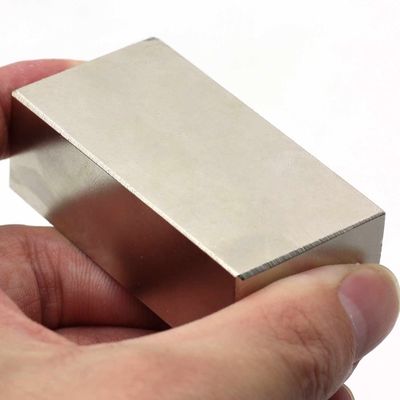

F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation

F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation

Large Image :  F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: N52
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Price: $15.98/pieces 2-99 pieces
Packaging Details: Customized Super Strong Sintered N52 Neodymium Magnet Standard Carton or Customized
Contact Now

F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation

Description
Type: Permanent Composite: Neodymium Magnet
Shape: Block Application: Industrial Magnet
Tolerance: ±1% Processing Service: Cutting, Punching, Moulding
Grade: Ndfeb, N52 Neodymium Magnet Delivery Time: Within 7 Days
Product Name: Super Strong Sintered N52 Neodymium Magnet Block Shape 60x30x20mm Coating: Nickel
Precise Tolerance: +/-0.05mm Main Materials: NdFeB
Size: F60x30x20mm Or Customized Quality System: ISO9001:2000
Brand: U-Polemag Neodymium Magnet Max Working Temperature: 60 Centigrade
Sample Lead Time: 15-20 Days Port: XIAMEN,SHANGHAI

Product Description
Product Name
Super Strong Sintered N52 Neodymium Magnet Block shape 60x30x20mm
Material
Neodymium-Iron-Boron
Grade
N52 or as per client's request
Size of magnet
F60x30x20mm or Custom
Magnetization direction
Thru 20mm
Coating
NiCuNi
Certifications
ISO9001, CE, TS16949, ROHS, SGS, etc
MOQ
1 set
Products Show
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 0
Rare Earth Neodymium Bar & Block Magnets
* Neodymium bar, block and cube magnets are incredibly powerful for their size, with an approximate pull strength of up to 300 lbs.

* Neodymium magnets are the strongest permanent. Rare-Earth magnets commercially available today with magnetic properties that far exceed other permanent magnet materials.

* Their high magnetic strength, resistance to demagnetization, low cost and versatility
make them the ideal choice for applications ranging from industrial and technical use to personal projects.
Block Magnet
* Standard N52 grade
* Length x width = 60x20mm
* Max. Woking Temperature = 60 centigrade
* Applications – Neodymium block, bar and cube magnets are useful for multiple applications. From creative crafting & DIY projects to exhibition displays, furniture making, packaging, school classroom décor, home and office organizing, medical, science equipment and much more. They are also used for various design & engineering and manufacturing applications where small sized, maximum strength magnets are required. Visit our applications page to learn more.
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 1
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 2
N52 Neodymium Magnet
* Thickness 20mm
* Pull force > 125kg
* Custom is available
U-POLEMAG stock basic geometric shapes in various thicknesses and premium grades ranging from N35 to N52. Finishing options
include uncoated or with a triple-coated (Ni-Cu-Ni) shiny nickel finish for optimal protection against corrosion. Not all of our
magnets are shown on this website so please contact us today if you don't see what you are looking for.

More information, click here

Grades of Neodymium Magnet

Neodymium magnets are all graded by the material they are made of. As a very general rule, the higher the grade (the number
following the 'N'), the stronger the magnet. The highest grade of neodymium magnet currently available is N52. Any letter
following the grade refers to the temperature rating of the magnet. If there are no letters following the grade, then the magnet
is standard temperature neodymium. The temperature ratings are standard (no designation) - M - H - SH - UH - EH.
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 3

Platings/Coatings

Neodymium magnets are a composition of mostly Neodymium, Iron and Boron. If left exposed to the elements, the iron in the magnet
will rust. To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the
magnet to be coated. There are a variety of options for coatings, but nickel is the most common and usually preferred. Our nickel
plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes our magnets
much more durable than the more common single nickel plated magnets. Some other options for coating are zinc, tin, copper, epoxy,
silver and gold. Our gold plated magnets are actually quadruple plated with nickel, copper, nickel and a top coating of gold.
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 4

Magnetization Orientation
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 5
Recommend Products
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 6
Different Types Magnets are Available
Custom Neodymium Block Magnets – We can also custom manufacturer neodymium block magnets to your exact specifications, just send us a special request and we'll help you determine the most cost effective solution for your project. U-POLEMAG has over 20 years of experience in manufacturing complex magnetic assemblies for more technical applications
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 7

More information, click here

Application
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 8
Packing & Delivery
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 9

Strong packaging inside

* With foam inside for protect magnets
* With iron plate around for air shipment
* Suitable for air / sea / express shipping

F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 10

Out side packing

* WIth poly-bag for water-proof
* With clear label for detail of magnets
* With Packing strip for protect carton

F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 11

More information, click here

Customer feedback
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 12
Our Company
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 13
VR
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 14
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 15

Factory

Our Factory 60000M²
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 16

Workshop

Our Workshop

F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 17

Warehouse

Our Warehouse

F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 18

Team

Our Team

F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 19
F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 20
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

F60x30x20mm Super Strong Sintered N52 Neodymium Magnet Block for Magnetic Levitation 21
