Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator

Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator
Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator

Large Image :  Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: N42SH
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $0.69/pieces 50-199 pieces
Packaging Details: 35x25x15cm standard exporting cartons package for magnet for N52 D32x2mm Disc Magnets
Supply Ability: 2000 Ton/Tons per Year Customized Ferrite magnet disc used for industrial field
Contact Now

Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator

Description
Type: Permanent Composite: NdFeB Magnet
Shape: Arc Application: Industrial Magnet, Motor, Generator, And Magnetic Bearing
Tolerance: ±1% Processing Service: Cutting, Punching, Moulding
Grade: Neodymium Delivery Time: Within 7 Days
Product Name: Flywheel Arc Neodymium Magnets Material: NeFeB Magnet
Coating: Nickel-plated (Ni-Cu-Ni-Au) Magnetism Direction: Customzied Specific Requirements
Gauss: 13200 Gauss Hcb: 13.24 KOe
Hcj: 13.42 KOe (BH)max: 39.5MGOe
Working Temperature: 80~350C Degree Max Port: Shanghai/xiamen Port

Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator 0
Product Description
Product Name
Flywheel Arc Neodymium Magnets
Material
Neodymium-Iron-Boron
Grade
N42SH
Gauss
13,200 gauss
Hcb
13.24 KOe
Hcj
13.42 KOe
(BH)max
39.5MGOe
Products Show
Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator 1

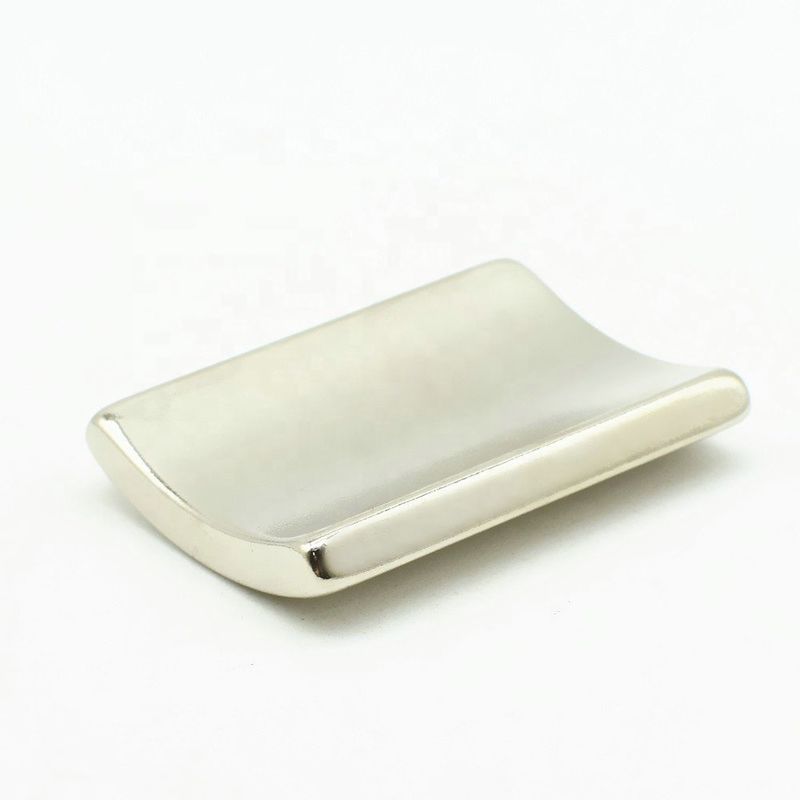

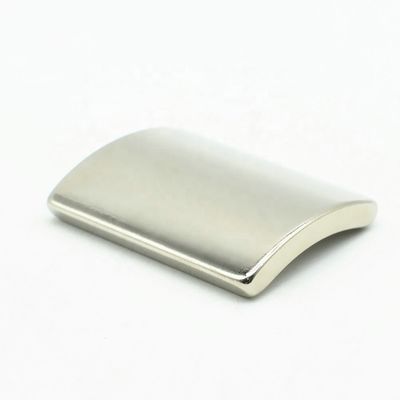

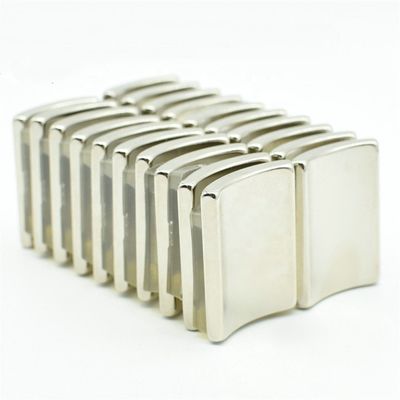

Flywheel Arc Neodymium Magnets
N42SH with working temperature of 302 degree Fahrenheit or 150 degree celsius . It is magnetized through the thickness with the

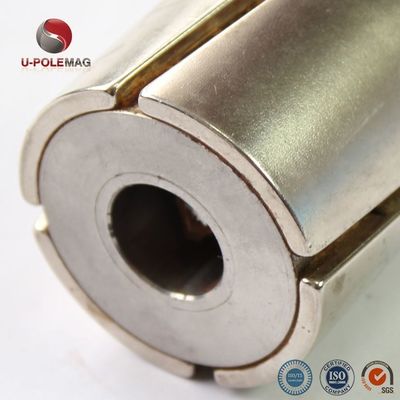

north pole on the inner diameter. The 8 pieces of this arc magnets can form a circle with OD=1.5", ID=1.25" and height =0.75".

* Gauss Rating: 13,200 gauss
* Hcb: 13.24 KOe
* Hcj: 13.42 KOe
* (BH)max: 39.5MGOe
* Working Temperature: 150 degree Centigrade or 302 Fahrenheit
* Magnetization: through thickness. North pole is on the inner arc.
* Coating: Ni+Cu+Ni plated. the best coating available.
* Application: motor, generator, and magnetic bearing

More information, click here

Grades of Neodymium Magnet

Neodymium magnets are all graded by the material they are made of. As a very general rule, the higher the grade (the number
following the 'N'), the stronger the magnet. The highest grade of neodymium magnet currently available is N52. Any letter
following the grade refers to the temperature rating of the magnet. If there are no letters following the grade, then the magnet
is standard temperature neodymium. The temperature ratings are standard (no designation) - M - H - SH - UH - EH.
Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator 2

Platings/Coatings

Neodymium magnets are a composition of mostly Neodymium, Iron and Boron. If left exposed to the elements, the iron in the magnet
will rust. To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the
magnet to be coated. There are a variety of options for coatings, but nickel is the most common and usually preferred. Our nickel
plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes our magnets
much more durable than the more common single nickel plated magnets. Some other options for coating are zinc, tin, copper, epoxy,
silver and gold. Our gold plated magnets are actually quadruple plated with nickel, copper, nickel and a top coating of gold.
Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator 3

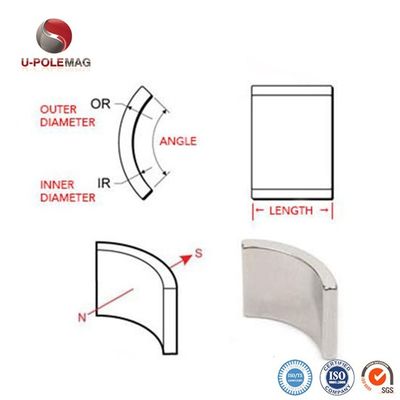

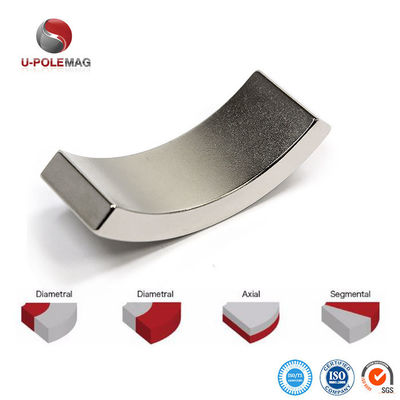

Magnetization Orientation
Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator 4
Recommend Products
Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator 5
Different Types Magnets are Available
Custom Neodymium Block Magnets – We can also custom manufacturer neodymium block magnets to your exact specifications, just send us a special request and we'll help you determine the most cost effective solution for your project. U-POLEMAG has over 20 years of experience in manufacturing complex magnetic assemblies for more technical applications
Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator 6

More information, click here

Application
Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator 7
Packing & Delivery
Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator 8

Strong packaging inside

* With foam inside for protect magnets
* With iron plate around for air shipment
* Suitable for air / sea / express shipping

Moulding Service N52 Strong Magnetic Flywheel Arc Neodymium Magnets for Generator 9

Out side packing

* WIth poly-bag for water-proof
* With clear label for detail of magnets
* With Packing strip for protect carton

More information, click here
