350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System

350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System
350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System

Large Image :  350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System

Product Details:
Place of Origin: Zhejiang, China
Brand Name: U-POLEMAG
Model Number: YXG-32
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $3.50 - $9.90/pieces
Packaging Details: Standard export packing. PCS/CTN, CTNS/PLT, CTNS/Wooden carton . PLTS/ContainerSamarium Cobalt Magnets SmCo Motor Magnet
Supply Ability: 2000 Metric Ton/Metric Tons per Year SmCo Motor Magnet
Contact Now

350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System

Description
Type: Permanent Composite: Rare Earth Magnet
Shape: Customized, Round Or Other Shape Application: Industrial Magnet, SmCo Motor Magnet
Tolerance: ±1mm Processing Service: Cutting, Moulding
Grade: SmCo Delivery Time: 22-30 Days
Name: 350 Degree SmCo Magnet Circular Material: Samarium Cobalt(Sm2Co17)
Technology: Sintered Size: D30x10mm Or Custom Magnet Size
Plating: No Max Working Temperature: 350 ℃
Quality Systerm: ISO/TS16949:2002 Lead Time: About 30 Days
Port: Xiamen Or Shanghai

350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 0
A samarium–cobalt (SmCo) magnet, a type of rare-earth magnet, is a strong permanent magnet made of two basic elements: samarium and cobalt.
* Samarium-cobalt magnets are extremely resistant to demagnetization. * These magnets have good temperature stability (maximum use temperatures between 250 °C (523 K) and 550 °C (823 K); Curie temperatures from 700 °C (973 K) to 800 °C (1,070 K). * They are expensive and subject to price fluctuations (cobalt is market price sensitive). * Samarium–cobalt magnets have a strong resistance to corrosion and oxidation resistance, usually do not need to be coated and can be widely used in high temperature and poor working conditions. * They are brittle, and prone to cracking and chipping. * Sintered Samarium–cobalt magnets exhibit magnetic anisotropy, meaning they can only be magnetized in the axis of their magnetic orientation.
* Almost all of SmCo arc magnet are used in high temperature permanent magnet (PM) motors, generators, and magnetic coupling devices owing to its abnormal temperature holding characteristic.
Product Description
Product Name
350 degree Samarium Cobalt High Temperature Resistant Magnet Circular Strong Magnet Customized Magnet
Material
Samarium Cobalt(Sm2Co17)
Plating
No
Size
Customized
Grade
YXG-32 or others
Max Working Temp
350°C
Used
Motor Magnet
Products Show

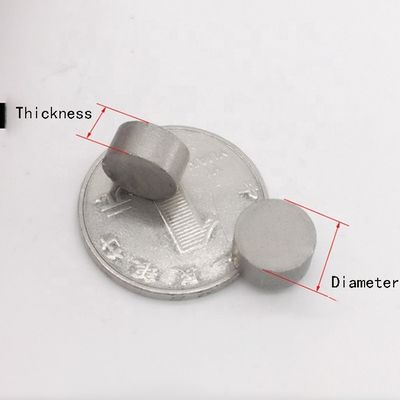

350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 1

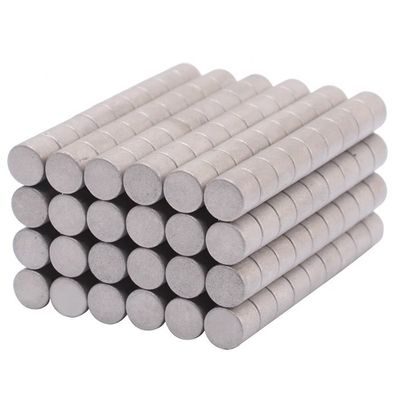

350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 2
Samarium cobalt magnets do not just excel at high temperatures, they maintain their magnetic properties even at temperatures below absolute zero (-273 oC) making them popular for cryogenic applications. These characteristics make samarium cobalt suitable for applications for the marine, automotive, aerospace, military and manufacturing industries including applications such as: * Motors and electric motors included in competitive racing of powered miniature cars
* Turbo machinery
* Travelling-wave tubes
* Pump couplings
* Sensors
* Humid environments
* High temperature applications
* Critical applications

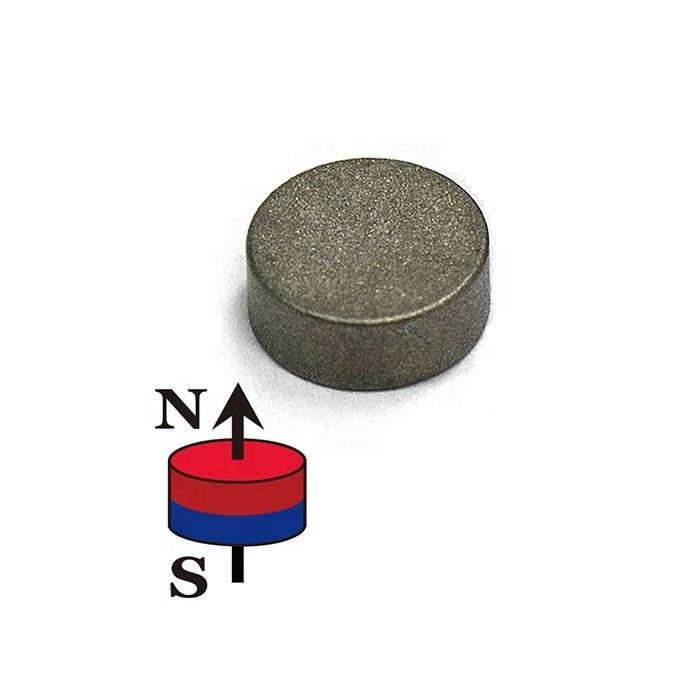

350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 3

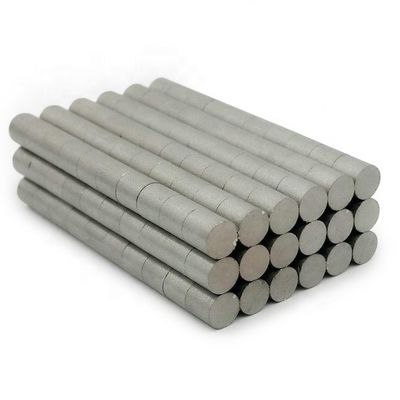

350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 4
There are two kinds of Samarium Cobalt magnet, 1:5 and 2:17. SmCo5 series is comparatively easier to machine in comparison with Sm2Co17 series. Machining process of SmCo magnet is basically finished by wire-cutting and grinding technology which totally same as Neodymium magnet.

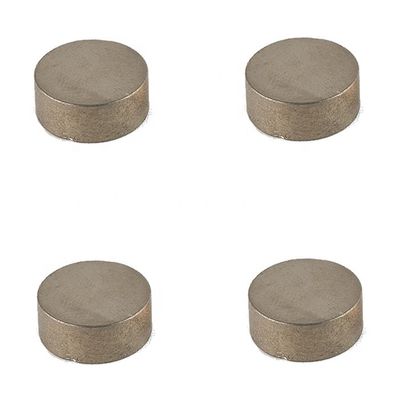

350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 5
Packing & Delivery

Packing Details  : Packing, Samarium Cobalt SmCo Motor Magnet

Delivery Details : 3-35 days after order of Samarium Cobalt SmCo Motor Magnet

350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 6

1. Special logistics packaging

350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 7

2. Suitable carton size

350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 8

3. Shock bubble film

Our Company
350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 9
350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 10
350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 11
350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 12
350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 13
Enginerring Service
350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 14

High quality


350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 15

High quality


350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 16

High quality


Our Certifications
350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 17
Customer Photos
350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 18
350 Degree Samarium Cobalt Magnet with Customized Service and ISO/TS16949 2002 System 19
FAQ

Q: Are you trading company or manufacturer ?

A: We are a professiona manufacturer of Samarium Cobalt SmCo Magnet for Motor

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ?

A: Yes, Samarium Cobalt SmCo Magnet samples should be necessary before batch order

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us.
