Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial

Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial

Large Image :  Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: N52
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $0.01 - $3.35/pieces
Packaging Details: Customized Super Strong Sintered N52 Neodymium Magnet Standard Carton or Customized

Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial

Description
Type: Permanent Composite: Neodymium Magnet
Shape: Block Application: Industrial Magnet
Tolerance: ±1% Processing Service: Cutting, Punching, Moulding
Grade: Ndfeb, 35H, 38H, 45SH, 48SH, UH, Etc Delivery Time: Within 7 Days
Product Name: Super Strong Good Quality Neodymium Block Magnets Coating: Nickel
Precise Tolerance: +/-0.05mm Main Materials: NdFeB
Size: Or Customized Quality System: ISO9001:2000
Brand: U-Polemag Neodymium Magnet Max Working Temperature: 80 Centigrade
Sample Lead Time: 15-20 Days Port: XIAMEN,SHANGHAI

Product Description
Product Name
Super Strong Good Quality N35 N52 Neodymium Block Magnets Rectangular NdFeB Magnet
Material
Neodymium-Iron-Boron
Grade
35H, 38H, 45SH, 48SH, UH or as per client's request
Size of magnet
Custom
Magnetization direction
According to client's request
Coating
NiCuNi
Certifications
ISO9001, CE, TS16949, ROHS, SGS, etc
MOQ
1 set
Products Show
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 0
Rare Earth Neodymium Arc & Segment Magnets
* Neodymium magnets are the strongest permanent. Rare-Earth magnets commercially available today with magnetic properties that far exceed other permanent magnet materials.

* Their high magnetic strength, resistance to demagnetization, low cost and versatility
make them the ideal choice for applications ranging from industrial and technical use to personal projects.
Block Magnet
* Standard N52 grade
* Max. Woking Temperature = 60 centigrade
* Applications – Neodymium block, bar and cube magnets are useful for multiple applications. From creative crafting & DIY projects to exhibition displays, furniture making, packaging, school classroom décor, home and office organizing, medical, science equipment and much more. They are also used for various design & engineering and manufacturing applications where small sized, maximum strength magnets are required. Visit our applications page to learn more.
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 1
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 2
N52 Neodymium Magnet
* Custom is available
U-POLEMAG stock basic geometric shapes in various thicknesses and premium grades ranging from N30 to N52. Finishing options
include uncoated or with a triple-coated (Ni-Cu-Ni) shiny nickel finish for optimal protection against corrosion. Not all of our
magnets are shown on this website so please contact us today if you don't see what you are looking for.

More information, click here

Grades of Neodymium Magnet

Neodymium magnets are all graded by the material they are made of. As a very general rule, the higher the grade (the number following the 'N'), the stronger the magnet. The highest grade of neodymium magnet currently available is N52. Any letter following the grade refers to the temperature rating of the magnet. If there are no letters following the grade, then the magnet is standard temperature neodymium. The temperature ratings are standard (no designation) - M - H - SH - UH - EH.
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 3

Platings/Coatings

Neodymium magnets are a composition of mostly Neodymium, Iron and Boron. If left exposed to the elements, the iron in the magnet will rust. To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the magnet to be coated. There are a variety of options for coatings, but nickel is the most common and usually preferred. Our nickel plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes our magnets much more durable than the more common single nickel plated magnets. Some other options for coating are zinc, tin, copper, epoxy, silver and gold. Our gold plated magnets are actually quadruple plated with nickel, copper, nickel and a top coating of gold.
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 4

Magnetization Orientation
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 5
Recommend Products
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 6

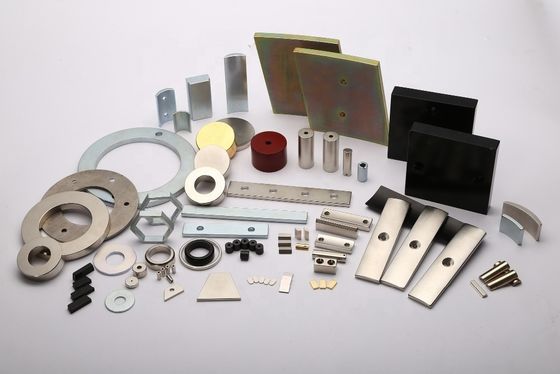

Different Types Magnets are Available
Custom Neodymium Block Magnets – We can also custom manufacturer neodymium block magnets to your exact specifications, just send us a special request and we'll help you determine the most cost effective solution for your project. U-POLEMAG has over 20 years of experience in manufacturing complex magnetic assemblies for more technical applications
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 7

More information, click here

Application
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 8
Packing & Delivery
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 9

Strong packaging inside

* With foam inside for protect magnets
* With iron plate around for air shipment
* Suitable for air / sea / express shipping

Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 10

Out side packing

* WIth poly-bag for water-proof
* With clear label for detail of magnets
* With Packing strip for protect carton

Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 11

More information, click here

Customer feedback
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 12
Our Company
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 13
VR
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 14
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 15

Factory

Our Factory 60000M²
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 16

Workshop

Our Workshop

Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 17

Warehouse

Our Warehouse

Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 18

Team

Our Team

Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 19
Rectangular NdFeB Magnet Super Strong N35 N52 Neodymium Block Magnets for Industrial 20
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
