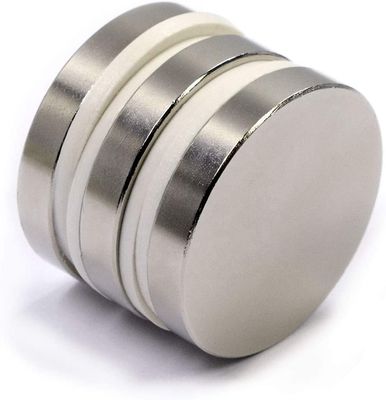

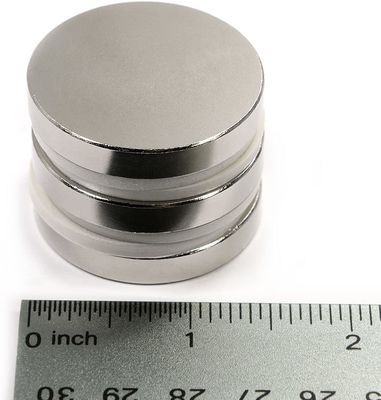

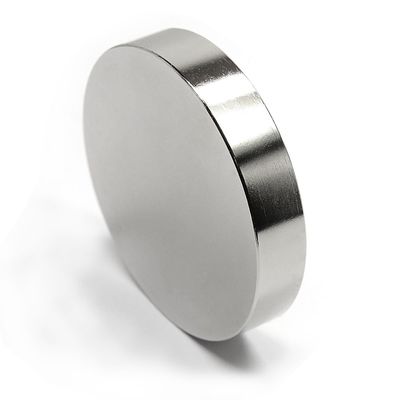

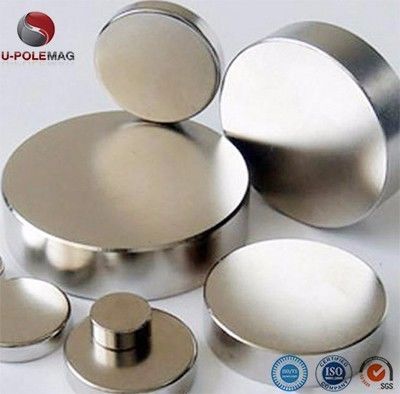

38.1x6.35mm Super Strong N52 Magnet with Precise Tolerance /-0.05mm and Nickel Plating

Large Image : 38.1x6.35mm Super Strong N52 Magnet with Precise Tolerance /-0.05mm and Nickel Plating

Product Details:

Place of Origin:	Fujian, China
Brand Name:	U-POLEMAG
Certification:	ISO14004/9001/TS16949
Model Number:	N35-N52

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$1.09/pieces 100-999 pieces
Packaging Details:	N52 Super Strong Disk Neodymium Magnets<br>Export Standard Cartons are supplied with foam well protected. We can make the packages according to customer's request. Sea packages and air packages are both available for holding magnet.
Supply Ability:	2000 Metric Ton/Metric Tons per Year N52 Super Strong Disk Neodymium Magnets

Contact Now

38.1x6.35mm Super Strong N52 Magnet with Precise Tolerance /-0.05mm and Nickel Plating

Description

Type:	Permanent	Composite:	NdFeB Magnet
Shape:	Square Or Custom	Application:	Industrial Magnet
Tolerance:	±1%	Grade:	NdFeB, N35-N52
Delivery Time:	7-15 Days	Product Name:	D38.1x6.35mm Super Strong N52 Magnet Custom Neodymium Magnet
Precise Tolerance:	+/-0.05mm	Size:	D38.1x6.35mm
Material:	Nd-Fe-B	Coating:	Ni-Cu-Ni
Sample Lead Time:	5 Days	Max Working Temperature:	80°C
Plating:	Nickel	Port:	Xiamen/Shanghai/Ningbo

20 Year’s

Professional Neodymium Magnet Manufacturer

US$1,000,000.00

Alibaba Trade Assurance to Secure Your Transaction

Top 1

Alibaba Magnets and Magnetic Assemblies Supplier

Product Description

Product Name			D38.1x6.35mm super strong N52 magnet custom neodymium magnet
Material			NdFeB
Shape			Disk
Grade			N35-N52
Size			D38.1x6.35mm
Direction of magnetisation			Axial
Strength			approx. 28 lbs
Working Temp			80°C
Weight			55g

Block Neodymium Magnet Product

-Neodymium magnet is the strongest permanent Rare-Earth magnet commercially available today with magnetic properties that far exceed other permanent magnet materials. -Their high magnetic strength, resistance to demagnetization, low cost and versatility make them the ideal choice for applications ranging from industrial and technical use to personal projects.

-We are 20 years experienced magnet manufacturer, we can custom made the neodymium magnet as per customer's requirement.

Grades of Neodymium Magnet

Neodymium magnets are all graded by the material they are made of. As a very general rule, the higher the grade (the number following the 'N'), the stronger the magnet.

The highest grade of neodymium magnet currently available is N52. Any letter following the grade refers to the temperature rating of the magnet. If there are no letters following the grade, then the magnet is standard temperature neodymium. The temperature ratings are standard (no designation) - M - H - SH - UH - EH.

Platings/Coatings

Neodymium magnets are a composition of mostly Neodymium, Iron and Boron. If left exposed to the elements, the iron in the magnet will rust. To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the magnet to be coated. There are a variety of options for coatings, but nickel is the most common and usually preferred. Our nickel plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes our magnets much more durable than the more common single nickel plated magnets. Some other options for coating are zinc, tin, copper, epoxy, silver and gold. Our gold plated magnets are actually quadruple plated with nickel, copper, nickel and a top coating of gold.

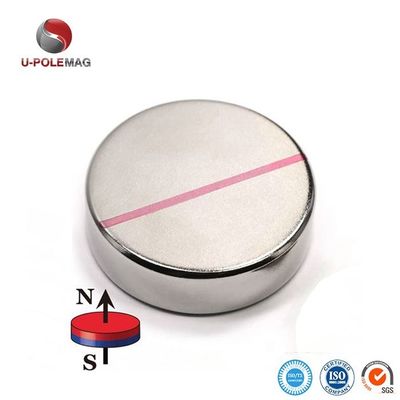

Magnetization Orientation

Customer feedback

Our Service

Engineering Service

As custom magnet manufacturers, engineering is at the heart of our business

High quality

Passed the ISO9001:2008 quality system authentication and ROHS authentication.

Valued-Service

100% guarantee for customers

More information, please click here to contact us and send an inquiry

Our Company

60,000M2 Factory Building

One-stop workshop

Testing Room

Packing Room

Sales Team

More information, please click here to contact us and send an inquiry

Packing & Delivery

Packing Details : Inner Box + Poly foam+ Carton + Plastic bag

Delivery Details : 15-25 days after order of big neodymium magnet

1. Inner box

2. Suitable carton size

3. Wooden carton

Our Exhibition

Favorable Comment

Our annual exhibition in Berlin for neodymium magnets and magnetic application products

Favorable Comment

Our annual exhibition in Chicago for neodymium magnets and magnetic application products

Favorable Comment

Our annual exhibition in Moscow for neodymium magnets and magnetic application products

FAQ

Q: Are you trading company or manufacturer ?

A: We are a professional manufacturer of magnets and magnetic application magnets more than 16 years and over 9 years as Alibaba assessed supplier with SGS certification

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
