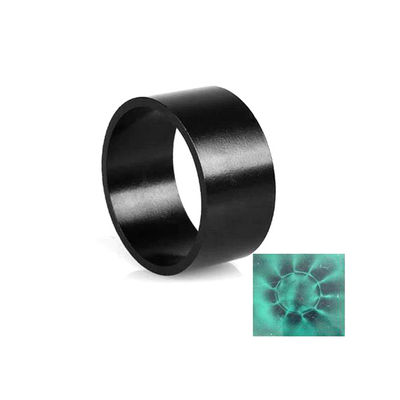

Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor

Large Image : Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor

Product Details:

Place of Origin:	Fujian, China
Brand Name:	U-POLEMAG
Certification:	ISO9001, CE, TS16949, ROHS, etc
Model Number:	N35-N52 (M.H.SH.UH.EH.AH)

Payment & Shipping Terms:

Minimum Order Quantity:	500 pieces
Price:	$3.75 - $5.99/pieces
Packaging Details:	Inner Small Box + Carton + Pallet for Multi Poles Ring Bonded Injection Neodymium Magnet with Epoxy Resin Coating
Supply Ability:	2000 Metric Ton/Metric Tons per Year boned neodymium ring magnet

Contact Now

Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor

Description

Type:	Permanent	Composite:	Neodymium Magnet
Shape:	Ring	Application:	Industrial Magnet
Tolerance:	+/-0.05mm	Processing Service:	Moulding
Grade:	NdFeB	Delivery Time:	15-30 Days
Product Name:	Ring Bonded Injection Neodymium Magnet	Main Material:	Bonded NdFeB
Size:	Custom Magnet Size	Surface Gauss:	As Request
Coating:	Black Epoxy	Precise Tolerance:	+/-0.05mm
Magnetism Direction:	8 Poles 12 Poles 20 Poles Multi Poles	Working Temp.:	150 Celsius Degree Or Request
Advantage:	Great Strength	Port:	SHANGHAI

Bonded NdFeB Magnets

Bonded Neodymium magnets are manufactured through the compression process. This process involves mixing neodymium powder with epoxy as a binder and pressing it into a die cavity with no magnetic field, thus making these magnets Isotropic. Pressed parts are then placed into the oven for curing. Compression bonded neodymium magnets are an excellent choice over other magnet types (sintered neodymium, sintered samarium cobalt, and hard ferrites) that have limits to some shapes that compression bonded magnets do not have. With their high energy product reaching up to 12 MGOe it makes them ideal for many applications requiring high magnetic strength and tight tolerances. Since no magnetic field is applied during the compression the finished product can be magnetized in any direction. Having epoxy as a binder in the manufacturing process for compression bonded magnets makes the magnets resistant to most industrial automotive fluids. With relative low tooling cost and quick turnaround compression bonded neodymium magnets are the choice for a wide variety of applications. The final product can be epoxy coated for durability and more resistant to corrosion.

Product Description

Product Name	Multi Poles Ring Bonded Injection Neodymium Magnet with Epoxy Resin Coating
Material	Bond NdFeB
Surface Gauss	As request
Size	Custom magnet size
Magnetization	Radial, Multi-poles
Coating	Black Epoxy
Performance	Br : 0.55-0.80 T (BH)max: 44-92 KJ/M3(5.5-11.5 MGOe) Working Temperature : 110-180 ℃

1. Professional neodymium magnet manufacturer over 20 years.

2. Near US$2,000,000.00 Online Transactions.

3. Top 1 Alibaba Magnets Supplier.

4. Good price and high quality with REACH, ROHS Certificate,etc.

5. Long-term stability of magnetic properties.

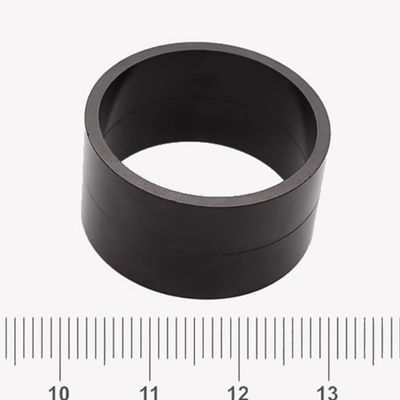

Bonded Neodymium Ring Magnet

Features:

1. High precision;
2. Excellent magnetic properties;
3. Stable working temperature;
4. Good corrosion-resistance and nice surface.

Product Advantages

Bonded Neodymium Magnet

Bonded magnet can be produced in different shapes, sizes and grades depending on the end use application. Bonded magnet offers numerous benefits over other magnet technologies including higher coercivity BH max, wider tolerance on tolerances, increased design freedom, ease of handling during assembly operations, reduced weight compared to traditional magnetic components such as blocks or rings, ability to be shaped/molded into complex geometries with intricate surface patterns for improved functionality and it can be combined with bonded magnets in a single product.

Application

Bonded Neodymium Ring Magnet

Bonded magnet is a kind of composite magnet which has the characteristics of both permanent magnet and binder material. Mainly used in office automation equipment, electrical machinery, audio-visual equipment, instrumentation, small motors and measuring machinery, mobile phones, CD-ROM, DVD-ROM drive motors, hard disk spindle motors HDD, other micro DC motors and automation instruments fields.

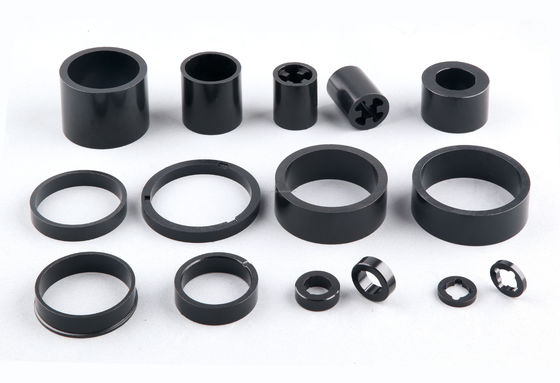

Different Types Magnets are Available

Custom Neodymium Magnets – We can also custom manufacturer neodymium block magnets to your exact specifications, just send us a special request and we'll help you determine the most cost effective solution for your project. U-POLEMAG has near 20 years of experience in manufacturing complex magnetic assemblies for more technical applications

Packing & Delivery

Custom Packing

Regular Packing

Inner Packing

* With foam inside to protect magnets
* With iron plate around for air shipment
* Suitable for air / sea / express shipping

Outer Packing

* WIth poly-bag for water-proof
* With clear label for detail of magnets
* With Packing strip for protect carton
