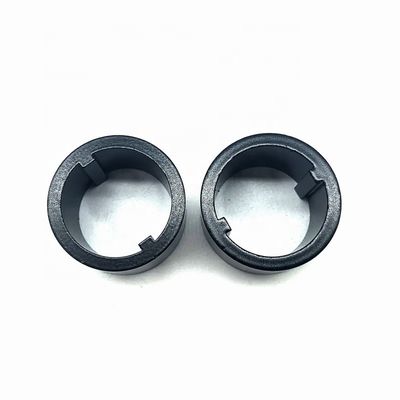

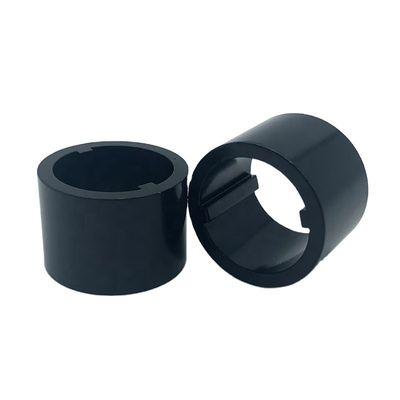

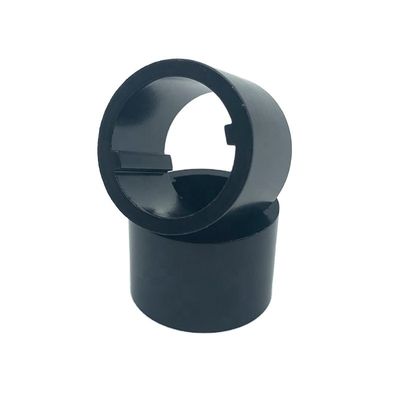

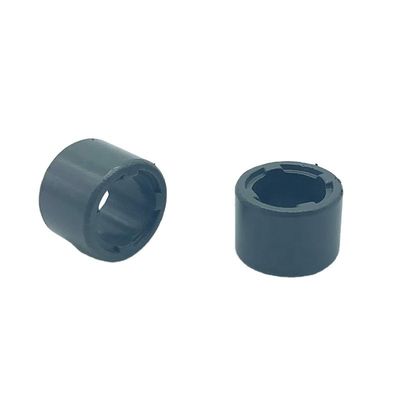

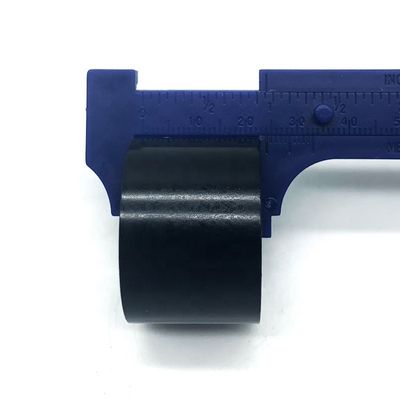

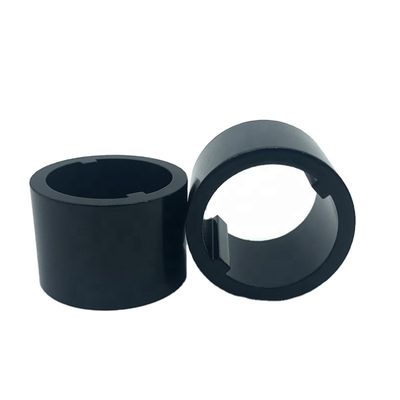

Custom Industrial Magnet for Bonded Injection Molding within Automobile Sensor in B2B

Large Image : Custom Industrial Magnet for Bonded Injection Molding within Automobile Sensor in B2B

Product Details:

Place of Origin:	Fujian, China
Brand Name:	U-POLEMAG
Model Number:	Custom

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$2.98/pieces 100-999 pieces
Packaging Details:	Neodymium Magnet comes with anti-magnetism packaging for 322522cm/carton, 0.02cbm/carton, net weight 20kg/carton, gross weight 25kg/carton
Supply Ability:	10 Ton/Tons per Month Customized Bonded Neodymium Ring Magnet

Contact Now

Custom Industrial Magnet for Bonded Injection Molding within Automobile Sensor in B2B

Description

Type:	Permanent	Composite:	Bonded Magnets
Shape:	Custom	Application:	Industrial Magnet
Tolerance:	±1%, +/-0.05mm	Processing Service:	Cutting, Punching, Moulding
Grade:	Bonded Magnets, As Customer Request	Delivery Time:	Within 7 Days
Product Name:	Bonded Magnet	Material:	Anisotropic
Max Operating Temp:	120°C	Coating:	Black Epoxy
Neodymium Magnet Density:	5.0~5.5g/cm3	Sample Time:	About 20 Days
Magnetized Direction:	Multiple Poles	Qpplication:	For Motor/Automobile Sensor

Product Description

Product Name	Customized Bonded Neodymium/NdFeB/Neodym Ring Magnet
Material	Bonded NdFeB
Coating	Black Epoxy
Max Operating Temp	150°C
Shape	Ring
Used	Industrial Magnet

Bonded Neodymium magnets are manufactured through the compression process. This process involves mixing neodymium powder with epoxy as a binder and pressing it into a die cavity with no magnetic field, thus making these magnets Isotropic. Pressed parts are then placed into the oven for curing. Compression bonded neodymium magnets are an excellent choice over other magnet types (sintered neodymium, sintered samarium cobalt, and hard ferrites) that have limits to some shapes that compression bonded magnets do not have. With their high energy product reaching up to 12 MGOe it makes them ideal for many applications requiring high magnetic strength and tight tolerances. Since no magnetic field is applied during the compression the finished product can be magnetized in any direction. Having epoxy as a binder in the manufacturing process for compression bonded magnets makes the magnets resistant to most industrial automotive fluids. With relative low tooling cost and quick turnaround compression bonded neodymium magnets are the choice for a wide variety of applications. The final product can be epoxy coated for durability and more resistant to corrosion

Products Show

Certificate

Engineering Service

As custom magnet manufacturers, engineering is at the heart of our business. U-Polemag can help you achieve an optimized magnet solution for virtually any need; by application, cost, lead time, or reliability!
Whether you need assistance with designing, engineering, or manufacturing your project to exact specifications, we have the experience and expertise to deliver custom magnets and magnetic assemblies, magnetic components, and magnetic sub-systems to your specialty requirements.
We've found that concurrent engineering from the start of a program yields the best overall results, which is why we like to work with our customers from the very start on major projects.
Request a quote or contact us to discuss your project. Our experienced team of engineers will work with you to determine the most economical way of manufacturing the magnetic assemblies you need.

U-Polemag set up new production plant for magnetic application and wind turbine generators ,having made the most of native resources and brought our advantages into full play, during the development of passed 2 years,our magnetic assemblies have ranked top all over China with annual sale being Top 1 on alibaba. Besides, with a number of research patents, our coreless wind turbine generators have received high reputations from our customers.

About U-POLEMAG

U-Polemag Industry Ltd founded in 2004, is a high technology company engaged in reaching, developing, manufacturing and marketing magnets and their application devices with ISO9001，ISO14001，ISO18001 and ISO/TS16949 certificates.

As a supplier of magnetic material and devices, by taking markets as the orientation and customers’ demands as criterion,
U-polemag continuously improves technologies and products, and insists in providing customers with first-class goods and services.

With years of development and accumulation, we can supply high quality neodymium magnets ,samarium cobalt magnets, ceramic magnets and various of customized magnetic application products such as magnetic holders magnetic coupling, motor parts, speaker divers and so on

FAQ

Q: May we get a sample of the product? How to ship and how to pay ?

A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.

Q: What magnet materials are available?

A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.

Q:Can you supply custom magnets?

A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .

Q:Do you have a minimum purchase order?

A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .

Q: How many days does it take to ship my order?

A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .

Q:What elements affect the magnet price ?

A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
