Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force

Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force

Large Image :  Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Certification: ISO 9001: 2015 ROHS REACH CE
Model Number: N52
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $0.49/pieces 100-499 pieces
Packaging Details: 35x25x15cm standard exporting cartons package for magnet for N52 D32x2mm Disc Magnets
Supply Ability: 2000 Ton/Tons per Year Customized Ferrite magnet disc used for industrial field
Contact Now

Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force

Description
Type: Permanent Composite: Neodymium Magnet
Shape: Disc Application: Industrial Magnet
Tolerance: ±1% Processing Service: Cutting, Punching, Moulding
Grade: Neodymium Magnet, N35-N52 (M.H.SH.UH.EH.AH) Delivery Time: Within 7 Days
Product Name: Neodymium Magnet Coating: Epoxy.Black Epoxy. Nickel.Silver.etc
Size: Customized Magnet Size Magnetism Direction: Thickness. Axial. Radial
Usage: Industrial Usage Magnet Shape: Round,Disc,Block,Ring,Arc Or Special Customization
Material: Rare Earth Neodymium Magnet Working Temperature: 80-220 Degree Centigrade
Port: Shanghai/xiamen Port

Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 0
Products Description

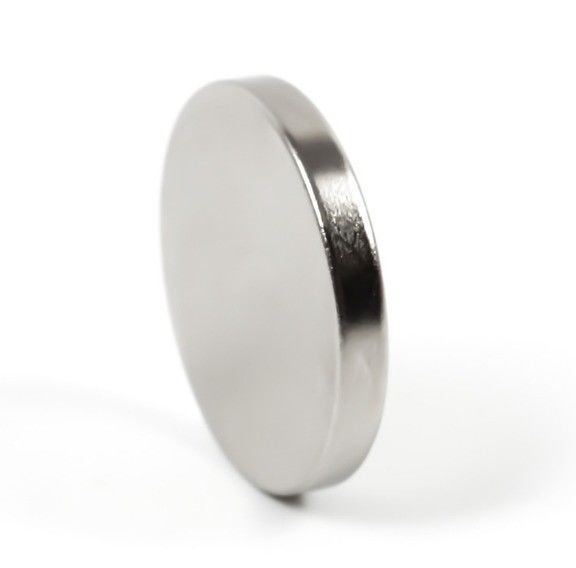

High Performance Neodymium Disc Magnet 10mm x 2mm for Various Uses

Our 4000 Gauss strong permanent neodymium magnets in a disc shape with an N52 rating are the perfect solution for all your magnet needs. Made from high-quality neodymium material, these magnets are built to last and provide exceptional strength and durability for a variety of applications.

With their disc shape, these magnets are versatile and easy to use, making them suitable for use in a wide range of projects and settings. Whether you're a professional in need of strong magnets for an industrial application or someone working on a DIY project, our neodymium magnets are a reliable and affordable choice.

At our company, we believe in offering high-quality products at competitive prices. We stand behind the quality of our products, and we are committed to customer satisfaction. So why wait? Order your 4000 Gauss strong permanent neodymium magnets in a disc shape today and experience their power and versatility for yourself!
Table of Magnet Properties
Grade
Residual magnetism
Coercive field strength
Energy product
Max.
operational
temp.
Br
bHc
iHc
(BxH)max
Gauss (G)
Tesla (T)
kOe
kA/m
kOe
kA/m
MGOe
kJ/m³
°C
N30
10800-11200
1.08-1.12
9.8-10.5
780-836
≥12
≥955
28-30
223-239
≤80
N33
11400-11700
1.14-1.17
10.3-11
820-876
≥12
≥955
31-33
247-263
≤80
N35
11700-12100
1.17-1.21
10.8-11.5
860-915
≥12
≥955
33-35
263-279
≤80
N38
12200-12600
1.22-1.26
10.8-11.5
860-915
≥12
≥955
36-38
287-303
≤80
N40
12600-12900
1.26-1.29
10.5-12.0
860-955
≥12
≥955
38-40
303-318
≤80
N42
12900-13200
1.29-1.32
10.8-12.0
860-955
≥12
≥955
40-42
318-334
≤80
N45
13200-13700
1.32-1.37
10.8-12.5
860-995
≥12
≥955
43-45
342-358
≤80
N48
13700-14200
1.37-1.42
10.8-12.5
860-995
≥12
≥955
45-48
358-382
≤80
N50
14000-14600
1.40-1.46
10.8-12.5
860-995
≥12
≥955
47-51
374-406
≤80
N52
14200-14700
1.42-1.47
10.8-12.5
860-995
≥12
≥955
48-53
380-422
≤65
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 1

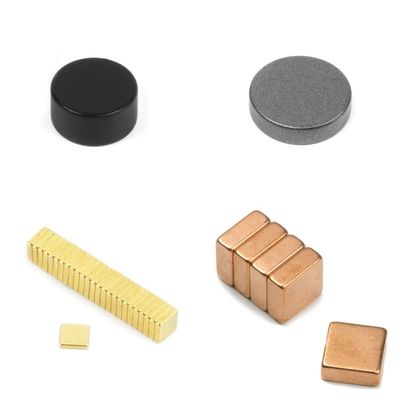

Magnet Plating and Coating Options
The following is a list and description of common plating options for custom magnets.Why do magnets need to be plated?

★ Oxidization (Rust)
NdFeB magnets will oxidize(rust) if left exposed. When a plating wears down or cracks, the exposed area will oxidize. An oxidized area will not result in complete degradation of the magnet, only the oxidized area will lose its strength. However the magnet will lose some structural integrity and become more susceptible to breakage.

★ Durability
Depending on shape, permanent magnet substrate is brittle. A multilayered metal plating like nickel or zinc improves the magnets resistance to chipping and wear, particularly around corners.

★ Harsh Environments
Platings vary in their tolerance of different harsh chemicals and abrasion. Salt and humidity in regions near the ocean are
commonly overlooked when selecting a plating. Be sure to consider the magnets environment when selecting a plating.

The most common type of plating for neodymium magnets Nickel (Ni-Cu-Ni) Intended for indoor use. It has proven to be very resilient when subjected to normal wear and tear. However it will corrode oudoors in prolonged exposure to salt water, salty air,or harsh chemicals.
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 2
Magnetization Direction
A Magnetic field is an invisible flux moving from one end of the magnet to the other. Shown in Figure1. The flux consists of
moving or spinning electrically charged particles invisible to the eye. If the max working temperature meet the requirement ,permanent magnets can retain the magnetic field for very long time even forever. Magnets have potential energy which means that they have the ability to conserve energy. The magnet will display or release some of its conserved energy when pulling towards or attaching to something then conserve or store the energy that the user exerts when pulling it off.

Every magnet has a north seeking and a south seeking face on opposite ends. The north face of one magnet will always be attracted towards the south face of another magnet.
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 3
Application Fields
Neodymium magnets are strong magnets,frequently used for many types of sectors, commercial, industrial & technical applications where strong permanent magnets are required. Due to their high-magnetic strength, components that previously had to be large and heavy can now be miniaturized by using Neodymium magnet material.Common Applications: holding systems requiring very high holding forces, sensors, reed switches, hard disc drives, audio equipment, acoustic pick-ups, headphones & loudspeakers, MRI scanners, magnetically coupled pumps · motors & generators, magnetic tool holders, magnetic bearings, door catches, dental instruments, medical devices, magnetic separators, lifting machinery, crafts & model making, hanging artwork, levitation devices, POP displays, commercial signage, packaging closures, jewelry clasps & more.

U-Polemag can make large inventory of Neodymium magnets in disc, block, rod , ring , arc & customized irregular shapes, in a wide range of shapes, sizes and grades. Just let us know what you are looking for by sending us a request for quote or contact us to discuss your specialty project.
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 4
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 5
Why Choose Us
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 6
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 7
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 8
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 9

Advanced Facilities

Excellent production equipment
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 10

Product Testing

Strict product testing process
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 11

Engineering Service

Meet all customer needs
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 12
About U-POLEMAG
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 13
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 14
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 15
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 16
U-Polemag Industry Ltd founded in 2004, is a high technology company engaged in reaching, developing, manufacturing and marketing magnets and their application devices with ISO9001，ISO14001，ISO18001 and ISO/TS16949 certificates.

As a supplier of magnetic material and devices, by taking markets as the orientation and customers’ demands as criterion,
U-polemag continuously improves technologies and products, and insists in providing customers with first-class goods and services.

With years of development and accumulation, we can supply high quality neodymium magnets ,samarium cobalt magnets, ceramic magnets and various of customized magnetic application products such as magnetic holders magnetic coupling, motor parts, speaker divers and so on
VR
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 17
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 18
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 19
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 20
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 21
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 22
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 23
Industrial Magnet Permanent Neodymium Magnets Disc N52 with 4000 Gauss Magnetic Force 24
FAQ

Q: May we get a sample of the product? How to ship and how to pay ?

A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.

Q: What magnet materials are available?

A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.

Q:Can you supply custom magnets?

A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .

Q:Do you have a minimum purchase order?

A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .

Q: How many days does it take to ship my order?

A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .

Q:What elements affect the magnet price ?

A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
