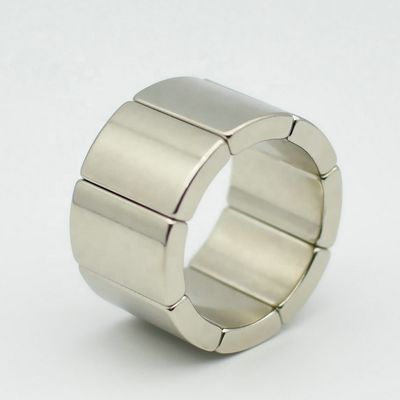

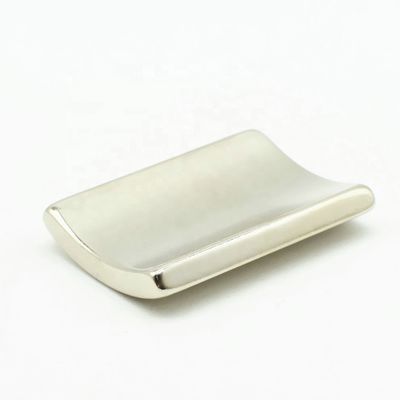

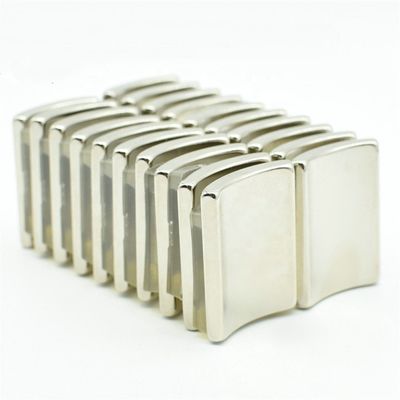

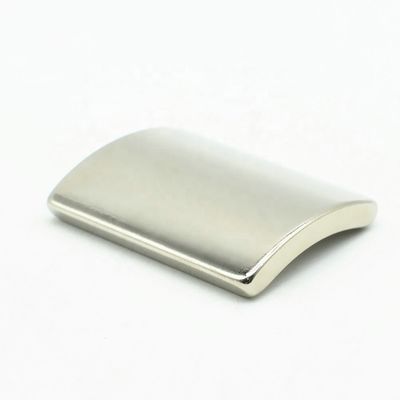

Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator

Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator

Large Image :  Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Certification: ROHS
Model Number: Customer
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: $0.69/pieces 20-499 pieces
Packaging Details: Neodymium Magnet Standard Carton or Customized
Supply Ability: 50000 Piece/Pieces per Month
Contact Now

Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator

Description
Type: Permanent Composite: Neodymium Magnet
Shape: Arc Application: Industrial Magnet
Tolerance: ±1% Processing Service: Cutting, Punching, Moulding
Grade: Neodymium Magnet, Customize Delivery Time: 15-21 Days
Product Name: Trapezoid Or Wedge Neodymium Magnet Coating: NiCuNi
Precise Tolerance: +/-0.05mm Size: Custom
Brand: U-Polemag Neodymium Magnet Sample Lead Time: 15-20 Days
Magnetism Direction: Customzied Specific Requirements Max Working Temperature: 80 Celsius
Port: Shanghai

Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 0
Products Description

High-Temp N52 Neodymium Segment Magnets Fan-Shaped Strong Sector for Tile Alternator

These high-performance neodymium segment magnets are made of premium N52 neodymium material, which provides ultra-strong magnetic force and can withstand high operating temperatures up to 80°C. The fan-shaped design allows efficient use of space in rotating equipment like alternators and generators.

N52 is the highest grade of neodymium alloy, indicating maximum energy density and temperature resistance. Magnets produced from this material can deliver high strength in small sizes and in a wide range of temperature conditions. They are ideal for use in high-heat and high-stress environments where normal magnets would fail.

The sector / segment shape concentrates the magnetic field to a precise area, providing targeted attraction and high holding forces. It is suitable for applications where circular magnets are inconvenient or where minimal spatial influence is critical.The tile configuration also allows for flexible customized layouts and arrangements.

These exceptional magnets can be used in various commercial and industrial equipment such as alternators, generators, sensors, holding devices, lifting equipment, and magnetic separation systems. They provide an ideal solution whenever the strongest and most durable magnetic forces are needed in a compact space.

•Premium N52 neodymium material for maximum heat resistance and energy density
•Powerful magnetic strength in a small fan-shaped size
•Sector / segment shape focuses the magnetic field for targeted attraction
•Tile configuration allows flexible magnetic assemblies and layouts
•Withstands high operating temperatures up to 80°C
•Ideal for high-heat and high-stress environments where maximum durability is required
•Wide applications in alternators, generators, sensors, lifting devices, separators, etc.
Table of Magnet Properties
Grade
Residual magnetism
Coercive field strength
Energy product
Max.
operational
temp.
Br
bHc
iHc
(BxH)max
Gauss (G)
Tesla (T)
kOe
kA/m
kOe
kA/m
MGOe
kJ/m³
°C
N30
10800-11200
1.08-1.12
9.8-10.5
780-836
≥12
≥955
28-30
223-239
≤80
N33
11400-11700
1.14-1.17
10.3-11
820-876
≥12
≥955
31-33
247-263
≤80
N35
11700-12100
1.17-1.21
10.8-11.5
860-915
≥12
≥955
33-35
263-279
≤80
N38
12200-12600
1.22-1.26
10.8-11.5
860-915
≥12
≥955
36-38
287-303
≤80
N40
12600-12900
1.26-1.29
10.5-12.0
860-955
≥12
≥955
38-40
303-318
≤80
N42
12900-13200
1.29-1.32
10.8-12.0
860-955
≥12
≥955
40-42
318-334
≤80
N45
13200-13700
1.32-1.37
10.8-12.5
860-995
≥12
≥955
43-45
342-358
≤80
N48
13700-14200
1.37-1.42
10.8-12.5
860-995
≥12
≥955
45-48
358-382
≤80
N50
14000-14600
1.40-1.46
10.8-12.5
860-995
≥12
≥955
47-51
374-406
≤80
N52
14200-14700
1.42-1.47
10.8-12.5
860-995
≥12
≥955
48-53
380-422
≤65
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 1
Magnet Plating and Coating Options
The following is a list and description of common plating options for custom magnets.Why do magnets need to be plated?

★ Oxidization (Rust)
NdFeB magnets will oxidize(rust) if left exposed. When a plating wears down or cracks, the exposed area will oxidize. An oxidized area will not result in complete degradation of the magnet, only the oxidized area will lose its strength. However the magnet will lose some structural integrity and become more susceptible to breakage.

★ Durability
Depending on shape, permanent magnet substrate is brittle. A multilayered metal plating like nickel or zinc improves the magnets resistance to chipping and wear, particularly around corners.

★ Harsh Environments
Platings vary in their tolerance of different harsh chemicals and abrasion. Salt and humidity in regions near the ocean are
commonly overlooked when selecting a plating. Be sure to consider the magnets environment when selecting a plating.

The most common type of plating for neodymium magnets Nickel (Ni-Cu-Ni) Intended for indoor use. It has proven to be very resilient when subjected to normal wear and tear. However it will corrode oudoors in prolonged exposure to salt water, salty air,or harsh chemicals.
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 2
Magnetization Direction
A Magnetic field is an invisible flux moving from one end of the magnet to the other. Shown in Figure1. The flux consists of
moving or spinning electrically charged particles invisible to the eye. If the max working temperature meet the requirement ,permanent magnets can retain the magnetic field for very long time even forever. Magnets have potential energy which means that they have the ability to conserve energy. The magnet will display or release some of its conserved energy when pulling towards or attaching to something then conserve or store the energy that the user exerts when pulling it off.

Every magnet has a north seeking and a south seeking face on opposite ends. The north face of one magnet will always be attracted towards the south face of another magnet.
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 3
Application Fields
Neodymium magnets are strong magnets,frequently used for many types of sectors, commercial, industrial & technical applications where strong permanent magnets are required. Due to their high-magnetic strength, components that previously had to be large and heavy can now be miniaturized by using Neodymium magnet material.Common Applications: holding systems requiring very high holding forces, sensors, reed switches, hard disc drives, audio equipment, acoustic pick-ups, headphones & loudspeakers, MRI scanners, magnetically coupled pumps · motors & generators, magnetic tool holders, magnetic bearings, door catches, dental instruments, medical devices, magnetic separators, lifting machinery, crafts & model making, hanging artwork, levitation devices, POP displays, commercial signage, packaging closures, jewelry clasps & more.

U-Polemag can make large inventory of Neodymium magnets in disc, block, rod , ring , arc & customized irregular shapes, in a wide range of shapes, sizes and grades. Just let us know what you are looking for by sending us a request for quote or contact us to discuss your specialty project.
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 4
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 5
Why Choose Us
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 6
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 7

Advanced Facilities

Excellent production equipment
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 8

Product Testing

Strict product testing process
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 9

Engineering Service

Meet all customer needs
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 10
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 11
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 12
About U-POLEMAG
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 13
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 14
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 15
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 16
U-Polemag Industry Ltd founded in 2004, is a high technology company engaged in reaching, developing, manufacturing and marketing magnets and their application devices with ISO9001，ISO14001，ISO18001 and ISO/TS16949 certificates.

As a supplier of magnetic material and devices, by taking markets as the orientation and customers’ demands as criterion,
U-polemag continuously improves technologies and products, and insists in providing customers with first-class goods and services.

With years of development and accumulation, we can supply high quality neodymium magnets ,samarium cobalt magnets, ceramic magnets and various of customized magnetic application products such as magnetic holders magnetic coupling, motor parts, speaker divers and so on
VR
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 17
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 18
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 19
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 20
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 21
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 22
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 23
Max Working Temperature 80 Celsius Fan-Shaped Strong Sector for Fan-Shaped Alternator 24
FAQ

Q: May we get a sample of the product? How to ship and how to pay ?

A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.

Q: What magnet materials are available?

A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.

Q:Can you supply custom magnets?

A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .

Q:Do you have a minimum purchase order?

A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .

Q: How many days does it take to ship my order?

A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .

Q:What elements affect the magnet price ?

A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
