Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic

Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic

Large Image :  Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: Isotropic/Anistropic
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $13.85 - $20.75/pieces
Packaging Details: N/S Pole 50mm AGV Guiding Flexible Rubber Magnetic Tape with Adhesive<br>Supplier standard air or vessel shipment packing or as customers' request for Rubber Magnet
Supply Ability: 2000 Ton/Tons per Month Magnetic Tape with Adhesive
Contact Now

Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic

Description
Type: Soft Composite: Rubber Magnet
Shape: Strip Application: Industrial Magnet, AGV Guiding
Tolerance: ±10% Processing Service: Cutting, Moulding
Grade: Magnetic Tape With Adhesive Delivery Time: 15-21 Days
Product Name: N/S Pole 50mm AGV Guiding Flexible Rubber Magnetic Tape With Adhesive Material: Isotropic/Anistropic
Surface Treatment: UV Oil, Adhesive Etc Width: 50mm
Thickness: 1-3mm Magnetism Direction: N/S Pole
Technology: Calendering Process Working Temperature: 80°C
Environment Management Systerm: ISO14001:2004 Port: Shanghai

Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 0

Flexible Rubber Magnets

Rubber magnet is one of the series of ferrite magnets. It is made of bonded ferrite powder and synthetic rubber by extrusion, calendering and injection moulding. It can be processed into strips, rolls, sheets and various complex shapes.

U-POLEMAG is an experienced manufacturer of magnets and magnetic assemblies,more than 13 years as verified supplier with TOP 1 online trade assurance limit in Alibaba. Not all of our magnets are shown on this website, so please contact us if you don't see what you are looking for.

Applications – Refrigerators, message boards, fasteners that fix objects to metal bodies for advertising, also used for magnetic discs of toys, teaching instruments, switches and sensors. Mainly used in micro and special motors, refrigerators, disinfection cabinets, kitchen cabinets, toys, stationery, advertising and other industries. Visit our applications page to learn more.

Custom Rubber Magnets – According to the size required to adjust the shape, rubber magnet can also be coverd with PVC, back glue, UV oil and so on. Its magnetic energy product is between 0.60 and 1.50 MGOe., just send us a special request and we'll help you determine the most cost effective solution for your project. U-POLEMAG has over 18 years of experience in manufacturing complex magnetic assemblies for more technical applications.
Product Description
Product Name
N/S Pole 50mm AGV Guiding Flexible Rubber Magnetic Tape with Adhesive
Material
Isotropic/Anisotropic
Surface treatment
PVC, Adhesive, Plain etc.
Width
30mm/50mm
Thickness
1-3mm
Length
25mm/roll or 50m/roll
Magnetized direction
N/S pole
Application
 electronic & electric industry, daily necessary industry, motor stator and rotor, family education, printing and decoration etc.
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 1

    • Flexible Rubber Magnet



Rubber magnets are made of bonded ferrite magnet powder, compound rubber and other materials. By extruding, rolling or injecting,

the combination can be made into soft, plastic and flexible magnets with different shapes which according to the requests of
clients. The surface of rubber magnets can be stick on different kinds of printing papers, synthetic papers, PVC, self-adhesive
tape and metal sheet, etc.


Flexible Rubber Magnet

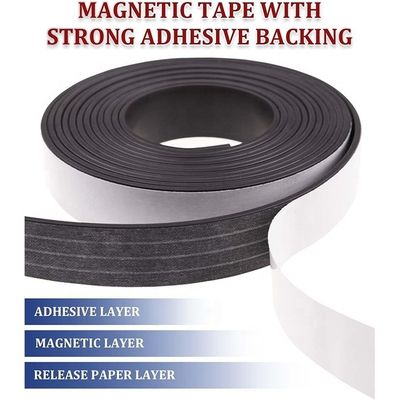

Adhesive magnet is laminated Flexible magnets adhered to various kinds of PVC, PP, double-sided tape. The colors of films are
various. It is normally used on teaching, children's toys, gifts and advertising. The magnetization (pole-width 2, 4, 7 mm or
12.7/6.4/3.6 poles per inch) or be decided according to customers' needs.

We have regular strength or high energy products, with energy product from 0.6 to 1.7 MGO, thickness from 0.5 to 9 mm thick, in
lengths up to users' specification. Customer cutting slitting, die-cutting, scoring or score-cutting to customers' specifications
are also available.
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 2
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 3
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 4

Two poles - N & S pole

Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 5

Magnet for AGV guiding

The magnetic tape is used to guide the vehicle. The black line is the magnetic tape.When you put the tape on the groud,the magnetic sensor can detect the strip, and then AGV will run along it.
Manufacturing Technique
Process Flow of Rubber Magnets
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 6
Magnetic Characteristics of Rubber Magnets
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 7
Various Magnetized Direction of Rubber Magnets
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 8
Application
AGV navigation magnetic strip is one of the series of ferrite magnets, by binding with synthetic rubber compound soft ferrite powder, after rolling forming technology were made, with softness, elasticity and twisted bars magnets. Mainly as a magnetic navigation line shop is located in the ground, automatic guided AGV, automatic trolley the operation of AGC, trackless mobile shelves. The type magnetic strip flexibility is strong, can be bent and folded, does not damage the magnetism; Plasticity, the ability to cut into long degrees.
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 9

Other applications of magnetic tapes

Among other applications of magnetic tapes, are the labeling for storage shelves in offices or shops and advertising signs on metal surfaces, or on other surfaces such as billboards, cars and shelves, among others. In addition, among other applications of magnetic tapes are found:

1. Magnets or photographs for refrigerators or metal boards.
2. Magnetic ski rack for cars.
3. Signposting of places or documents

Magnetic tapes are available in a variety of colors and come in A4 formats, but can be cut to any size, depending on the intended use. These usually have a strong magnetism which, as explained above, allows them to adhere to any ferrous metal object for a variety of purposes. Like permanent magnets, magnetic tapes retain their magnetism once magnetized
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 10
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 11
Packing&Shipping
Packing Details : 5ly carton package of flexible rubber magnet strip
Delivery Details : 20-25 days after order of flexible rubber magnet strip
Shipping Details: By express(DHL, TNT and UPS), By sea, By track ect.
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 12
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 13
Company Introduction
U-Polemag Industry Ltd founded in 2004 is a high technology company engaged in reaching, developing, manufacturing and marketing magnets and their application devices with ISO9001, ISO14001, ISO18001 and ISO/TS16949 certificates. As a supplier of magnetic material and devices, by taking markets as the orientation and customers’ demands as criterion, U-polemag continuously improves technologies and products, and insists in providing customers with first-class goods and services. With years of development and accumulation, we can supply high quality neodymium magnets, samarium cobalt magnets, ceramic magnets and various of customized magnetic application products such as magnetic holders, magnetic coupling, motor parts, speaker divers and so on; And we self-developed coreless vertical wind turbine generators with independent intellectual property rights. All for customers, more than a promise. We will be more positive, more pragmatic, keep an open mind, insist on the business philosophy of "commitment to innovation, exceed customer demand; focusing on management improvement, pursuit of win-win". U-Polemag ‘s staff, with concerted and pioneering efforts, will further promote the sustained and healthy development of our company .For us, “Made in China” is more than just competitive price – it’s our brand and mission for new level, we would like be one of a kind in China.
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 14
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 15
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 16
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 17
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 18
Why Choose US
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 19
Flexible Rubber Magnetic Tape for AGV Guiding 50mm N/S Pole Isotropic/Anisotropic 20
FAQ
Q: Are you trading company or manufacturer ?

A: We are a professional manufacturer of neodymium magnets and magnetic assemblies more than 18 years and over 13 years as Alibaba assessed supplier with BV certification.

Q: How long is your delivery time for flexible rubber magnets?

A: Generally it is 5-10 days if the magnets are in stock. Or it is 20-25 days if the magnets are not in stock, it is according to quantity.

Q: Do you provide samples for flexible rubber magnets? is it free or extra ?

A: Yes, we could offer the sample for free charge if we have stock but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shipment.
