Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature

Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature
Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature

Large Image :  Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature

Product Details:
Place of Origin: Zhejiang, China
Brand Name: U-POLEMAG
Model Number: YXG-32
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $2.00 - $9.00/pieces
Packaging Details: Standard export packing. PCS/CTN, CTNS/PLT, CTNS/Wooden carton . PLTS/Container Samarium Cobalt Magnets SmCo Disc Magnet
Supply Ability: 2000 Metric Ton/Metric Tons per Year SmCo Disc Magnet
Contact Now

Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature

Description
Type: Permanent Composite: Rare Earth Magnet
Shape: Customized Application: Industrial Magnet, SmCo Magnet For Motor, Sensor Etc
Tolerance: ±10% Processing Service: Cutting, Moulding
Grade: SmCo Delivery Time: 22-30 Days
Name: SmCo Disc Round Magnet Material: SmCo5(1:5) Or Sm2Co17(2:17)
Density: 7.3-7.5 G/cm³ BH Value: 16 MGOe-32MGOe
Size: Custom Magnet Size Plating: No Or Others
Max Working Temperature: 350 ℃ Advantage: Corrosion Resistance And Oxidation Resistance
Quality Systerm: ISO/TS16949:2002 Port: Xiamen Or Shanghai

Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 0
A samarium–cobalt (SmCo) magnet, a type of rare-earth magnet, is a strong permanent magnet made of two basic elements: samarium and cobalt.
* Samarium-cobalt magnets are extremely resistant to demagnetization. * These magnets have good temperature stability (maximum use temperatures between 250 °C (523 K) and 550 °C (823 K); Curie temperatures from 700 °C (973 K) to 800 °C (1,070 K). * They are expensive and subject to price fluctuations (cobalt is market price sensitive). * Samarium–cobalt magnets have a strong resistance to corrosion and oxidation resistance, usually do not need to be coated and can be widely used in high temperature and poor working conditions. * They are brittle, and prone to cracking and chipping. * Sintered Samarium–cobalt magnets exhibit magnetic anisotropy, meaning they can only be magnetized in the axis of their magnetic orientation.
* Almost all of SmCo arc magnet are used in high temperature permanent magnet (PM) motors, generators, and magnetic coupling devices owing to its abnormal temperature holding characteristic.
Product Description
Product Name
350 Degree High working temperature SmCo Disc Round Magnet for Sensor System
Material
Sm-Co
Plating
No
Size
Customized
Grade
YXG-32 or others
Max Working Temp
350°C
Used
Motor Magnet, Sensor Magnet
Products Show

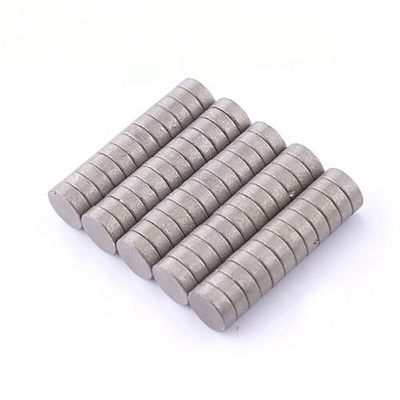

Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 1

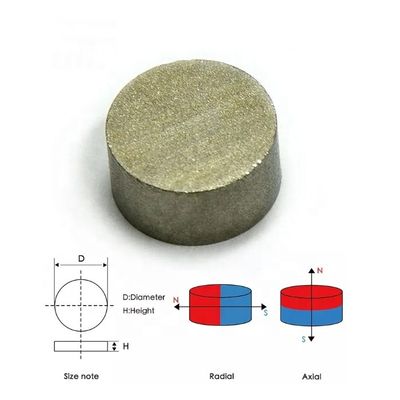

Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 2

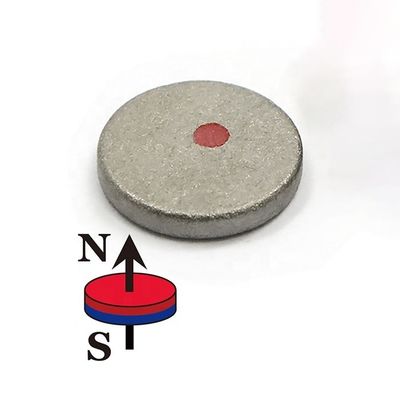

Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 3
There are two kinds of Samarium Cobalt magnet, 1:5 and 2:17. SmCo5 series is comparatively easier to machine in comparison with Sm2Co17 series. Machining process of SmCo arc magnet is basically finished by wire-cutting and grinding technology which totally same as Neodymium arc magnet.

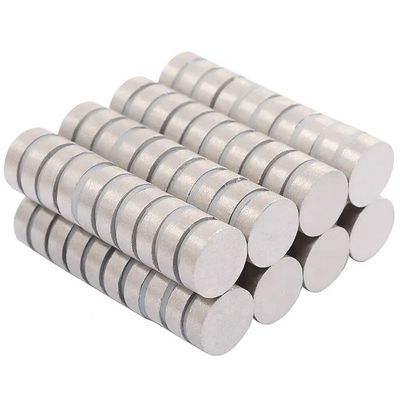

Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 4
Packing & Delivery

Packing Details  : Packing, Samarium Cobalt SmCo Disc Magnet

Delivery Details : 3-35 days after order of Samarium Cobalt SmCo Disc Magnet

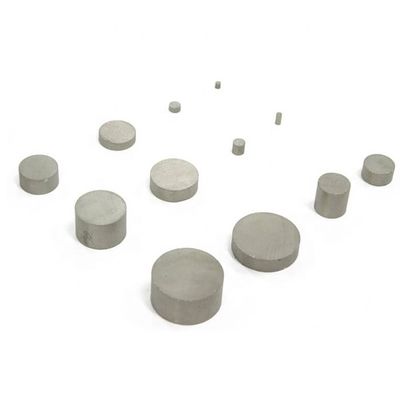

Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 5

1. Special logistics packaging

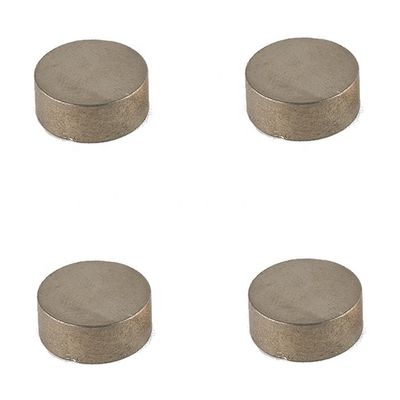

Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 6

2. Suitable carton size

Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 7

3. Shock bubble film

Our Company
Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 8
Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 9
Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 10
Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 11
Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 12
Enginerring Service
Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 13

High quality


Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 14

High quality


Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 15

High quality


Our Certifications
Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 16
Customer Photos
Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 17
Sensor System SmCo Disc Magnet Tolerance ±10% Density 7.3-7.5 g/cm3 High Temperature 18
FAQ

Q: Are you trading company or manufacturer ?

A: We are a professiona manufacturer of Samarium Cobalt SmCo Magnet for Sensor

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ?

A: Yes, Samarium Cobalt SmCo Magnet samples should be necessary before batch order

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us.
