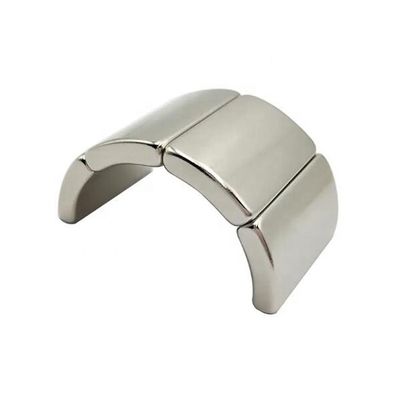

N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators

N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators

Large Image :  N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: N35-N55 (M.H.SH.UH.EH.AH)
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $2.90 - $6.90/pieces
Packaging Details: Inner Small Box + Carton + Pallet for Neodymium Arc Magnet
Supply Ability: 2000 Metric Ton/Metric Tons per Year N42 arc motor magnet
Contact Now

N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators

Description
Type: Permanent Composite: Neodymium Magnet
Shape: Arc Application: Industrial Magnet, Motor Magnet For Generators Wind Turbine Neodymium Brushless Rotor
Tolerance: +/-0.1mm Processing Service: Cutting, Moulding
Grade: NdFeB, N35-N55 (M.H.SH.UH.EH.AH) Delivery Time: 15-30 Days
Product Name: N42 Arc Motor Magnet Size: Custom Magnet Size
Coating: Nickel, Zinc, Epoxy Etc. Max Working Temp.: 80 Celsius Degree Or Higher
Precise Tolerance: +/-0.1mm Magnetism Direction: Axially, Diametrically, Thru Chord
Advantage: Super Strong Holding Force Quality System: ISO9001:2000
Port: Xiamen

N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 0
Neodymium Magnet
A neodymium magnet (also known as NdFeB, NIB or Neo magnet) is a permanent magnet made from an alloy of neodymium, iron, and boron to form the Nd2Fe14B tetragonal crystalline structure. Neodymium magnet are the most widely used type of rare-earth magnet. NdFeB magnets can be classified as sintered or bonded, depending on the manufacturing process used. They have replaced other types of magnets in many applications in modern products that require strong permanent magnets, such as electric motors in cordless tools, hard disk drives and magnetic fasteners. Neodymium arc magnets are unique in shape and are designed for use within permanent magnet motors and generators due to the configuration of their north and south polarities.
Product Description
Product Name
N42 NdFeB Arc Segment Strong Motor Magnets for Generators Wind Turbine Rotor Neodymium Permanent Magnet
Material
Neodymium-Iron-Boron
Grade
N55/N52 - N35 etc.
Size
Custom magnet size
Magnetization
As requests
Coating
NiCuNi, Epoxy ect
Certifications
ISO9001, CE, TS16949, ROHS, etc
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 1



1. Professional neodymium magnet manufacturer over 20 years.

2. Near US$2,000,000.00 Online Transactions.

3. Top 1 Alibaba Magnets Supplier.

4. Good price and high quality with REACH, ROHS Certificate,etc.

5. Long-term stability of magnetic properties.

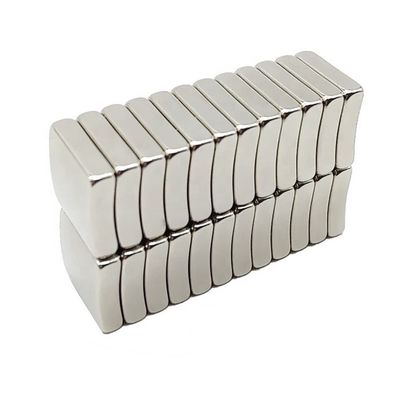

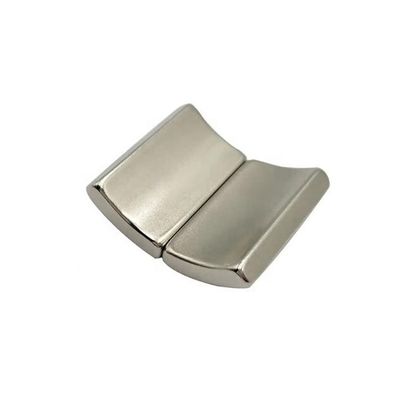

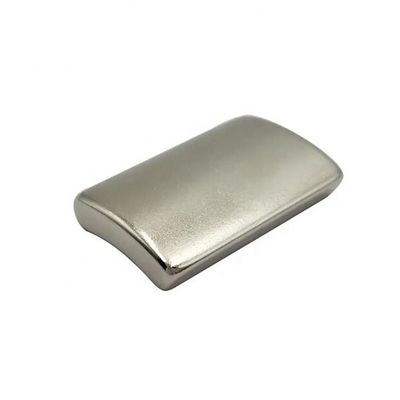

Products Show
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 2
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 3
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 4
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 5
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 6

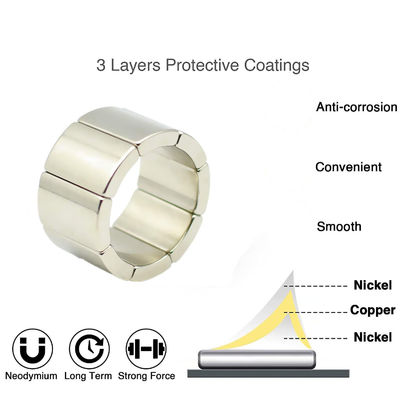

Platings/Coatings

Neodymium magnets are a composition of mostly Neodymium, Iron and Boron. If left exposed to the elements, the iron in the magnet will rust. To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the magnet to be coated. There are a variety of options for coatings, but nickel is the most common and usually preferred. U-POLEMAG's nickel plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes our magnets much more durable than the more common single nickel plated magnets. Some other options for coating are zinc, tin, copper, epoxy, silver and gold. Our gold plated magnets are actually quadruple plated with nickel, copper, nickel and a top coating of gold.
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 7

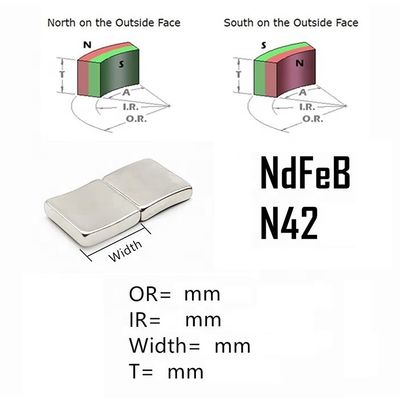

Magnetization Options

A Magnetic field is an invisible flux moving from one end of the magnet to the other. The flux consists of moving or spinning electrically charged particles invisible to the eye.
Every magnet has a north seeking and a south seeking face on opposite ends. The north face of one magnet will always be attracted towards the south face of another magnet.
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 8
Customer feedback
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 9
Recommend Products
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 10
F50x50x25mm Block
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 11

D25.4x12.7mm Disc

N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 12
Radial Ring Magnet
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 13
Custom magnets
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 14
Everlube & nickel coated magnets
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 15
epoxy coated arc magnets
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 16
Different Types Magnets are Available
Custom Neodymium Block Magnets – We can also custom manufacturer neodymium block magnets to your exact specifications, just send us a special request and we'll help you determine the most cost effective solution for your project. U-POLEMAG has near 20 years of experience in manufacturing complex magnetic assemblies for more technical applications
Application
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 17
Packing & Delivery
Custom Packing
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 18


Regular Packing
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 19

Inner Packing

* With foam inside to protect magnets
* With iron plate around for air shipment
* Suitable for air / sea / express shipping


Outer Packing

* WIth poly-bag for water-proof
* With clear label for detail of magnets
* With Packing strip for protect carton
Our Company
You are looking for a reliable magnets partner. You've come to the right place. No matter a small magnet or complex systems, our work is to collaborate with you to produce high-quality and cost-effective products. We've got the track record and expertise to make it happen. We sincerely look forward to starting a conversation
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 20
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 21
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 22
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 23
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 24
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 25
N42 NdFeB Arc Segment Permanent Magnet for Wind Turbine Rotor Generators 26
FAQ

Q: Are you trading company or manufacturer ?

A: We are a factory. Welcome to visit us.

Q: How long is your delivery time?

A: 15-25 days for bulk order.

Q: Do you provide samples ?

A: Yes.

Q: What is your payment method ?

T/T, PayPal, Alibaba Trade Assurance, Western Union etc.
