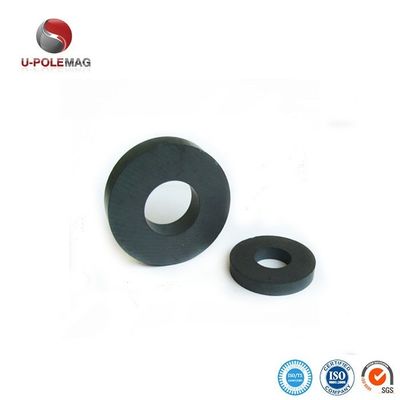

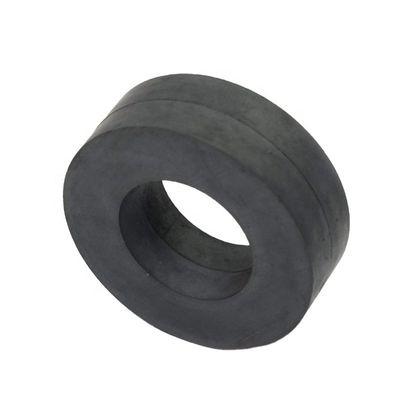

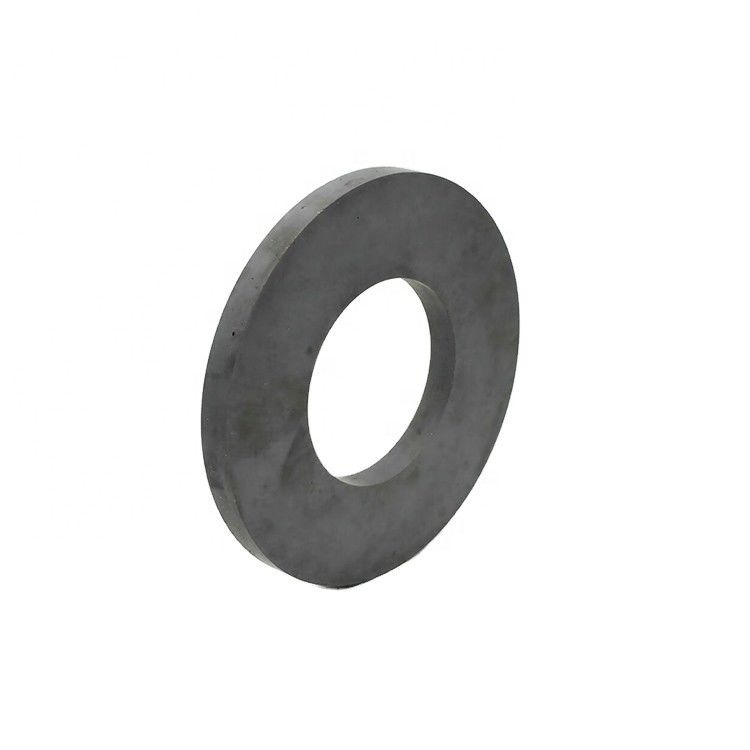

Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape

Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape
Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape

Large Image :  Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: C8
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Price: $9.99/pieces 2-499 pieces
Packaging Details: Export standard cartons are supplied with foam well protected. <br>We can make packages at customers' request. <br>Both sea packages and air packages are available.<br>Speaker Magnet
Supply Ability: 100000 Piece/Pieces per Month Speaker Magnet
Contact Now

Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape

Description
Type: Permanent Composite: Ferrite Magnet
Shape: Ring, Disc, Cylinder, Rectangle, Square, Ring, Arc, Segment Application: Speaker Magnet
Tolerance: ±1% Grade: Ferrite Magnet, C8
Delivery Time: 22-30 Days Product Name: Speaker Magnet
Coating: NONE Magnetism Direction: Axial Or Radial Magnetization
Size: D200x110x20mm Weight: About 2800g
Maximum Working Temperature: 250 Degrees Delivery: By Air, Sea, Express
Quality System: ISO9001:2000 Port: XIAMEN

Product Description
Product Name
Y25 Ferrite Magnetic Ring Speaker Magnet / Ferrite Magnet for Speaker
Material
Ferrite Magnet
Coating
None
Size
D200x110x20mm
Grade
C8
Delivery
Disc, Cylinder, Block, Arc etc
Sample Time
15 days
Used
Speaker Magnet
Products Show

What is Ferrite Magnet

Ferrite magnet or ceramic magnet is the cheapest magnetic material available with the lowest cost/energy ratio, also known as Ceramic Magnets, they are mainly Strontium based (SrFe2O3), manufactured with Strontium Carbonate additive to increase performances from the obsolete Barium based (BaFe2O3).

Their good coercive force results from high crystal anisotropy of Strontium iron oxide. However, isotropic parts can also be produced where a simple and easy multi-pole magnetization is required. The most common shapes are simple, such as blocks, cylinders, rings and arcs. Ferrite is not conductive and has high resistance against corrosion, acids, salts, lubricants.

Ferrite Ring Magnet are used in Subwoofer. For Speakers, A Ferrite Ring Magnet Is Commonly Advised.
One can easily understand the importance of the quality of the permanent magnet in the speakers. It must be able to provide a strong field while having reduced dimensions and a relatively low cost.
Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 0



Feature:
1)Cheapest magnet material
2)Good anti-corrosion performance, no need to surface treatment.
3)Best temperature stability
4)Best choice for industrial application
5)All shapes can be customized
6)Compact crystal
7)provide isotropic and anisotropic
8)OEM service





Feature introduction

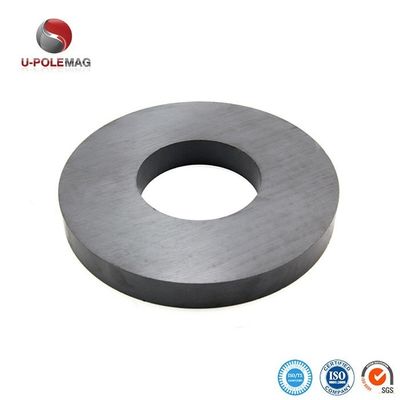

Products: Large D200x110x20mm C8 Ferrite Ring Magnet for Speakers
1. Material: SrO,BaO,Fe2O3.
2. Grade: ,Y30,Y30BH,Y35,C5,C8,C11
3. Shapes: Arc,Tile, segments. as your request.
5. Certificates: , SGS, ISO9001:2000
6. Application: ammeter, audio, phone, TV, dynamo, Motors, Meters, Speakers, Sensors, Medical Machine prducts, Magnetic Sport
products, etc
Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 1
You may also like
Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 2
                                                                      Ferrite Magnet
Sintered Ferrite(Ceramic) Magnets developed in the 1960's as a low cost alternative to metallic magnets. Although they have low energy (compared with other permanent magnet materials) and are relatively brittle and hard, Ceramic Magnets (Hard ferrite magnets) have won wide acceptance due to their good resistance to demagnetization, excellent corrosion resistance and low price per pound. In fact, measured by weight, ferrite represents more than 75 percent of the world magnet consumption. It is the first choice for most types of DC motors, magnetic separators, magnetic resonance imaging and automotive sensors.

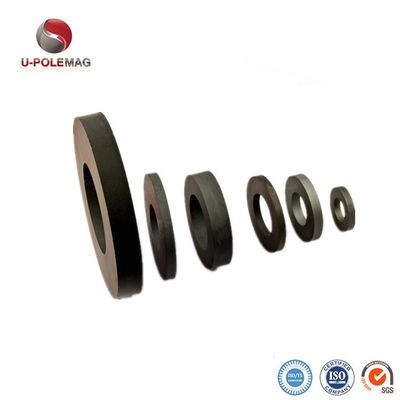

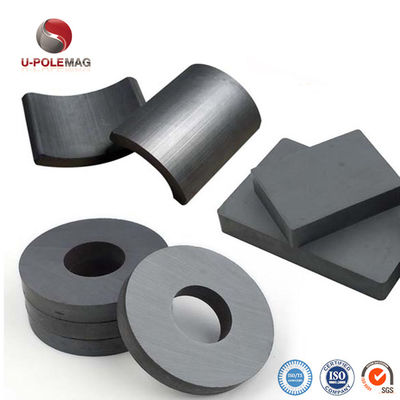

Common Sizes of Sintered Ferrite Magnet

Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 3
Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 4
Customer feedback
Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 5
Our Company
Company Introduction

Welcome to U-POLEMAG Industry Ltd.U-POLEMAG is a high-tech enterprise, located in the Huli High-Tech Park,Xiamen,China.We are professionally specialized in R&D and manufacture of neodymium permanent magnetic materials, AlNiCo magnets,SmCo magnets,Ceramic magnets,Plastic magnets,various magnetic assemblies and much more. We are innovative and creative in our approach and we strive to provide unbeatable solutions and service for our customers.We adopt "the quality ensures survive and thrive, orientation drives development",providing the best products and service to all customers.Sincerely looking forward to the long-term cooperation with you.

Our Advantages:
1. Our Production Advantages: Ø 2500 ton/year production capacity of neodymium magnets Ø Professional & Experienced engineers team for magnetic assemblies such as Holding magnets, Magnetic filter system, Magnetic end user products and so on Ø ISO9001:2000 and ISO/TS16949 certified
2. Our Service Advantages: Ø 2 times international exhibition every year Ø Alibaba Trade Assurance more than US$260,000.00 Ø Successful cooperation with GE, BRD, Thyssenkrupp and so on
Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 6

60,000M2 Factory

Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 7

One-Stop Workshop


Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 8

Testing Room


Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 9

Packing Room


Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 10

Warehouse

Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 11

Sales Team

Packing & Delivery
Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 12

1. Special logistics packaging

Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 13

2. Suitable carton size

Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 14

3. Shock bubble film

Our Certifications
Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 15
Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 16
Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 17
Exhibition
Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 18
Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 19
Y25 Ferrite Magnetic Ring Speaker Magnet with ±1% Tolerance and Rectangle Shape 20
We attend Berlin, Chicago, Moscow exhibition every year, welcome to visit our booth.
