Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr

Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr
Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr

Large Image :  Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: NS80
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $1.00/pieces 100-499 pieces
Packaging Details: Customized Carton or box according to magnet size and quantity
Supply Ability: 2000 Ton/Tons per Year Customized Ferrite magnet disc used for industrial field
Contact Now

Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr

Description
Type: Soft Composite: Rubber Magnet
Shape: Sheet Application: Industrial Magnet
Tolerance: ±0.05mm Processing Service: Cutting, Moulding
Grade: Ferrite Delivery Time: 8-14 Days
Product Name: Noise Suppression Sheet Another Name: Absorber Magnet Sheet
Material Name: NS80 Frequency Range: 0.5MHz To 3GHz
Relative Permeability At 1MHz: 80+/-10% Density: 3.2+/-0.3g/cm3
Thermal Conductivity: 1.5W/m K Saturated Magnetic Flux Density: 180mT
Operating Temperature: 40 To +85°C Thickness: 0.025 To 0.5mm
Port: Shanghai/xiamen Port

Product Description
Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr 0
Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr 1
Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr 2

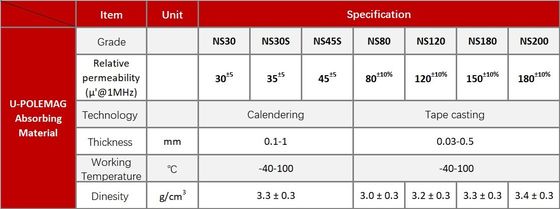

Specification

FEATURES:

*High permeability (µ') and low magnetic loss (µ") materials up to 13.56MHz
*Multiple materials and thickness available to optimize coil Quality (Q) factor
*High flexibility which allows sheets to easily be formed to desired shape
*Non conductive surface allows for metal coils to be directly applied to magnetic sheet Protects system from metal objects located directly behind coils
*Available on a roll or in sheet form

APPLICATION

*Improving antenna reception performance and sensitivity in RFID readers/writers

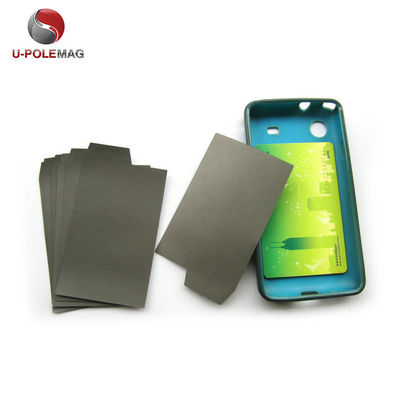

*Isolation of magnetic field in metal smart cards and tags
*NFC transmitters and receivers
*Shielding for low power magnetic resonance wireless power transfer systems
Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr 3
Packing & Delivery
Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr 4
Flexible Soft NS Absorbing Material for RFID Tag EMI Isolation Wave Absorber Noise Suppr 5
Customized package according to magnet size and quantity
