High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm

High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm

Large Image :  High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: Sm2Co17
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $0.26 - $3.85/pieces
Contact Now

High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm

Description
Type: Permanent Composite: Rare Earth Magnet
Shape: Block Application: Industrial Magnet
Tolerance: ±1mm, -/+0.05mm Processing Service: Cutting, Punching, Moulding
Grade: Samarium Cobalt, YX-16 ~ YXG-32L Delivery Time: 22-30 Days
Product Name: Customized High Temperature 350 Degree Celsius Samarium Cobalt Magnet Material: Sm2Co17
Size: Customized Magnetism Direction: Axial
Quality System: ISO9001:2000 Environment Management System: ISO14004:2004
Coating: None Sample: Available



High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 0
Products Description

Segment Samarium Cobalt SmCo Magnet


Samarium-Cobalt magnets have the best Br temperature coefficient (-0,035%/°C) granting the absolute higher available inductionabove 150°C working temperature. Despite a higher cost than other magnetic materials, SmCo provides an outstanding combination of high energy, thermal stability and corrosion resistance. Protective coatings are generally not required except for particular applications.
The typical final shapes such as blocks, cylinders, rings and arcs are obtained by cutting and grinding processes of pressed standard blocks or unitary compression pre-moulded part. Extremely fine tolerances can be obtained although, because of its high brittleness, it has to be handled and assembled with care to avoid chips and cracks.

Materials
Grade
Residual induction
(Br)

Coercive Force
(Hcb)

Intrinsic Coercive Force
(Hcj)

Max Working Temp
Curie Temp.


T
kGs
kA/m
kOe
kA/m
kOe
℃
℃
1:5
SmCo5
(Smpr)Co5
YX-16
0.81-0.85
8.1-8.5
620-660
7.8-8.3
1194-1830
15-23
250
750

YX-18
0.85-0.90
8.5-9.0
660-700
8.3-8.8
1194-1830
15-23
250
750

YX-20
0.90-0.94
9.0-9.4
676-725
8.5-9.1
1194-1830
15-23
250
750

YX-22
0.92-0.96
9.2-9.6
710-748
8.9-9.4
1194-1830
15-23
250
750

YX-24
0.96-1.00
9.6-10.0
730-770
9.2-9.7
1194-1830
15-23
250
750








2:17
Sm2Co17
Sm2(CoFeCu Zr)17
YXG-24H
0.95-1.02
9.5-10.2
692-764
8.7-9.6
>=1990
>=25
350
800

YXG-26H
1.02-1.05
10.2-10.5
748-796
9.4-10.0
>=1990
>=25
350
800

YXG-28H
1.03-1.08
10.3-10.8
756-812
9.5-10.2
>=1990
>=25
350
800

YXG-30H
1.08-1.10
10.8-11.0
788-835
9.9-10.5
>=1990
>=25
350
800

YXG-32H
1.10-1.13
11.0-11.3
812-860
10.2-10.8
>=1990
>=25
350
800

YXG-22
0.93-0.97
9.3-9.7
676-740
8.5-9.3
>=1433
>=18
300
800

YXG-24
0.95-1.02
9.5-10.2
692-764
8.7-9.6
>=1433
>=18
300
800

YXG-26
1.02-1.05
10.2-10.5
748-796
9.4-10.0
>=1433
>=18
300
800

YXG-28
1.03-1.08
10.3-10.8
756-812
9.5-10.2
>=1433
>=18
300
800

YXG-30
1.08-1.10
10.8-11.0
788-835
9.9-10.5
>=1433
>=18
300
800

YXG-32
1.10-1.13
11.0-11.3
812-860
10.2-10.8
>=1433
>=18
300
800

YXG-26M
1.02-1.05
10.2-10.5
676-780
8.5-9.8
955-1433
12/18
300
800

YXG-28M
1.03-1.08
10.3-10.8
676-796
8.5-10.0
955-1433
12/18
300
800

YXG-30M
1.08-1.10
10.8-11.0
676-835
8.5-10.5
955-1433
12/18
300
800

YXG-32M
1.10-1.13
11.0-11.3
676-852
8.5-10.7
955-1433
12/18
300
800

YXG-24L
0.95-1.02
9.5-10.2
541-716
6.8-9.0
636-955
8/12
250
800

YXG-26L
1.02-1.05
10.2-10.5
541-748
6.8-9.4
636-955
8/12
250
800

YXG-28L
1.03-1.08
10.3-10.8
541-764
6.8-9.6
636-955
8/12
250
800

YXG-30L
1.08-1.15
10.8-11.5
541-796
6.8-10.0
636-955
8/12
250
800

YXG-32L
1.10-1.15
11.0-11.5
541-812
6.8-10.2
636-955
8/12
250
800

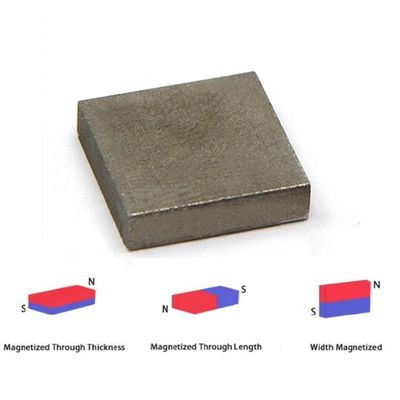

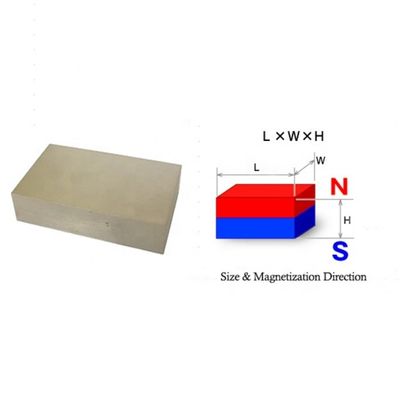

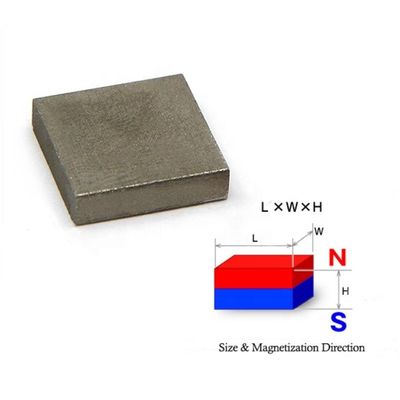

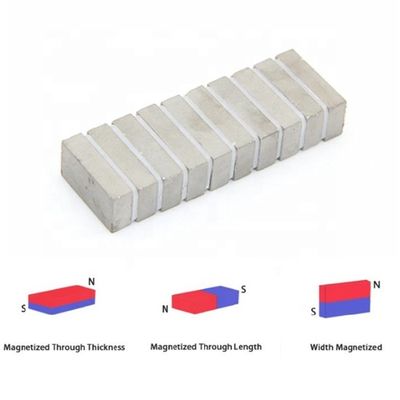

Magnetization Direction
A Magnetic field is an invisible flux moving from one end of the magnet to the other. Shown in Figure1. The flux consists of
moving or spinning electrically charged particles invisible to the eye. If the max working temperature meet the requirement ,permanent magnets can retain the magnetic field for very long time even forever. Magnets have potential energy which means that they have the ability to conserve energy. The magnet will display or release some of its conserved energy when pulling towards or attaching to something then conserve or store the energy that the user exerts when pulling it off.

Every magnet has a north seeking and a south seeking face on opposite ends.
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 1
Application Fields
Neodymium magnets are strong magnets,frequently used for many types of sectors, commercial, industrial & technical applications where strong permanent magnets are required. Due to their high-magnetic strength, components that previously had to be large and heavy can now be miniaturized by using Neodymium magnet material.Common Applications: holding systems requiring very high holding forces, sensors, reed switches, hard disc drives, audio equipment, acoustic pick-ups, headphones & loudspeakers, MRI scanners, magnetically coupled pumps · motors & generators, magnetic tool holders, magnetic bearings, door catches, dental instruments, medical devices, magnetic separators, lifting machinery, crafts & model making, hanging artwork, levitation devices, POP displays, commercial signage, packaging closures, jewelry clasps & more.

U-Polemag can make large inventory of Neodymium magnets in disc, block, rod , ring , arc & customized irregular shapes, in a wide range of shapes, sizes and grades. Just let us know what you are looking for by sending us a request for quote or contact us to discuss your specialty project.
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 2
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 3
Why Choose Us
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 4
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 5



Advanced Facilities
Excellent production equipment
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 6



Product Testing
Strict product testing process
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 7



Engineering Service
Meet all customer needs
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 8
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 9
About U-POLEMAG
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 10
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 11
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 12
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 13
U-Polemag Industry Ltd founded in 2004, is a high technology company engaged in reaching, developing, manufacturing and marketing magnets and their application devices with ISO9001,ISO14001,ISO18001 and ISO/TS16949 certificates.

As a supplier of magnetic material and devices, by taking markets as the orientation and customers’ demands as criterion,
U-polemag continuously improves technologies and products, and insists in providing customers with first-class goods and services.

With years of development and accumulation, we can supply high quality neodymium magnets ,samarium cobalt magnets, ceramic magnets and various of customized magnetic application products such as magnetic holders magnetic coupling, motor parts, speaker divers and so on

VR
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 14
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 15
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 16
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 17
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 18
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 19
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 20
High Temperature up to 350°C Customized Samarium Cobalt Magnet with Tolerance ±1mm 21
FAQ

Q: May we get a sample of the product? How to ship and how to pay ?

A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.

Q: What magnet materials are available?

A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.

Q:Can you supply custom magnets?

A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .

Q:Do you have a minimum purchase order?

A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .

Q: How many days does it take to ship my order?

A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .

Q:What elements affect the magnet price ?

A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
