Permanent Ndfeb Arc Neodymium Magnet Assembly for Industrial Magnet Applications

Large Image : Permanent Ndfeb Arc Neodymium Magnet Assembly for Industrial Magnet Applications

Product Details:

Place of Origin:	Fujian, China
Brand Name:	U-POLEMAG
Certification:	ISO9001:2000/ISO14001:2004
Model Number:	N50

Payment & Shipping Terms:

Price:	$300.00 - $500.00/pieces
Packaging Details:	High Hcj value neodymium halbach array magnet for motor <br>Supplier standard air or vessel shipment packing or as customers' request for Nd-Fe-B Magnet
Supply Ability:	2000 Metric Ton/Metric Tons per Year halbach array magnet

Contact Now

Permanent Ndfeb Arc Neodymium Magnet Assembly for Industrial Magnet Applications

Description

Type:	Permanent	Composite:	Neodymium Magnet
Shape:	Arc	Application:	Industrial Magnet
Tolerance:	±3%, +/- 0.1mm	Processing Service:	Cutting, Moulding
Grade:	NdFeb, N52	Delivery Time:	Within 7 Days
Product Name:	Halbach Array Magnet	Size:	Customized
Coating:	Nickel	Magnetism Direction:	Array
Br:	More Than 1080 MT	Max Working Temperature:	60 Centigrade
Lead Time:	30-35 Days	Port:	Xiamen

Products Description

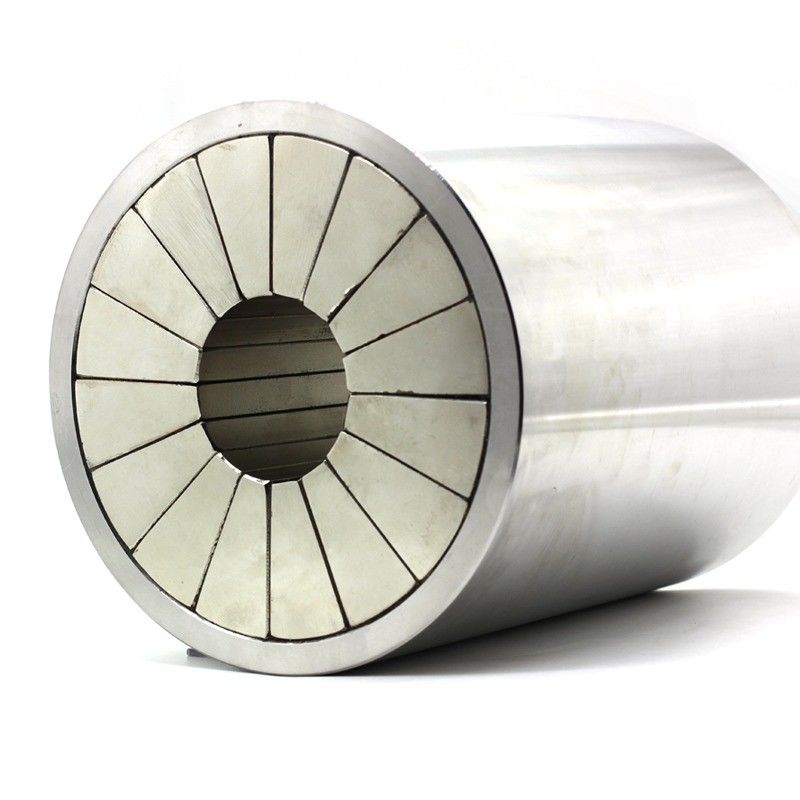

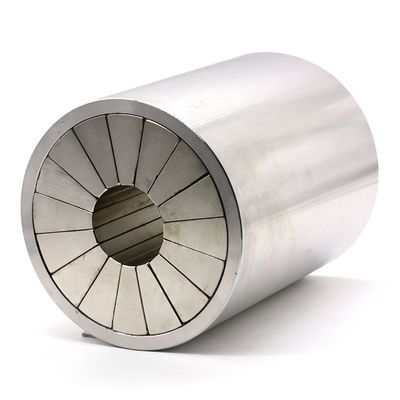

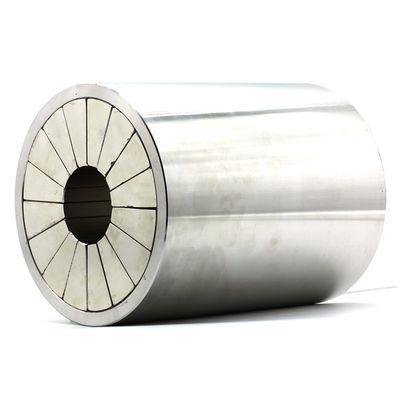

Halbach Array Magnet Ndfeb Arc Neodymium Magnet Assembly

Halbach array is a special arrangement of permanent magnets that makes the magnetic field on one side of the array stronger, while canceling the field to near zero on the other side. This is very different from the magnetic field around a single magnet. With a single magnet, you have an equal strength magnetic field on either side of the magnet, as shown at right.

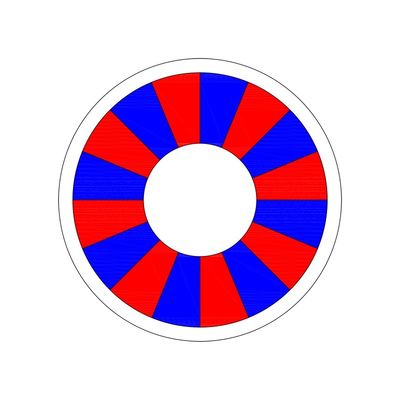

Magnetic Circuit

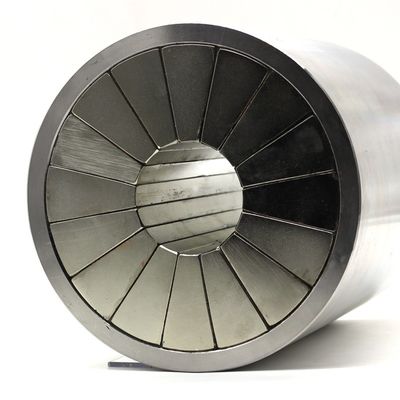

A Halbach cylinder can be used in an electric motor, as in this example, with the magnetic field concentrated at the inner diameter and the Halbach array rotating around the windings.
Image credit: Lawrence Livermore National Laboratory

Click for more details

Table of Magnet Properties

Grade	Residual magnetism			Coercive field strength							Energy product	Max. operational temp.
		Br			bHc			iHc			(BxH)max	Max. operational temp.
		Gauss (G)	Tesla (T)	kOe	kA/m	kOe	kA/m	MGOe	kJ/m³	°C
N30	10800-11200	1.08-1.12	9.8-10.5	780-836	≥12	≥955	28-30	223-239	≤80
N33	11400-11700	1.14-1.17	10.3-11	820-876	≥12	≥955	31-33	247-263	≤80
N35	11700-12100	1.17-1.21	10.8-11.5	860-915	≥12	≥955	33-35	263-279	≤80
N38	12200-12600	1.22-1.26	10.8-11.5	860-915	≥12	≥955	36-38	287-303	≤80
N40	12600-12900	1.26-1.29	10.5-12.0	860-955	≥12	≥955	38-40	303-318	≤80
N42	12900-13200	1.29-1.32	10.8-12.0	860-955	≥12	≥955	40-42	318-334	≤80
N45	13200-13700	1.32-1.37	10.8-12.5	860-995	≥12	≥955	43-45	342-358	≤80
N48	13700-14200	1.37-1.42	10.8-12.5	860-995	≥12	≥955	45-48	358-382	≤80
N50	14000-14600	1.40-1.46	10.8-12.5	860-995	≥12	≥955	47-51	374-406	≤80
N52	14200-14700	1.42-1.47	10.8-12.5	860-995	≥12	≥955	48-53	380-422	≤65

Magnet Plating and Coating Options

The following is a list and description of common plating options for custom magnets.Why do magnets need to be plated?

★ Oxidization (Rust)
NdFeB magnets will oxidize(rust) if left exposed. When a plating wears down or cracks, the exposed area will oxidize. An oxidized area will not result in complete degradation of the magnet, only the oxidized area will lose its strength. However the magnet will lose some structural integrity and become more susceptible to breakage.

★ Durability
Depending on shape, permanent magnet substrate is brittle. A multilayered metal plating like nickel or zinc improves the magnets resistance to chipping and wear, particularly around corners.

★ Harsh Environments
Platings vary in their tolerance of different harsh chemicals and abrasion. Salt and humidity in regions near the ocean are
commonly overlooked when selecting a plating. Be sure to consider the magnets environment when selecting a plating.

The most common type of plating for neodymium magnets Nickel (Ni-Cu-Ni) Intended for indoor use. It has proven to be very resilient when subjected to normal wear and tear. However it will corrode oudoors in prolonged exposure to salt water, salty air,or harsh chemicals.

Magnetization Direction

A Magnetic field is an invisible flux moving from one end of the magnet to the other. Shown in Figure1. The flux consists of
moving or spinning electrically charged particles invisible to the eye. If the max working temperature meet the requirement ,permanent magnets can retain the magnetic field for very long time even forever. Magnets have potential energy which means that they have the ability to conserve energy. The magnet will display or release some of its conserved energy when pulling towards or attaching to something then conserve or store the energy that the user exerts when pulling it off.

Every magnet has a north seeking and a south seeking face on opposite ends. The north face of one magnet will always be attracted towards the south face of another magnet.

Application Fields

Neodymium magnets are strong magnets,frequently used for many types of sectors, commercial, industrial & technical applications where strong permanent magnets are required. Due to their high-magnetic strength, components that previously had to be large and heavy can now be miniaturized by using Neodymium magnet material.Common Applications: holding systems requiring very high holding forces, sensors, reed switches, hard disc drives, audio equipment, acoustic pick-ups, headphones & loudspeakers, MRI scanners, magnetically coupled pumps · motors & generators, magnetic tool holders, magnetic bearings, door catches, dental instruments, medical devices, magnetic separators, lifting machinery, crafts & model making, hanging artwork, levitation devices, POP displays, commercial signage, packaging closures, jewelry clasps & more.

U-Polemag can make large inventory of Neodymium magnets in disc, block, rod , ring , arc & customized irregular shapes, in a wide range of shapes, sizes and grades. Just let us know what you are looking for by sending us a request for quote or contact us to discuss your specialty project.

Why Choose Us

Advanced Facilities

Excellent production equipment

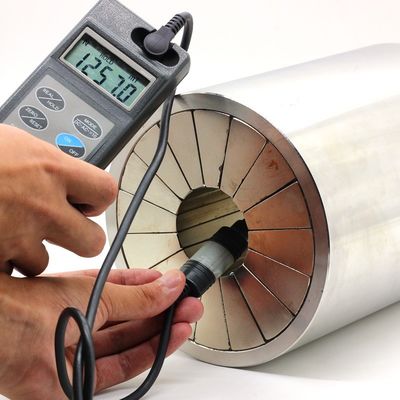

Product Testing

Strict product testing process

Engineering Service

Meet all customer needs

About U-POLEMAG

U-Polemag Industry Ltd founded in 2004, is a high technology company engaged in reaching, developing, manufacturing and marketing magnets and their application devices with ISO9001，ISO14001，ISO18001 and ISO/TS16949 certificates.

As a supplier of magnetic material and devices, by taking markets as the orientation and customers’ demands as criterion,
U-polemag continuously improves technologies and products, and insists in providing customers with first-class goods and services.

With years of development and accumulation, we can supply high quality neodymium magnets ,samarium cobalt magnets, ceramic magnets and various of customized magnetic application products such as magnetic holders magnetic coupling, motor parts, speaker divers and so on

FAQ

Q: May we get a sample of the product? How to ship and how to pay ?

A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.

Q: What magnet materials are available?

A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.

Q:Can you supply custom magnets?

A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .

Q:Do you have a minimum purchase order?

A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .

Q: How many days does it take to ship my order?

A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .

Q:What elements affect the magnet price ?

A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
