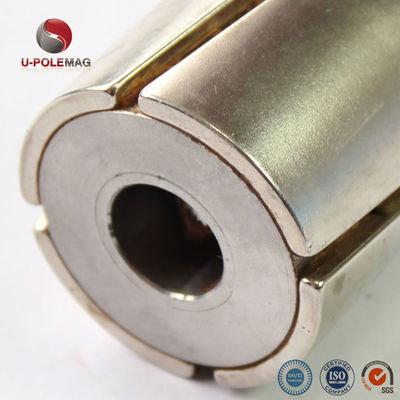

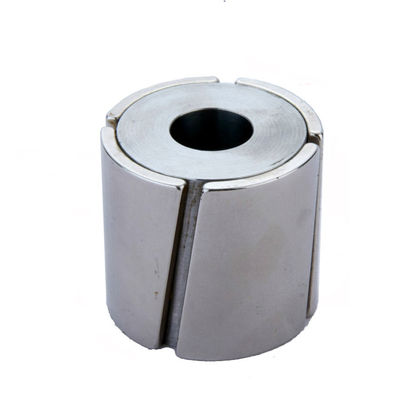

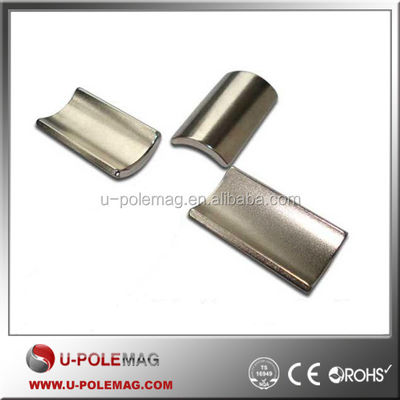

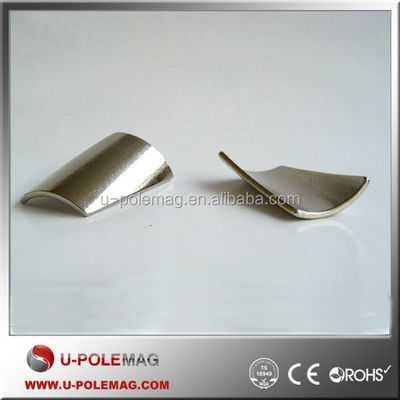

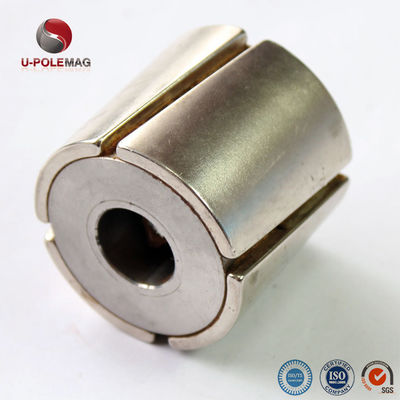

As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor

As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor

Large Image :  As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor

Product Details:
Place of Origin: Zhejiang, China
Brand Name: U-POLEMAG
Certification: ISO/TS16949
Model Number: 42sh
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $9.90/pieces 100-499 pieces
Packaging Details: Export Standard Cartons are supplied with foam well protected. We can make the packages self running magnetic motor arc magnet motor magnet for brushless motor
Supply Ability: 3000 Metric Ton/Metric Tons per Year motor magnet
Contact Now

As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor

Description
Type: Permanent, Permanent Composite: Neodymium Magnet
Shape: Arc, Cylinder,Block, Disc, Ring Application: Industrial Magnet
Tolerance: ±0.05mm Processing Service: Cutting, Moulding
Grade: NdFeb Delivery Time: 8-14 Days
Product Name: Magnetic Motor Arc Magnet Motor Magnet For Brushless Motor Quality System: ISO9001:2000
Magnet Grade: 42SH Size: As Client's Request
Processing: Sintered Samples Lead Time: 10days
Use: Magnetic Motor Arc Magnet Motor Magnet For Brushless Motor Port: Xiamen

Products Description

self running magnetic motor arc magnet motor magnet for brushless motor

Introducing our Self-Running Magnetic Motor Arc Magnets – the perfect solution for brushless motors, meticulously designed to meet your specific needs. These innovative magnets are engineered to revolutionize the world of motor technology, offering unprecedented efficiency and performance. Unleash the Future of Motor Power: Our Self-Running Magnetic Motor Arc Magnets represent a breakthrough in motor design. They are engineered to enable self-running capabilities, reducing the need for external power sources. This innovation paves the way for more efficient and sustainable motor applications. Precision Engineering for Optimal Performance: Crafted with meticulous precision, these arc magnets are designed to fit seamlessly into brushless motors. Their shape and strength are optimized to ensure smooth and efficient motor operation, leading to improved performance and reliability. Empowering Brushless Motor Technology: The exceptional magnetic force of these arc magnets enhances the torque and responsiveness of brushless motors. This leads to greater energy efficiency and a longer lifespan for your motor systems. Versatile Applications: Whether you're in the automotive industry, robotics, or any field that relies on motor technology, these arc magnets offer limitless possibilities. Their innovative design makes them suitable for a wide range of applications where efficiency and sustainability are paramount. Elevate Your Projects: Experience the future of motor technology with our Self-Running Magnetic Motor Arc Magnets. They are not just magnets; they are the driving force behind innovation and sustainability in motor applications. Order now and witness how these magnets redefine the possibilities of motor technology. Join us in shaping the future of motor power – order your Self-Running Magnetic Motor Arc Magnets today and embark on a journey towards more efficient and sustainable motor systems.
Table of Magnet Properties
Grade
Residual magnetism
Coercive field strength
Energy product
Max.
operational
temp.
Br
bHc
iHc
(BxH)max
Gauss (G)
Tesla (T)
kOe
kA/m
kOe
kA/m
MGOe
kJ/m³
°C
N30
10800-11200
1.08-1.12
9.8-10.5
780-836
≥12
≥955
28-30
223-239
≤80
N33
11400-11700
1.14-1.17
10.3-11
820-876
≥12
≥955
31-33
247-263
≤80
N35
11700-12100
1.17-1.21
10.8-11.5
860-915
≥12
≥955
33-35
263-279
≤80
N38
12200-12600
1.22-1.26
10.8-11.5
860-915
≥12
≥955
36-38
287-303
≤80
N40
12600-12900
1.26-1.29
10.5-12.0
860-955
≥12
≥955
38-40
303-318
≤80
N42
12900-13200
1.29-1.32
10.8-12.0
860-955
≥12
≥955
40-42
318-334
≤80
N45
13200-13700
1.32-1.37
10.8-12.5
860-995
≥12
≥955
43-45
342-358
≤80
N48
13700-14200
1.37-1.42
10.8-12.5
860-995
≥12
≥955
45-48
358-382
≤80
N50
14000-14600
1.40-1.46
10.8-12.5
860-995
≥12
≥955
47-51
374-406
≤80
N52
14200-14700
1.42-1.47
10.8-12.5
860-995
≥12
≥955
48-53
380-422
≤65
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor 0
Magnet Plating and Coating Options
The following is a list and description of common plating options for custom magnets.Why do magnets need to be plated?

★ Oxidization (Rust)
NdFeB magnets will oxidize(rust) if left exposed. When a plating wears down or cracks, the exposed area will oxidize. An oxidized area will not result in complete degradation of the magnet, only the oxidized area will lose its strength. However the magnet will lose some structural integrity and become more susceptible to breakage.

★ Durability
Depending on shape, permanent magnet substrate is brittle. A multilayered metal plating like nickel or zinc improves the magnets resistance to chipping and wear, particularly around corners.

★ Harsh Environments
Platings vary in their tolerance of different harsh chemicals and abrasion. Salt and humidity in regions near the ocean are
commonly overlooked when selecting a plating. Be sure to consider the magnets environment when selecting a plating.

The most common type of plating for neodymium magnets Nickel (Ni-Cu-Ni) Intended for indoor use. It has proven to be very resilient when subjected to normal wear and tear. However it will corrode oudoors in prolonged exposure to salt water, salty air,or harsh chemicals.
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor 1
Magnetization Direction
A Magnetic field is an invisible flux moving from one end of the magnet to the other. Shown in Figure1. The flux consists of
moving or spinning electrically charged particles invisible to the eye. If the max working temperature meet the requirement ,permanent magnets can retain the magnetic field for very long time even forever. Magnets have potential energy which means that they have the ability to conserve energy. The magnet will display or release some of its conserved energy when pulling towards or attaching to something then conserve or store the energy that the user exerts when pulling it off.

Every magnet has a north seeking and a south seeking face on opposite ends. The north face of one magnet will always be attracted towards the south face of another magnet.
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor 2
Application Fields
Neodymium magnets are known for their exceptionally high magnetic properties and are widely used in various industries due to their strength, durability, and versatility. Here are some of the application areas where neodymium magnets are commonly used:

Electronics industry - neodymium magnets can be found in almost all electronic devices including headphones, microphones,speakers, sensors, hard drives, and computer printers. These magnets help amplify sound and store data.

Automotive industry - neodymium magnets are used in various motor and machinery components including starters, alternators, and electric power steering systems. They provide a high level of power in a small, lightweight package.

Medical equipment - neodymium magnets can be found in devices such as MRI machines, which use the magnets to create a magnetic field to create detailed images inside the body.

Industrial applications - neodymium magnets are used in various industrial applications such as conveyor systems, lifting
equipment, and metal detectors.

Renewable energy - neodymium magnets play an essential role in wind turbines and other renewable energy generators, where they convert mechanical energy into electrical energy.

Household appliances - neodymium magnets are also used in various household appliances, including refrigerators, vacuum cleaners, and washing machines.

Aerospace industry - neodymium magnets are used in satellites, airplanes, and other aerospace vehicles due to their strength and light weight.
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor 3
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor 4
Why Choose Us
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor 5
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor 6
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor 7
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor 8
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor 9
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor 10
About U-POLEMAG
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor 11
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor 12
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor 13
U-Polemag Industry Ltd founded in 2004, is a high technology company engaged in reaching, developing, manufacturing and marketing magnets and their application devices with ISO9001，ISO14001，ISO18001 and ISO/TS16949 certificates.

As a supplier of magnetic material and devices, by taking markets as the orientation and customers’ demands as criterion,
U-polemag continuously improves technologies and products, and insists in providing customers with first-class goods and services.

With years of development and accumulation, we can supply high quality neodymium magnets ,samarium cobalt magnets, ceramic magnets and various of customized magnetic application products such as magnetic holders magnetic coupling, motor parts, speaker divers and so on
VR
As Client's Request Magnet for Brushless Motor Self Running Magnetic Motor 14
FAQ

Q: May we get a sample of the product? How to ship and how to pay ?

A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.

Q: What magnet materials are available?

A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.

Q:Can you supply custom magnets?

A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .

Q:Do you have a minimum purchase order?

A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .

Q: How many days does it take to ship my order?

A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .

Q:What elements affect the magnet price ?

A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
