Product Details:
|
| Type: | Permanent | Composite: | Neodymium Magnet |
|---|---|---|---|
| Shape: | Shelf | Application: | Industrial Magnet, Exchange Resin Softener |
| Tolerance: | ±0.1mm | Grade: | NdFeB |
| Delivery Time: | 22-30 Days | Certificate: | ISO9001:2000 |
| Filtration: | 0.5μm | Water Pressure:: | 0.1-0 .3 MPa |
| Housing: | SUS304 Stainless Steel | Applicable Temperature: | 2-45℃ |
| Flow Rate: | 800L/H-4000L/H | Port: | Xiamen Or Shanghai |
High Performance Magnet Water Filter Softener For Water Treatment
Application
grid magnet is mainly used to remove imppurities magnetic powder,granular in Liquid and slurry,widely used in ceramics,electricity,mining,plastics,chemicals,rubber,food,environmental,pigments,dyes,electronics,metallurgy etc
Working Principle

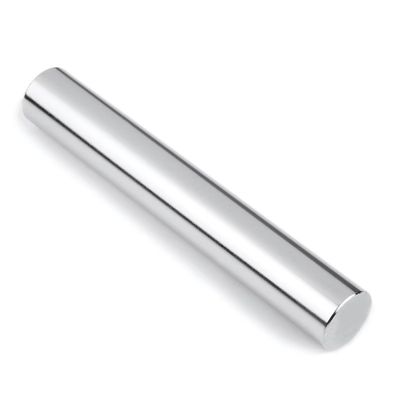

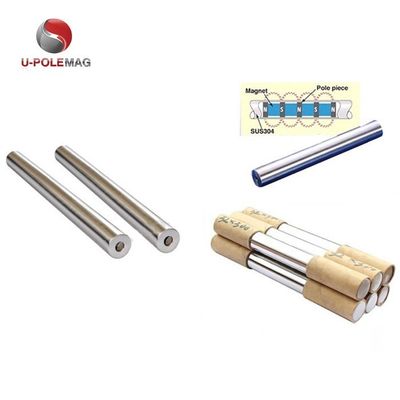

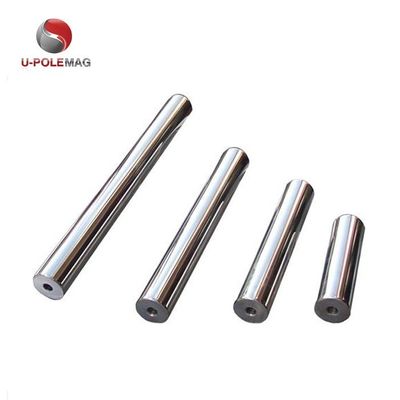

grid magnet is used of high quality stainless steel tube and high B value of NdFeB magnet with the special making way, which are consist of magnetic bars ,when the ferrous material passing by the magnetic bar, under the attraction of rods, all those impurity ferrous material will be absorbed on the rods, so as to ensure safety of the equipments and product
Features:
No energy consumption,pollution-free,space-saving,simple structure,stong power, long life duration,OEM available.

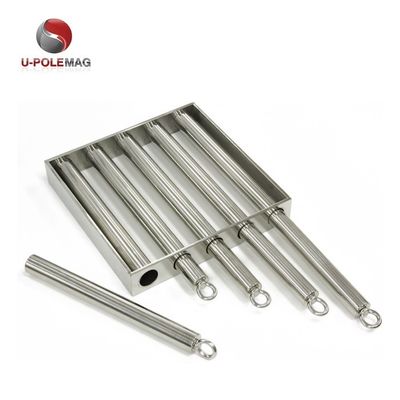

Grid magnet specification:
| Round | Square | ||||
| Dimension (mm) | Hiberarchy | Centre distance(mm) | Size(mm) | Hiberarchy | Centre Distance (mm) |
| 100 x 40(80) | 2 bars monoplayer | Left/right and up/down perpendicularity centre distance,all are 50mm | 100 x 100 x 40(80) | 2 bars monoplayer | Left/right and up/down perpendicularity centre distance,all are 50mm |
| (3 bars double deck) | (3 bars double deck ) | ||||
| 150 x 40(80) | 3 bars monoplayer | 150 x 150 x 40(80) | 3 bars monoplayer | ||
| (5 bars double deck ) | (5 bars double deck ) | ||||
| 200 x 40(80) | 4 bars monoplayer | 200 x 200 x 40(80) | 4 bars monoplayer | ||
| (7 bars double deck ) | (7 bars double deck ) | ||||
| 250 x 40(80) | 5 bars monoplayer | 250 x 250 x 40(80) | 5 bars monoplayer | ||
| (9 bars double deck ) | (9 bars double deck ) | ||||
| 300 x 40(80) | 6 bars monoplayer | 300 x 300 x 40(80) | 6 bars monoplayer | ||
| (11 bars double deck ) | (11 bars double deck ) | ||||
| 350 x 40(80) | 7 bars monoplayer | 350 x 350 x 40(80) | 7 bars monoplayer | ||
| (13 bars double deck ) | (13 bars double deck ) | ||||
| 400 x 40(80) | 8 bars monoplayer | 400 x 400 x 40(80) | 8 bars monoplayer | ||
| (15 bars double deck ) | (15 bars double deck ) | ||||
| 450 x 40(80) | 9 bars monoplayer | 450 x 450 x 40(80) | 9 bars monoplayer | ||
| (17 bars double deck ) | (17 bars double deck ) | ||||
| 500 x 40(80) | 10 bars monoplayer | 500 x 500 x 40(80) | 10 bars monoplayer | ||
| (19 bars double deck ) | (19 bars double deck) | ||||
