Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating

Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating

Large Image :  Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: SNB16
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $0.60/pieces 200-999 pieces
Packaging Details: D32mm Round Base Disc Countersunk Hole Neodymium Cup Pot Magnets<br>Supplier Standard air or vessel shipment packing or as customers' request for Neodymium Magnet
Contact Now

Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating

Description
Type: Permanent Composite: Neodymium Magnet
Shape: POT Application: Industrial Magnet
Tolerance: +/- 0,1 Mm Processing Service: Punching
Grade: Neodymium Magnet Delivery Time: Within 7 Days
Product Name: Pot Magnet With Counterbore Hole Pot Diameter D: 16 Mm
Total Height H: 5.2 Mm Hole D1: 3.5 Mm
Countersinking D2: 6.5 Mm Coating: Nickel-plated (Ni-Cu-Ni)
Strength: Approx. 5 Kg (approx. 11lb) Displacement Force: Approx. 900 G (approx. 1.98lb )
Weight: 7g Max Working Temperature: 80 Celsius
Port: Xiamen

Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 0
Products Description

D16MM Cup Magnets NdFeB Pot Magnet with Counterbore Hole

♥ The strong cup magnets has Ni+Cu+Ni triple layer coated. The best coating available, it makes the neodymium magnets with countersunk holes surface smooth and flat, will not scratch the metal and has a rust-proof effect.

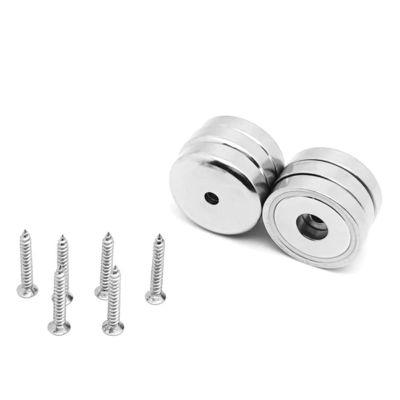

♥ These super strong neodymium magnets are protected in steel cups, which greatly increases the life of the magnets, and these perforated rare earth magnets come with screws for mounting on non-metallic materials, making them even more versatile.
♥ Heavy duty magnets can be used as locker magnets, magnets for fridge, calendar, map, kitchen, Billboard, Dry Erase Board, Tool storage in Home, storehouse, warehouse, warehouse, garage, workshop, office, classroom, school, science, funny decorative. Perfect size for easy Installation and use
♥ To make you satisfied and provide you with the most friendly customer service is our first goal. If you are not satisfied with or like these magnets, please contact us and we will give you the most satisfactory treatment

Table of Magnet Properties
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 1
Model
D
d1
d2
H
Weight
(g)
Breakaway
(Kg)
SNB16
16
3.5
6.5
5.2
7
5
SNB20
20
4.5
8
7.2
13
8
SNB25
25
5.5
9
7.7
22
17
SNB32
32
5.5
9
7.8
38
30
SNB36
36
6.5
11
7.6
48
40
SNB40
40
6.5
11
7.8
69
50
SNB42
42
6.5
11
8.8
75
65
SNB48
48
8.5
15
10.8
114
72
SNB60
60
8.5
15
15
235
110
SNB75
75
10.5
18
17.8
460
155
SNB16L
16
3.5
6.5
5.2
7
4
SNB20L
20
4.5
8
6
12
7
SNB25L
25
5.5
9
6.9
23
16
SNB32L
32
5.5
9
6.8
38
28
SNB36L
36
6.5
11
6.9
50
38
SNB42L
42
6.5
11
7.9
76
62
SNB48L
48
8.5
15
9.6
111
69
SNB60L
60
8.5
15
15
260
110
SNB75L
75
10.5
18
17.8
524
155
SNB16P
16
3.5
6.5
5.2
7
6
SNB20P
20
4.5
8
7.2
13
10
SNB25P
25
5.5
9
7.7
22
21
SNB32P
32
5.5
9
7.8
38
38
SNB36P
36
6.5
11
7.6
48
50
SNB40P
40
6.5
11
7.8
69
63
SNB42P
42
6.5
11
8.8
75
81
SNB48P
48
8.5
15
10.8
114
90
SNB60P
60
8.5
15
15
235
150
SNB75P
75
10.5
18
17.8
460
213
Application Fields
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 2
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 3
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 4
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 5
Why Choose Us
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 6
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 7

Advanced Facilities

Excellent production equipment
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 8

Product Testing

Strict product testing process
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 9

Engineering Service

Meet all customer needs
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 10
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 11
About U-POLEMAG
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 12
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 13
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 14
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 15
U-Polemag Industry Ltd founded in 2004, is a high technology company engaged in reaching, developing, manufacturing and marketing magnets and their application devices with ISO9001，ISO14001，ISO18001 and ISO/TS16949 certificates.

As a supplier of magnetic material and devices, by taking markets as the orientation and customers’ demands as criterion,
U-polemag continuously improves technologies and products, and insists in providing customers with first-class goods and services.

With years of development and accumulation, we can supply high quality neodymium magnets ,samarium cobalt magnets, ceramic magnets and various of customized magnetic application products such as magnetic holders magnetic coupling, motor parts, speaker divers and so on
VR
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 16
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 17
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 18
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 19
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 20
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 21
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 22
Counterbore Hole NdFeB Pot Magnet D16MM /- 0 Tolerance Nickel-plated Ni-Cu-Ni Coating 23
FAQ

Q: May we get a sample of the product? How to ship and how to pay ?

A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.

Q: What magnet materials are available?

A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.

Q:Can you supply custom magnets?

A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .

Q:Do you have a minimum purchase order?

A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .

Q: How many days does it take to ship my order?

A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .

Q:What elements affect the magnet price ?

A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
