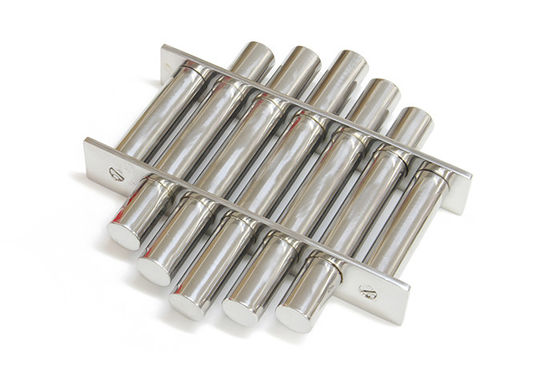

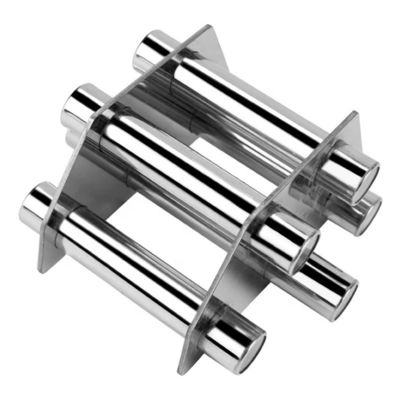

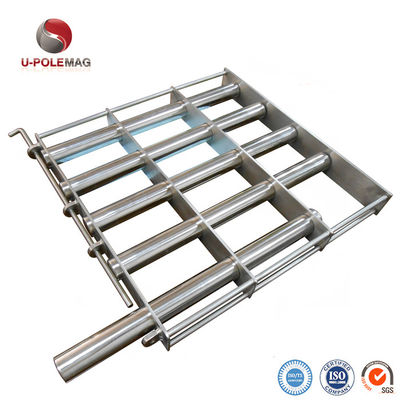

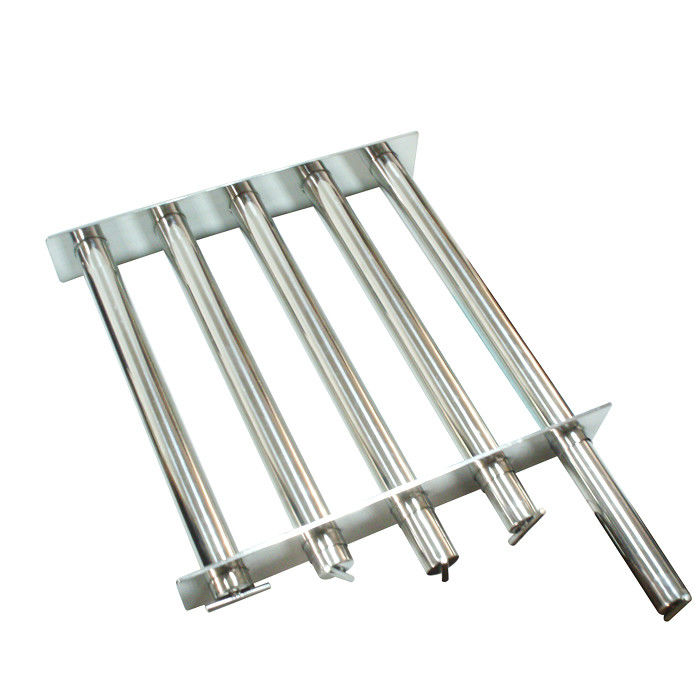

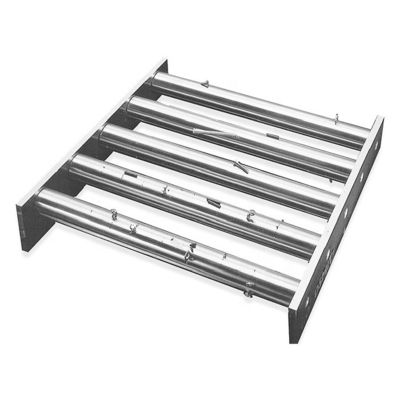

Acceptable Engineering Service Stainless Steel Magnetic Grate for Easy Iron Separation

Large Image : Acceptable Engineering Service Stainless Steel Magnetic Grate for Easy Iron Separation

Product Details:

Place of Origin:	Fujian, China
Brand Name:	U-POLEMAG
Model Number:	MF1000

Payment & Shipping Terms:

Minimum Order Quantity:	20 sets
Price:	$59.99/sets 20-49 sets
Packaging Details:	Standard sea or air package, also can according to clients' mind for Magnetic Grates
Supply Ability:	10000 Set/Sets per Year Magnetic Grates

Contact Now

Acceptable Engineering Service Stainless Steel Magnetic Grate for Easy Iron Separation

Description

Type:	Permanent	Composite:	Neodymium Magnet
Shape:	Bar	Application:	Industrial Magnet
Tolerance:	±0.05mm	Processing Service:	Cutting, Moulding
Grade:	NdFeB	Delivery Time:	8-14 Days
Product Name:	Permanent Magnetic Filter	Bar Material:	304 Or 316 Stainless Steel
Magnet:	Ferrite Or Neodymium	Size:	Customized
Surface Magnetic Field:	12000GS Max	Brand:	OEM
Easy Clean:	Acceptable	MOQ:	1 Set
Lead Time:	15 Days In Generally	Engineering Service:	Acceptable

Products Description

Customized Strong Magnet Separator Bar Filter Tube NdFeB Magnetic Rod for Food Industry

We are delighted to introduce our magnetic rod for food industry. Our magnetic rod is made of high-quality food-grade materials and can be used in various applications in the food industry. Here is a detailed introduction to our product:

Material:

Our magnetic rod is made of high-quality food-grade 316 stainless steel, which meets food safety standards and is non-toxic and odorless, making it an essential component in ensuring food safety. It has excellent corrosion resistance and high-temperature resistance, making it suitable for use in harsh environments.

Function:

Our magnetic rod can be used in various applications in the food industry. For example, during the manufacturing process, the magnetic rod can effectively filter out iron filings and impurities, making the food purer. Additionally, our magnetic rod can also be used during storage and transportation to prevent iron and other metal impurities from entering the food.

Capacity:

Our magnetic rod typically has a diameter of 1 to 2 inches and a length of 24 to 48 inches. However, we can also provide magnetic rods in different sizes as per customer requirements to meet the specific requirements of different food items.

Installation:

Our magnetic rod is easy and convenient to install. Our product provides different installation options such as inserting the rod in a pipeline or hanging it, enabling it to adapt to various application scenarios.

We hope our magnetic rod for food industry can help you improve your food quality and safety. If you have any questions, please feel free to contact us.

Table of Magnet Properties

Size	Stainless	Heat resistance	Surface magnetic flux density	Surface magnetic flux density





Φ10mmX100mm	316L	100℃	600mT	6000 Gauss
Φ10mmX200mm	316L	100℃	600mT	6000 Gauss
Φ10mmX300mm	316L	100℃	600mT	6000 Gauss
Φ16mmX100mm	316L	100℃	1000mT	10000 Gauss
Φ16mmX200mm	316L	100℃	1000mT	10000 Gauss
Φ16mmX300mm	316L	100℃	1000mT	10000 Gauss
Φ19mmX100mm	316L	100℃	1200mT	12000 Gauss
Φ19mmX200mm	316L	100℃	1200mT	12000 Gauss
Φ19mmX300mm	316L	100℃	1200mT	12000 Gauss
Φ20mmX100mm	316L	100℃	1200mT	12000 Gauss
Φ20mmX200mm	316L	100℃	1200mT	12000 Gauss
Φ20mmX300mm	316L	100℃	1200mT	12000 Gauss
Φ22mmX100mm	316L	100℃	1200mT	12000 Gauss
Φ22mmX200mm	316L	100℃	1200mT	12000 Gauss
Φ22mmX300mm	316L	100℃	1200mT	12000 Gauss
Φ23mmX100mm	316L	100℃	1200mT	12000 Gauss
Φ23mmX200mm	316L	100℃	1200mT	12000 Gauss
Φ23mmX300mm	316L	100℃	1200mT	12000 Gauss
Φ25mmX100mm	316L	100℃	1400mT	14000 Gauss
Φ25mmX150mm	316L	100℃	1400mT	14000 Gauss
Φ25mmX200mm	316L	100℃	1400mT	14000 Gauss
Φ25mmX250mm	316L	100℃	1400mT	14000 Gauss
Φ25mmX300mm	316L	100℃	1400mT	14000 Gauss
Φ25mmX350mm	316L	100℃	1400mT	14000 Gauss
Φ25mmX400mm	316L	100℃	1400mT	14000 Gauss
Φ25mmX450mm	316L	100℃	1400mT	14000 Gauss
Φ25mmX500mm	316L	100℃	1400mT	14000 Gauss
Φ25mmX600mm	316L	100℃	1400mT	14000 Gauss
Φ25mmX700mm	316L	100℃	1400mT	14000 Gauss
Φ25mmX800mm	316L	100℃	1400mT	14000 Gauss
Φ25mmX900mm	316L	100℃	1400mT	14000 Gauss
Φ25mmX1000mm	316L	100℃	1400mT	14000 Gauss
Φ28mmX100mm	316L	100℃	1400mT	14000 Gauss
Φ28mmX200mm	316L	100℃	1400mT	14000 Gauss
Φ28mmX300mm	316L	100℃	1400mT	14000 Gauss
Φ32mmX100mm	316L	100℃	1400mT	14000 Gauss
Φ32mmX200mm	316L	100℃	1400mT	14000 Gauss
Φ32mmX300mm	316L	100℃	1400mT	14000 Gauss
Φ38mmX100mm	316L	100℃	1300mT	13000 Gauss
Φ38mmX200mm	316L	100℃	1300mT	13000 Gauss
Φ38mmX300mm	316L	100℃	1300mT	13000 Gauss
Φ50mmX100mm	316L	100℃	1300mT	13000 Gauss
Φ50mmX200mm	316L	100℃	1300mT	13000 Gauss
Φ50mmX300mm	316L	100℃	1300mT	13000 Gauss
Φ76mmX100mm	316L	100℃	1300mT	13000 Gauss
Φ76mmX200mm	316L	100℃	1300mT	13000 Gauss
Φ76mmX300mm	316L	100℃	1300mT	13000 Gauss
Φ100mmX100mm	316L	100℃	1300mT	13000 Gauss
Φ100mmX200mm	316L	100℃	1300mT	13000 Gauss
Φ100mmX300mm	316L	100℃	1300mT	13000 Gauss

Product USE

Shaft

A shaft exclusively for bar magnets. It can be easily attached to a bar magnet.

A combination of a cover case and shaft

Using a combination of a cover case and shaft, it is possible to efficiently attach and detach the magnetic material.

Cone plug for bar magnets

Resistance can be reduced by positioning a bar magnet in the flowing direction and attaching a cone plug on the end.

An example of how to set up bar magnets/ magnet filters

A powerful magnet filter can be made by assembling several bar magnets together using an assembly jig.

Why Choose Us

About U-POLEMAG

U-Polemag Industry Ltd founded in 2004, is a high technology company engaged in reaching, developing, manufacturing and marketing magnets and their application devices with ISO9001，ISO14001，ISO18001 and ISO/TS16949 certificates.

As a supplier of magnetic material and devices, by taking markets as the orientation and customers’ demands as criterion,
U-polemag continuously improves technologies and products, and insists in providing customers with first-class goods and services.

With years of development and accumulation, we can supply high quality neodymium magnets ,samarium cobalt magnets, ceramic magnets and various of customized magnetic application products such as magnetic holders magnetic coupling, motor parts, speaker divers and so on

FAQ

Q: May we get a sample of the product? How to ship and how to pay ?

A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.

Q: What magnet materials are available?

A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.

Q:Can you supply custom magnets?

A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .

Q:Do you have a minimum purchase order?

A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .

Q: How many days does it take to ship my order?

A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .

Q:What elements affect the magnet price ?

A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
