Easy Cleaning and Heating Chocolate with Flange Type Magnetic Filters Made of SUS316L

Large Image : Easy Cleaning and Heating Chocolate with Flange Type Magnetic Filters Made of SUS316L

Product Details:

Place of Origin:	Fujian, China
Brand Name:	U-POLEMAG
Model Number:	N35-N52

Payment & Shipping Terms:

Price:	$1,000.00 - $2,000.00/units
Packaging Details:	Wood carton for Magnetic Filters, Pipeline Magnet, Magnetic Liquid Traps
Supply Ability:	1000 Unit/Units per Month Magnetic Filters, Pipeline Magnet, Magnetic Liquid Traps

Contact Now

Easy Cleaning and Heating Chocolate with Flange Type Magnetic Filters Made of SUS316L

Description

Type:	Permanent	Composite:	Neodymium Magnet
Shape:	Round	Application:	Industrial Magnet, Magnetic Filter For Water,powder Etc
Tolerance:	±1%	Processing Service:	Bending
Grade:	Stainless Steel ,neodymium Magnet	Delivery Time:	22-30 Days
Product Name:	Magnetic Filters, Pipeline Magnet, Magnetic Liquid Traps	Magnet:	Permanent Neodymium Magnet
Housing Material:	SUS316L	Finish Option:	Polish

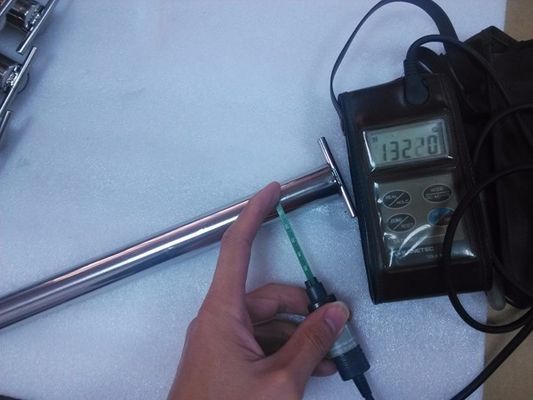

Size:	D219x250 Mm Or Custom	Surface Gauss:	12000 GS Or Higher
Max Working Temperature:	80 Celsius	Flange:	DN100 Or Others
Magnet Bar Qty:	7pcs Or Others	Port:	Xiamen

Product Description

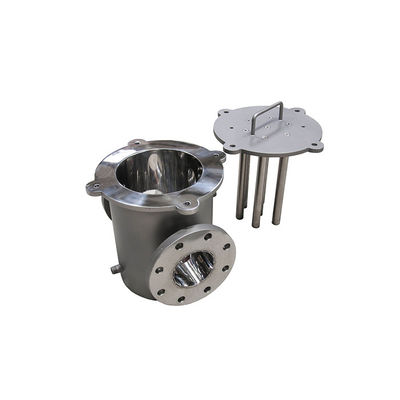

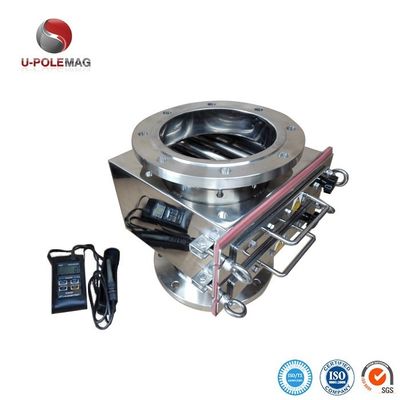

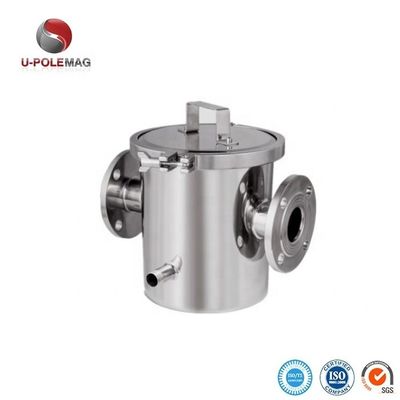

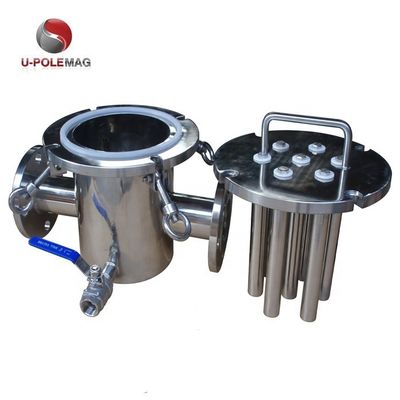

Magnetic Filters, Pipeline Magnet, Magnetic Liquid Traps

Magnetic filter is a method that removes iron particles from products that are in liquid or slurry form. It’s a method that can be used in nearly any environment where ferrous, para-magnetic, and grinding medium contamination is an issue. Magnetic filters make this type of filtration easy and effective. In fact, when the filters become full, they can simply be cleaned and reused.

Product Name	SUS316L Food Grade Chocolate Heating Easy Cleaning Flange Type Magnetic Filters, Pipeline Magnet, Magnetic Liquid Traps
In&outlet connection	1" to 4”
Material	Neodymium Magnets and Stainless steel 304 or 316L
Connection type	Flange
Type	Easy clean
Application	• Liquid Pharma products • Liquid Chemicals • Liquid Food products • Lubricants • Coolants • Hydraulic oils • Slurries

What does magnetic filter do?

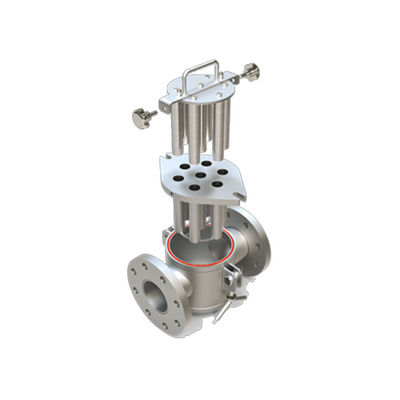

The main part of our magnetic strainer are several tube magnets with standard diameter of 25mm mounted on the lid base. When the fluid passes through these magnetic tubes, the iron impurities will be firmly absorbed on the surface of them to achieve iron particle separating.

U-POLEMAG provides a variety types of Magnetic Liquid Traps to meet your specific requirements.

Advantages of Magnetic Filter

* Strong neodymium magnet

* Quick and easy cleaning

* No Disposal Costs

* Minimal Running Costs

* Doesn’t Hinder Productivity

Application of Magnetic Filter

Magnetic Liquid Trap is widely used in food industries, powder handling, central heating system, etc.
