Product Details:
|
| Type: | Permanent | Composite: | Neodymium Magnet |
|---|---|---|---|
| Shape: | Cup Shape | Application: | Industrial Magnet |
| Tolerance: | ±1% | Grade: | NdFeb |
| Delivery Time: | 22-30 Days | Product Name: | Neodymium Pot Magnet With Screw Socket D60mm With 160kg Force |
| Outer Material: | Q235 Steel | Magnet Material: | Round NdFeB Magnet |
| Coating: | Nickel | Size: | D60x15mm Or Other Magnet Size |
| Breakaway: | 160kg Or Higher Force | Net Weight: | 340g |
| Screw: | #8 | Precise System: | +/- 0.1mm |
| Used: | Magnetic Holdings, Magnetic Fishing, Magnetic Mounting | Port: | Xiamen |

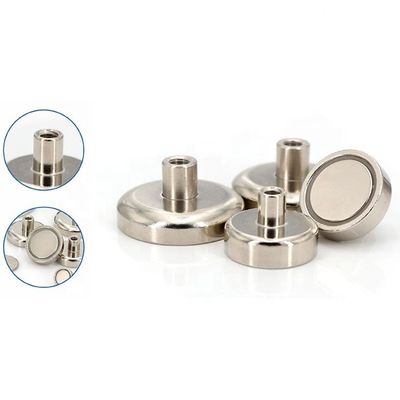

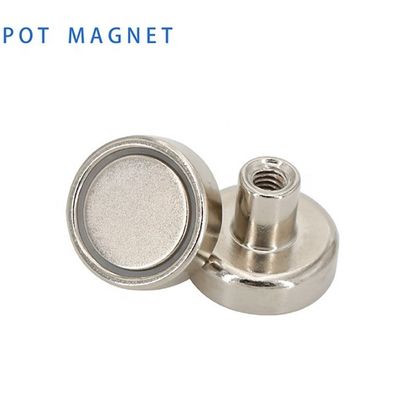

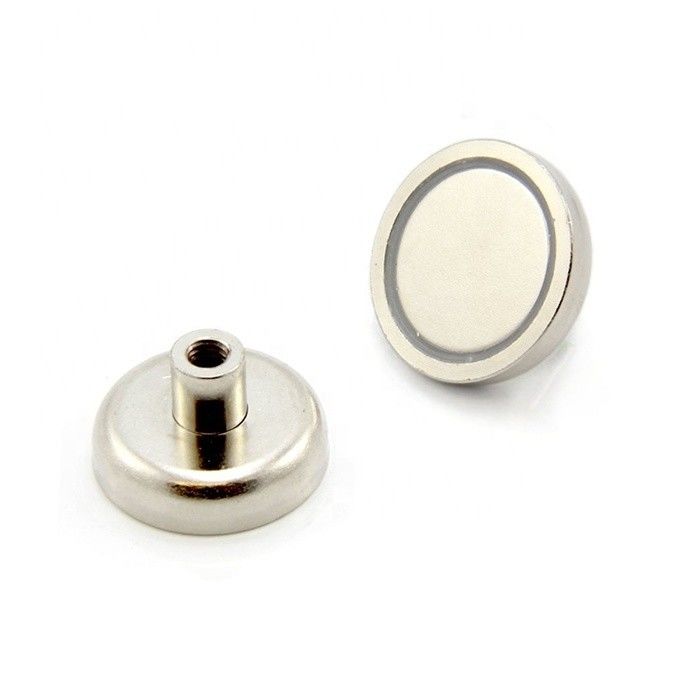

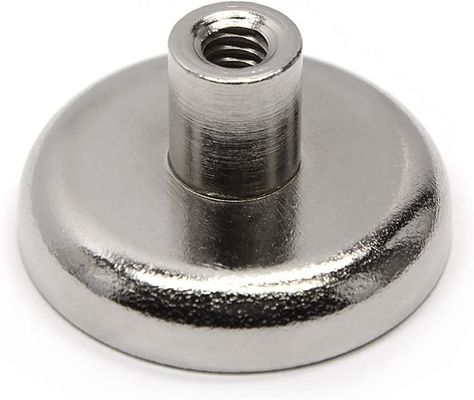

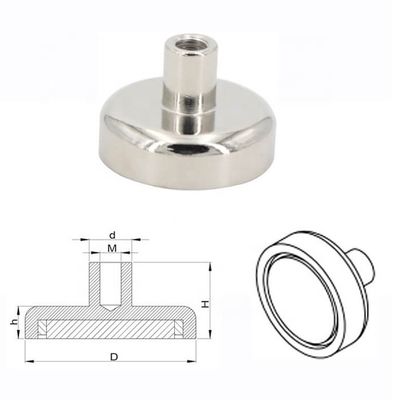

Neodymium Pot magnet with screw socket D60mm with 160kg force, is made of a super strong neodymium magnet encased inside a chrome plated steel cup. The neodymium magnet is bonded inside of the cup with adhesives. This design forms a magnetic circuit which triples the holding force to 200kg! At the same time, the steel cup also protects the magnet from being damaged when frequently used. The counter sunk hole on the magnet is provided for the convenience of applications.
Features:
* These magnets have only one surface of magnetic attraction. This type of construction prevents further spread of magnetic field. Due to this, other items or machine parts in the vicinity of the pot magnets do not become magnetized.Applications:

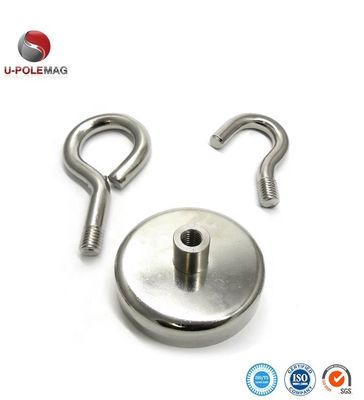

This pot magnet can be used for magnetic holdings, magnetic fishing, magnetic mounting, car signs, magnetic devices and much more.
Precautions:
* The permanent pot magnets must not be exposed to radioactive radiations for longer duration as it might effect their magnetic strength.
* This can work within permissible temperature. If these magnets are used beyond permissible temperature limit it might again affect their magnetic strength.
Product Name | Neodymium Pot magnet with screw socket D60mm with 160kg force |
Material | Q235 steel +NdFeB magnet |
Coating | Nickel |
Size | D60x15m-M8 or other size |
Breakaway | 160kg or higher |
Advantage | Large, strong Neodymium (N35) pot magnets with a M8 threaded collar on the non-magnetic face. Magnetism is concentrated on one face to provide the maximum holding force. |
Used | metal and steel industry, tool shops, used to position ferrous-magnetic work pieces |
Packing Details : regular carton package for Neodymium POT Magnet
Delivery Details : In generally 30 days for batch order
Our Service : Prompt response ,Customized package , Amazon FBA
A: We are a professional manufacturer of neodymium magnets and magnetic assemblies over 20 years.
A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
