Customized Housing Permanent Bullet Magnetic Separator with High Separation Efficiency

Large Image : Customized Housing Permanent Bullet Magnetic Separator with High Separation Efficiency

Product Details:

Place of Origin:	Fujian, China
Brand Name:	U-POLEMAG
Certification:	ISO9001:2000
Model Number:	Magnet Separator

Payment & Shipping Terms:

Price:	$1,800.00/pieces 1-49 pieces
Packaging Details:	Safety in carton for Custom Permanent Housed Bullet Magnetic Separator
Supply Ability:	50 Set/Sets per Month Bullet Magnetic Separator

Contact Now

Customized Housing Permanent Bullet Magnetic Separator with High Separation Efficiency

Description

Type:	Permanent	Composite:	Neodymium Magnet
Shape:	Bullet	Application:	Industrial Magnet, Gold/Copper/Alluvial Gold Washing/Ore/Mining/Tungsten/Iron
Tolerance:	±3%	Processing Service:	Welding, Cutting, Punching
Grade:	Ndfeb+stainless Steel	Delivery Time:	22-30 Days
Product Name:	Custom Permanent Housed Bullet Magnetic Separator	Magnet Material:	Permanent Magnet
Outer Material:	Stainless Steel	Sizes:	Customized As Drawing
Surface Gauss:	12000 Gauss Or Higher	Cleaning Style:	Self Cleaning
Working Temperature:	80 Degree Celcius	ODM/OEM:	Accepetable
Port:	XIAMEN

Recommend Products

Product Description

Custom Permanent Housed Bullet Magnetic Separator

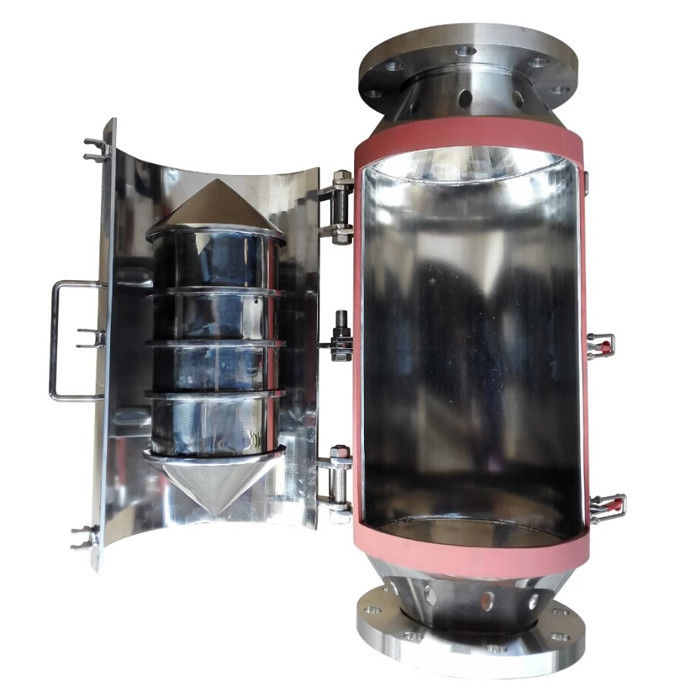

Bullet magnets have a large bullet-shaped magnetic core in the center of the product flow which ensures optimal contact between the magnetic field and the material flow. They filter medium to large ferrous contaminants from high-capacity coarse bulk streams. The magnet shape ensures a good flow at a high separation efficiency.

The permanent magnetic versions are to be cleaned manually. Bullet magnets are used in the bulk, animal feed, plastics, ceramics and recycling industries, among others.

Advantages:

1. Improves product purity

2. Automatic separation of magnetic and non-magnetic material 3. Simple cleaning process

4. High surface gauss(3000GS-15000Gs optional)

5. Bullet magnet sizes can be customized

How the magnetic separator work?

Custom Permanent Housed Bullet Magnetic Separator

Because the magnetic core is located in the middle of the product stream, the bullet magnet has a very high separation yield. The round shape of the housing and the magnetic core (with a 60° top cone) ensures continuous flow and good distribution of the product stream. The product then passes three powerful magnetic fields, where guide strips redirect any product near the outer walls back toward the magnetic core.

The magnets attract passing ferrous particles. The captured particles stick to 1 of the 3 magnet poles, while the purified product flows further.

How does the cleaning / iron discharging work?

You have to remove the captured ferrous particles manually. After having stopped the product flow, you can open the door. Then turn the magnet around its own axis, while wiping the magnet clean.

Custom made

We are able to custom made the size and the surface gauss according your device.

Over 10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator

More information, click here

Wide Range Application
Over 10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator

Bullet magnet is mainly installed in the transportation pipeline system, which can remove iron filings and large pieces of
ferromagnetic impurities from dry gravity materials or gas-carrying animal materials. It is widely used in flour processing,
mills, grain processing, material processing, Kaolin or talc powder processing and other places.

Packing & Delivery

Safety in Wooden Case

The actual shipment shall prevail

Standard package

The actual shipment shall prevail

Delivery choice10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator

We usually ship by DHL, UPS or Fedex. It usually takes 3-7 workdays to arrive.Airline and sea shipping also optional.

Our Company

Customer Photos

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time of magnetic separator?

A: About 20 days, it is according to quantity.

Q: Do you have any MOQ limit for magnetic separator?

A: No. But different request and quantity would affect the price.

Q: Do you test all your goods before delivery?

A: We have 100% test before delivery

Q: How can I get the quotation IN TIME?

A: For a timely and responsible quotation, please inform us more details as following:
1. What is outer Material of stainless steel? 304 grade or 316 grade.
2. What is the Size of magnetic separator?

3. And the Surface Gauss?

We would make drawing for your confirmation again before production.
