Over 10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator

Large Image : Over 10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator

Product Details:

Place of Origin:	Fujian, China
Brand Name:	U-POLEMAG
Certification:	ISO9001:2000
Model Number:	D150-1240 magnetic roller drum separator

Payment & Shipping Terms:

Price:	$1,000.00/pieces 1-99 pieces
Packaging Details:	Safety in Wooden Case for Over 10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator
Supply Ability:	50 Set/Sets per Month Magnet Roller

Contact Now

Over 10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator

Description

Type:	Permanent	Composite:	Neodymium Magnet
Shape:	Bar	Application:	Industrial Magnet, Gold/Copper/Alluvial Gold Washing/Ore/Mining/Tungsten/Iron
Tolerance:	±0.05mm	Processing Service:	Welding, Cutting, Punching
Grade:	Ndfeb+stainless Steel	Delivery Time:	22-30 Days
Product Name:	Magnet Roller For Conveyor Belt Magnetic Drum Separator	Magnet Material:	Neodymium Magnet
Outer Material:	Stainless Steel	Sizes:	D150x1240mm Or Customized Magnet Roller
Surface Gauss:	10000 Gauss, 14000 Gauss Etc.	Cleaning Style:	Self Cleaning
Iron Removing Rate:	Over 99.9%	ODM/OEM:	Accepetable
Port:	XIAMEN

Product Description

Over 10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator

Permanent magnetic pulleys are ideal magnetic products used as head pulleys in belt conveyors. These pulleys offer superior removal of ferrous contamination like nails, spikes, nuts, bolts, cans, and wire from material conveyor with maintenance-free operation. Whatever your application is, a magnet is a low-cost way to remove that unwanted ferrous metal from your waste stream. They require very little maintenance and can last for years with proper care.

Advantages:

1. Improves product purity

2. Automatic separation of magnetic and non-magnetic material 3. Prevents damage to expensive downstream machinery 4. Easy installation

5. High surface gauss

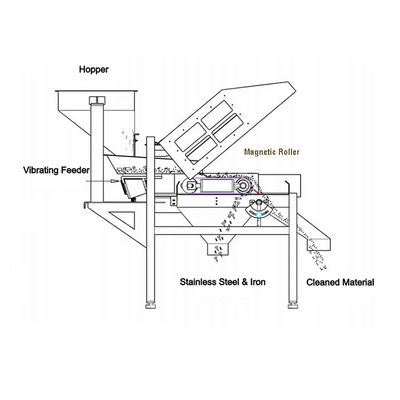

How the magnetic roller work?

Over 10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator

As the product stream reaches the conveyor discharge point, ferrous metal is attracted to the pulleys magnetic field and held to the belt. As the belt moves around the pulley, the non-magnetic material is discharged in a normal trajectory, however, the ferrous metal is still held to the belt. When the belt passes out of the magnetic field, the magnetic material drops off into a separate chute or bin to the rest of the product. A non-magnetic splitter may be installed to separate the two discharges. Ferrous metals commonly extracted from the product stream include nails, nuts, bolts, wire, cans, screws, tools, and so on.

Custom made

We are able to custom made the size and the surface gauss according your device.

Over 10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator

Wide Range Application
Over 10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator

The magnetic roller can be used in Waste stream feed & grain, mining, recycling applications, cement, coal handling plant salt processing industries, glass, paper, refractory, minerals (e.g. Bauxite) ect.

Recommend Products

More information, click here

Packing & Delivery

Safety in Wooden Case

Standard package

Delivery choice10000 Gauss Industrial Permanent Custom Rotary Magnet Roller for Conveyor Belt Magnetic Drum Separator

We usually ship by DHL, UPS or Fedex. It usually takes 3-7 workdays to arrive.Airline and sea shipping also optional.

Our Company

Customer Photos

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time of magnetic roller separator?

A: About 20 days, it is according to quantity.

Q: Do you have any MOQ limit for magnetic roller separator?

A: No. But different request and quantity would affect the price.

Q: Do you test all your goods before delivery?

A: We have 100% test before delivery

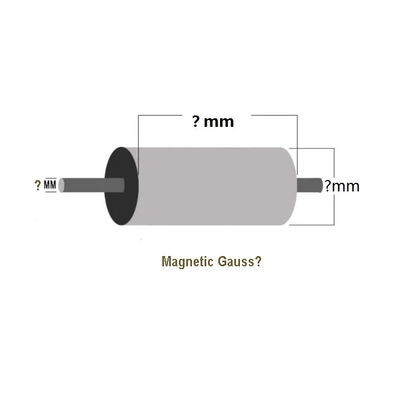

Q: How can I get the quotation IN TIME?

A: For a timely and responsible quotation, please inform us more details as following:
1. What is Diameter of the Roller/Pulley
2. What is the Length of the Roller/Pulley? Or what is the belt width?
