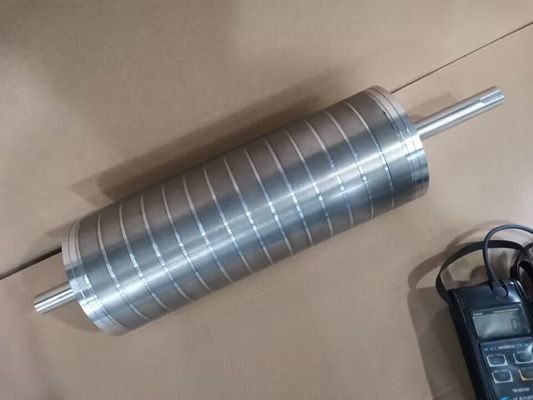

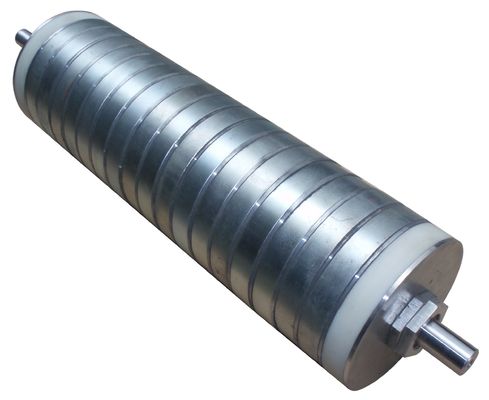

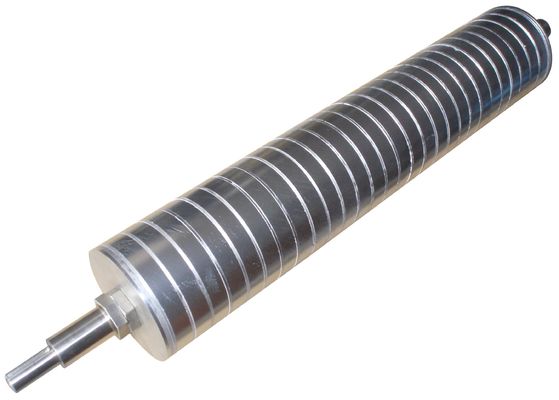

High Gauss Magnetic Pulley for Mining Industry 14000 Gauss and Fast Sample Lead Time

Large Image : High Gauss Magnetic Pulley for Mining Industry 14000 Gauss and Fast Sample Lead Time

Product Details:

Place of Origin:	Fujian, China
Brand Name:	U-POLEMAG, U-POLEMAG
Certification:	ISO9001:2000
Model Number:	D150-400

Payment & Shipping Terms:

Price:	$1,000.00/pieces 1-99 pieces
Packaging Details:	Customized Super Strong Sintered N52 Neodymium Magnet Standard Carton or Customized

Contact Now

High Gauss Magnetic Pulley for Mining Industry 14000 Gauss and Fast Sample Lead Time

Description

Type:	Permanent	Composite:	Neodymium Magnet
Shape:	Bar	Application:	Industrial Magnet
Tolerance:	±0.05mm, ±1%, +/-0.1mm	Processing Service:	Welding, Cutting, Bending, Cutting
Grade:	Ndfeb	Delivery Time:	8-14 Days
Product Name:	Magnetic Conveyor Roller Magnetic Pulley	Main Materials:	NdFeB
Sizes:	Customized	Delivery:	By Sea/By Air,Door To Door
Sample Lead Time:	10 Days	ODM/OEM:	Available
Port:	XIAMEN,SHANGHAI

Product Description

Permanent magnetic pulleys are ideal magnetic products used as head pulleys in belt conveyors. These pulleys offer superior removal of ferrous contamination like nails, spikes, nuts, bolts, cans, and wire from material conveyor with maintenance-free operation. Whatever your application is, a magnet is a low-cost way to remove that unwanted ferrous metal from your waste stream. They require very little maintenance and can last for years with proper care.

Advantages:

1. Improves product purity

2. Automatic separation of magnetic and non-magnetic material 3. Prevents damage to expensive downstream machinery 4. Easy installation

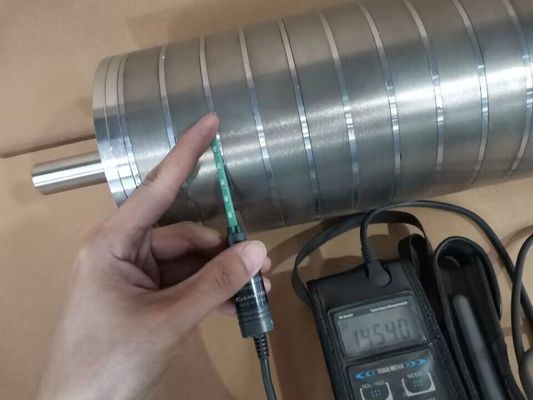

5. High surface gauss

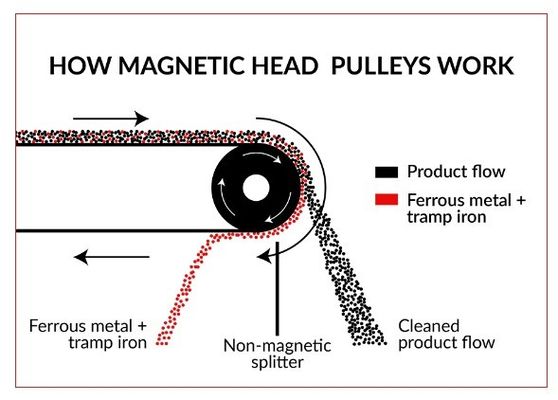

How the magnetic roller work?

As the product stream reaches the conveyor discharge point, ferrous metal is attracted to the pulleys magnetic field and held to the belt. As the belt moves around the pulley, the non-magnetic material is discharged in a normal trajectory, however, the ferrous metal is still held to the belt. When the belt passes out of the magnetic field, the magnetic material drops off into a separate chute or bin to the rest of the product. A non-magnetic splitter may be installed to separate the two discharges. Ferrous metals commonly extracted from the product stream include nails, nuts, bolts, wire, cans, screws, tools, and so on.

Custom made

We are able to custom made the size and the surface gauss according your device.

Wide Range Application

The magnetic roller can be used in Waste stream feed & grain, mining, recycling applications, cement, coal handling plant salt processing industries, glass, paper, refractory, minerals (e.g. Bauxite) ect.

Recommend Products

More information, click here

Packing & Delivery

Our Company

Factory

Workshop

Warehouse

Our Certifications

Team

Customer feedback

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
