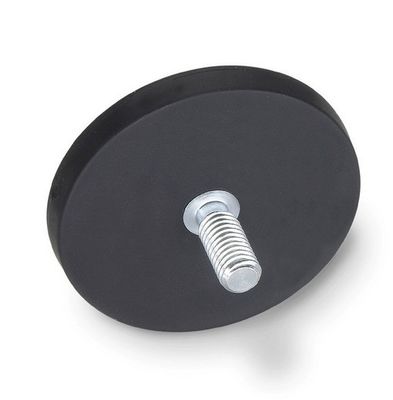

D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape

D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape

Large Image :  D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: HTN01-88
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $3.69/pieces 100-499 pieces
Packaging Details: 45kg Pull Force Diameter 88mm Rubber Coated Magnet Base With Outer Thread

D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape

Description
Type: Permanent Composite: Neodymium Magnet
Shape: Round Application: Industrial Magnet
Tolerance: ±1% Grade: NdFeb+rubber
Product Name: Rubber Coated Magnet Base Magnet: Neodymium Magnet
Size: D88x8mm Pull Force: 45KG
Outside Treadment: Rubber Coated Thread: M8
Poles: 12 Poles Quality System: ISO9001:2000
Max Working Temperature: 80 Centigrade Sample Lead Time: 15-20 Days
Port: XIAMEN

Rubber coated POT manget give great durability and high friction to keep them from slipping on surfaces. The rubber coating can also protect against the liguids and chipping.

We can supply different size and pull force according to customers' request
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape 0
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape 1
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape 2
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape 3
Detailed Images

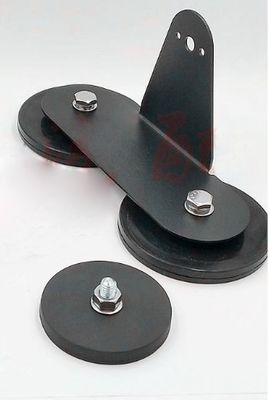

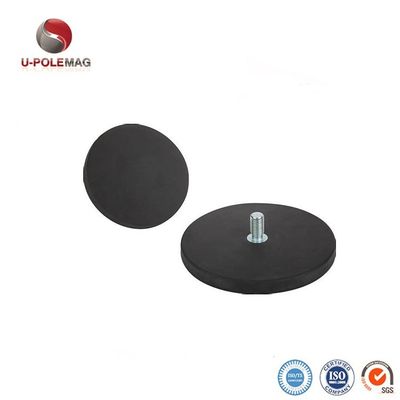

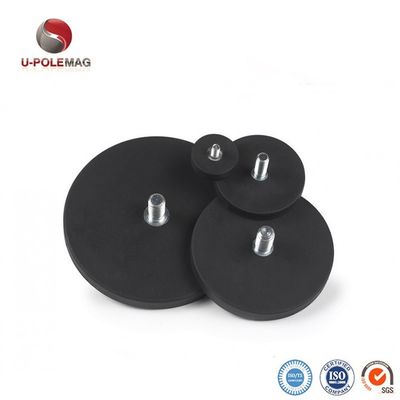

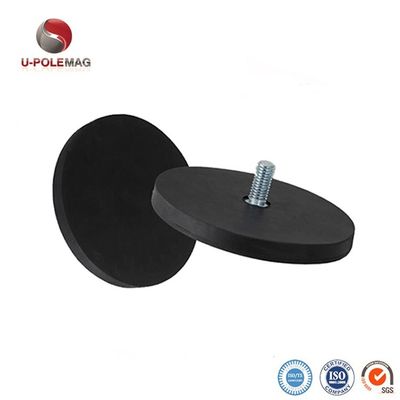

Rubber coated neodymium pot magnets are strong and durable magnetic assemblies with a threaded center hole (internal female thread) and protective rubber coating. Made with strong neodymium disc magnets attached to a flat steel disc and coated with black isoprene rubber which leaves no marks and prevents surfaces from scratching. The protective rubber coating protects magnets from corrosion or oxidation for sustained use in outdoor environments. It also prevents magnets from chipping easily and provides more slip-resistance than other types of coated or uncoated magnets.

Rubber coated magnets are high in magnetic strength and weatherproof so they are ideal for indoor and outdoor applications where high magnetic strength is required. They are frequently used for holding, mounting and fixing purposes, from mounting lights or fixtures to equipment repair, holding tools and organizing items in warehouses, workstations and outdoor areas.

  • Strong pull force, waterproof, durable, high traction, corrosion resistant, temperature resistant, magnets do not easily chip.
  • Constructed with Strong Neodymium magnet encased in a steel structure & coated with a protective rubber coating.
  • Internal Female Thread accommodates standard fasteners & attachments.
  • NdFeB Magnets are axially magnetized (through the thickness).
  • Isoprene Black Rubber Coating is approx. 0.03” thick.
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape 4
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape 5

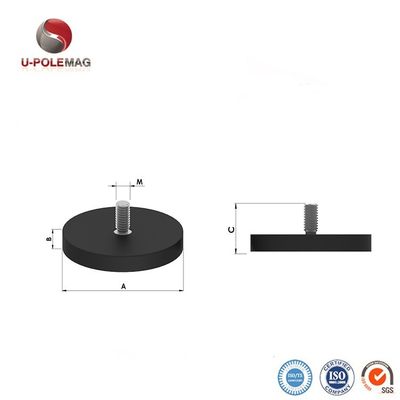

Size Information
Size Chart of This Design
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape 6
Item Code
D (mm)
H (mm)
L (mm)
M (mm)
Pull Force (kg)
HTN01-22
22
6
12.5
M4
4.5
HTN01-22B
22
5.5
15.5
M4
4.3
HTN01-42C
44
9
19.6
M8
20
HTN01-43
43
6
21
M6
9.5
HTN01-43C
43
6
30.8
1/4-20
9.5
HTN01-66B
66
8
23
M6
20
HTN01-88
88
8.2
20
M8
45
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape 7
Related Products
Packing&Shipping
We hare rich experience in packing , we can supply the best solution according to the actual
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape 8
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape 9
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape 10
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape 11
