Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature

Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature

Large Image :  Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature

Product Details:
Place of Origin: Fujian, China
Brand Name: U-POLEMAG
Model Number: HTN01-88
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $0.15 - $4.90/pieces
Packaging Details: 45kg Pull Force Diameter 88mm Rubber Coated Magnet Base With Outer Thread
Contact Now

Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature

Description
Type: Permanent Composite: Neodymium Magnet
Shape: Round Application: Industrial Magnet
Tolerance: ±1% Processing Service: Cutting, Punching, Moulding
Grade: NdFeb+rubber Delivery Time: 8-14 Days
Product Name: Rubber Coated Magnet Base Magnet: Neodymium Magnet
Size: Customized Pull Force: 45KG
Outside Treadment: Rubber Coated Thread: M8
Poles: 12 Poles Quality System: ISO9001:2000
Max Working Temperature: 80 Centigrade Sample Lead Time: 15-20 Days
Port: XIAMEN

Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 0
Products Description
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 1
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 2
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 3

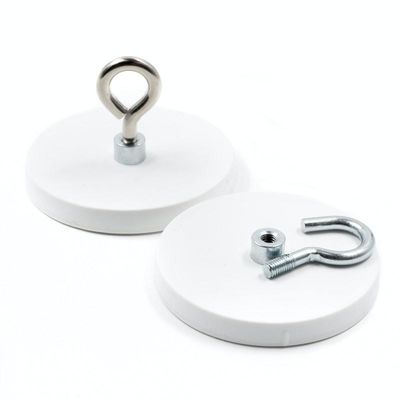

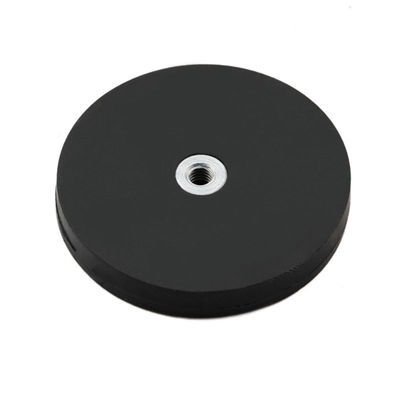

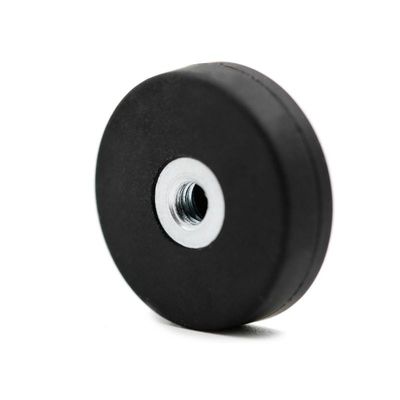

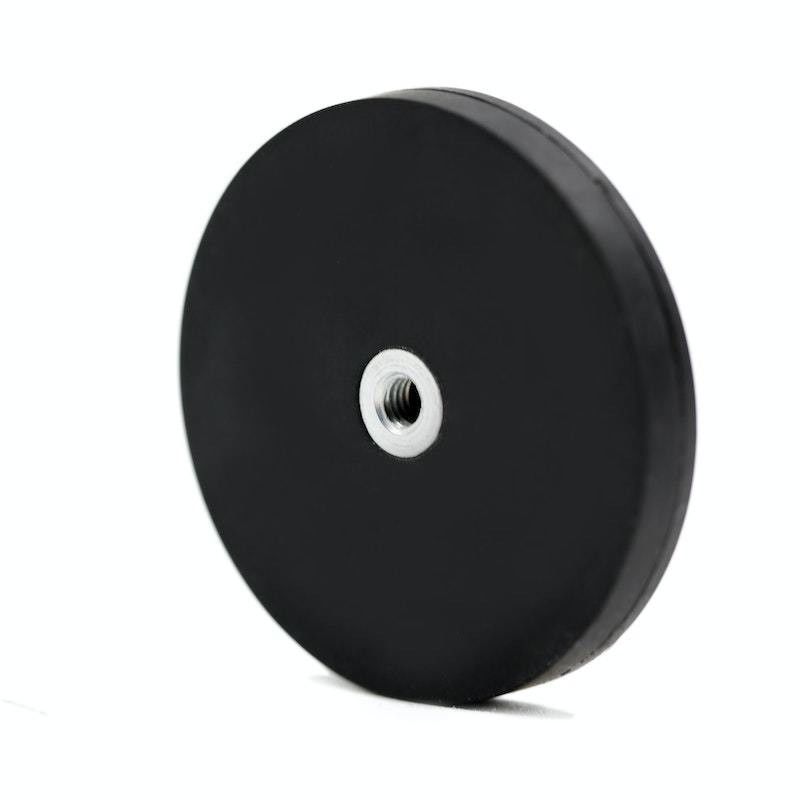

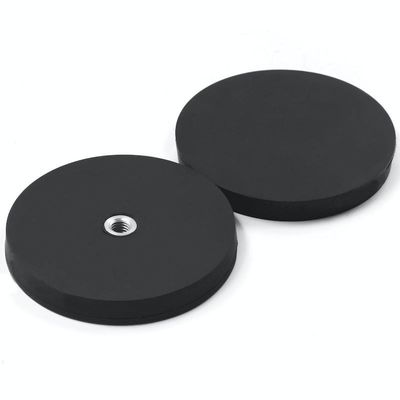

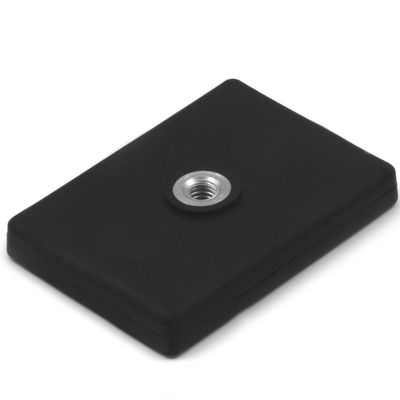

Rubber coated Pot Magnet They can be used in a variety of ways, for example, as gripper magnets for vehicle wrapping. The handles also make it easier to remove strong magnets from ferromagnetic surfaces. The rubber coating of the magnet system protects delicate surfaces from scratches and increases the load capacity in shear direction.
Table of Magnet Properties
Rubber coated POT manget give great durability and high friction to keep them from slipping on surfaces. The rubber coating can also protect against the liguids and chipping.
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 4
Item Code
D (mm)
H (mm)
L (mm)
M (mm)
Pull Force (kg)
Working Temperature (°C)
HTN01-22
22
6
12.5
M4
4.5
80
HTN01-22B
22
5.5
15.5
M4
4.3
80
HTN01-42C
44
9
19.6
M8
20
80
HTN01-43
43
6
21
M6
9.5
80
HTN01-43C
43
6
30.8
1/4-20
9.5
80
HTN01-66B
66
8
23
M6
20
80
HTN01-88
88
8.2
20
M8
45
80
HTN01-89.3
89.3
8.5
33.6
1/4-20
47
80
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 5
Item Code
D (mm)
H (mm)
d (mm)
Pull Force (kg)
Working Temperature (°C)
HVN01-02
45
6
5.5
9
80
HVN01-10
22
6
8.2
3.5
80
HVN01-54
30
9
5.5
3
80
HVN01-54A
30
9
6
3
80
HVN01-54B
30
6
5.5
1.5
80
HVN01-87
60
7.5
5.5
22
80
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 6
Item Code
D (mm)
H (mm)
M (mm)
Pull Force (kg)
Working Temperature (°C)
HTN08-22C
22
6
M4
4.5
80
HTN08-31
31
7
M5
8.5
80
HTN08-31A
31
6
M5
8
80
HTN08-36C
36
7
M4
15
80
HTN08-43C
43
6
M4
8.5
80
HTN08-66A
66
8
M4
18
80
HTN08-66B
66
8
#1/4-20
18
80
HTN08-66C
66
8.5
M6
18
80
HTN08-66D
66
8
M6
18
80
HTN08-66F
66
8
M4
18
80
HTN08-88A
88
8.2
M8
42
80
HTN08-88B
88
8.2
M6
42
80
HTN08-88C
88
8.5
M6
42
80
HTN08-89.3C
89.3
8.5
M6
42
80
HTN08-89.3D
89.3
8.5
M5
42
80
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 7
Item Code
D (mm)
H (mm)
d (mm)
L (mm)
M (mm)
Pull Force (kg)
Working Temperatur (°C)
HTN08-22
22
6
8
11.5
M4
4.5
80
HTN08-43A
43
6
8
10.5
M4
8.5
80
HTN08-66
66
8.5
10
15
M5
18
80
HTN08-88
88
8.2
12
17
M6
42
80
HTN08-89.3
89.3
8.5
12
8.5
1/4-20
49
80
Application Fields
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 8
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 9
Why Choose Us
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 10
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 11
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 12
About U-POLEMAG
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 13
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 14
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 15
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 16
U-Polemag Industry Ltd founded in 2004, is a high technology company engaged in reaching, developing, manufacturing and marketing magnets and their application devices with ISO9001，ISO14001，ISO18001 and ISO/TS16949 certificates.

As a supplier of magnetic material and devices, by taking markets as the orientation and customers’ demands as criterion,
U-polemag continuously improves technologies and products, and insists in providing customers with first-class goods and services.

With years of development and accumulation, we can supply high quality neodymium magnets ,samarium cobalt magnets, ceramic magnets and various of customized magnetic application products such as magnetic holders magnetic coupling, motor parts, speaker divers and so on
VR
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 17
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 18
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 19
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 20
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 21
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 22
Powerful Neodymium Magnet with Screw Thread 80 Centigrade Max Working Temperature 23
FAQ

Q: May we get a sample of the product? How to ship and how to pay ?

A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production , we will quote samples fee and we can accept T/T, Paypal , Western Union , Alibaba trade assurance for payment.We will send the sample to you by DHL express.

Q: What magnet materials are available?

A: There are many different magnet materials available, which we are able to provide. These include neodymium, samarium cobalt,alnico, ferrite, bonded neodymium, bonded samarium cobalt, bonded ferrite, injection molded neodymium, injection molded samarium cobalt, rubber stripping, and FeCrCu. If there is another material you wish to procure, please contact us.

Q:Can you supply custom magnets?

A: Yes, we have the capability to produce magnets to your specification in NdFeB, SmCo, AlNiCo, Ferrite, and rubberized magnet materials. You can contact us for more details .

Q:Do you have a minimum purchase order?

A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .

Q: How many days does it take to ship my order?

A: In generally, the sintering NdFeB and SmCo magnet production time is 15-25days, cast AlNiCo will take 25-30days , the magnetic assemblies will be about 30-40 days for your reference , the exact time need to be checked before the order .

Q:What elements affect the magnet price ?

A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2: Grade (Magnetic Property)
3: Plating(Coating)
4:Magnetizing Orientation
5:Quantity
